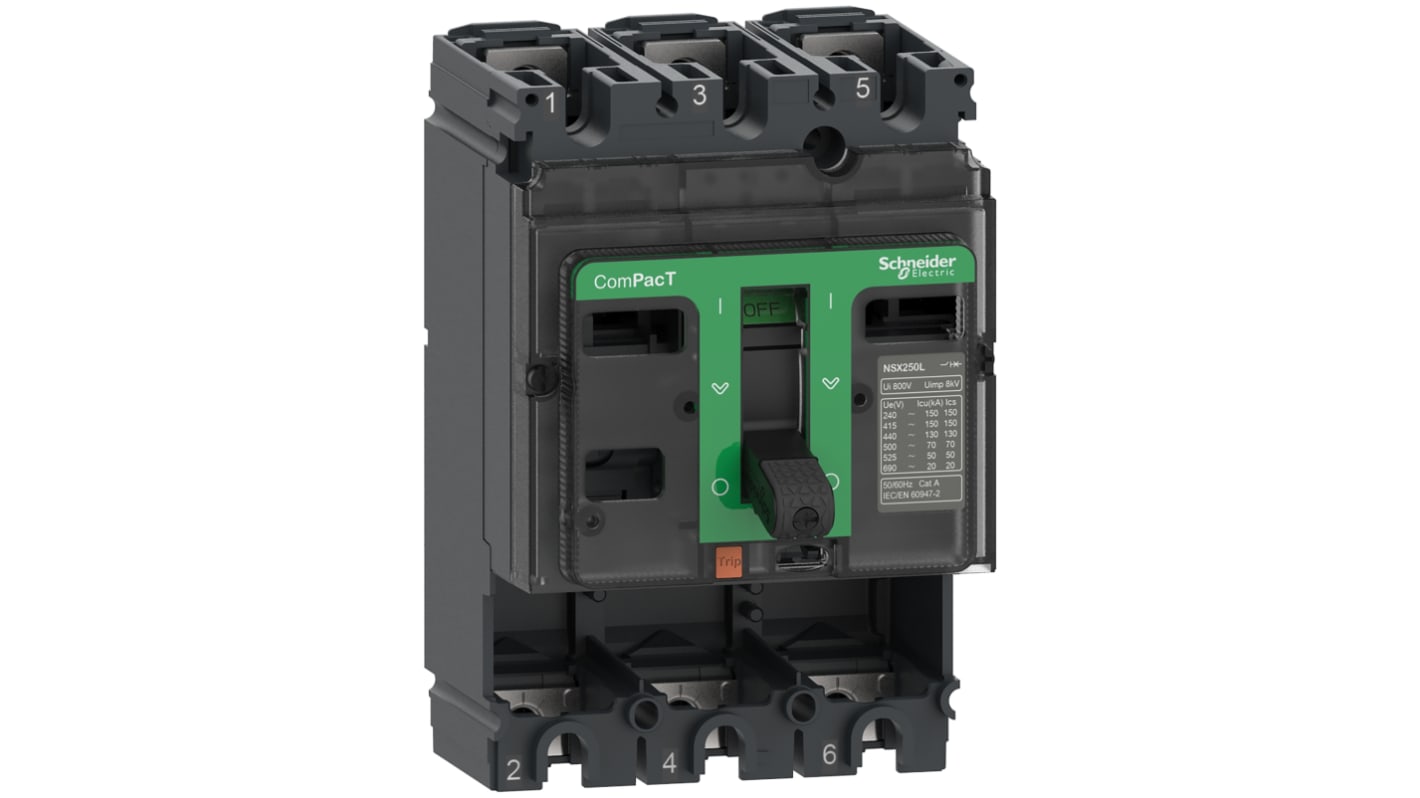

Schneider Electric, ComPact NSX, ComPacT NSX250F Molded Case Circuit Breaker 3-Pole 250A, Breaking Capacity 36 kA, Fixed
- RS Stock No.:
- 254-6352
- Mfr. Part No.:
- C25F3
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£451.84
(exc. VAT)
£542.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £451.84 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 254-6352
- Mfr. Part No.:
- C25F3
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact NSX | |
| Series | ComPacT NSX250F | |
| Number of Poles | 3 | |
| Current Rating | 250A | |
| Breaking Capacity | 36kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 440V | |
| Terminal Type | Front | |
| Height | 161mm | |
| Depth | 86mm | |
| Width | 105mm | |
| Standards/Approvals | IEC 60664-1, IEC 62262, EN/IEC 60947-2, IEC 60529, UL 508, CSA | |
| Better World Product | Yes | |
| Better World Verification | Byggvarubedömningen | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact NSX | ||
Series ComPacT NSX250F | ||
Number of Poles 3 | ||
Current Rating 250A | ||
Breaking Capacity 36kA | ||
Mount Type Fixed | ||
Rated AC Voltage 440V | ||
Terminal Type Front | ||
Height 161mm | ||
Depth 86mm | ||
Width 105mm | ||
Standards/Approvals IEC 60664-1, IEC 62262, EN/IEC 60947-2, IEC 60529, UL 508, CSA | ||
Better World Product Yes | ||
Better World Verification Byggvarubedömningen | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- PL
Schneider Electric ComPacT NSX250F Series MCCB, 250A Current Rating , 3 Poles - C25F3
This MCCB, part of the ComPacT NSX range, is designed for efficient electrical distribution. With a current rating of 250 A and a breaking capacity of 35kA , this 3-pole MCCB is Ideal for varied applications in industrial settings. Its fixed mounting style allows for straightforward installation, making it a practical choice for professionals in the electrical and automation industries.
Features & Benefits
• Suitable for currents up to 250 A to accommodate heavy load requirements
• 3 pole configuration ensures effective circuit protection
• High breaking capacity offers reliable fault interruption
• Fixed mounting design simplifies installation and maintenance
• Optimised for compatibility with various electrical distribution equipment
• Designed for commercial applications, enhancing operational efficiency
• 3 pole configuration ensures effective circuit protection
• High breaking capacity offers reliable fault interruption
• Fixed mounting design simplifies installation and maintenance
• Optimised for compatibility with various electrical distribution equipment
• Designed for commercial applications, enhancing operational efficiency
Applications
• Used in industrial circuit breakers for seamless power management
• Ideal for protecting motors and transformers in commercial settings
• Utilised with automation systems for reliable electrical control
• Protects electrical infrastructure in manufacturing environments
• Ideal for protecting motors and transformers in commercial settings
• Utilised with automation systems for reliable electrical control
• Protects electrical infrastructure in manufacturing environments
What protection capabilities does this MCCB offer against overloads?
The device features a robust breaking capacity of 35kA, enabling it to safely interrupt current during overload situations, which helps prevent potential damage to connected equipment.
How does the fixed mounting style enhance its usability?
The fixed mounting design streamlines installation and ensures stability during operation, reducing the risk of movement or disconnection over time.
Can this MCCB be integrated into existing electrical systems?
Yes, its specifications allow for easy integration into various electrical distribution setups, providing effective protection and control.
What are the Ideal environments for using this circuit breaker?
It is designed for commercial and industrial applications, making it suitable for environments such as factories, workshops, and automation facilities.
How does the 3-pole design benefit circuit protection?
This design allows for balanced load distribution across phases, ensuring overall system reliability and reducing the risk of phase failure.
