ABB, Tmax XT MCCB 4P 100A, Fixed Mount
- RS Stock No.:
- 236-6505
- Mfr. Part No.:
- 1SDA067962R1 XT2L 160 Ekip LSI 100A FF
- Brand:
- ABB
Available to back order for despatch 19/08/2024
Price Each
£1,097.07
(exc. VAT)
£1,316.48
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £1,097.07 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 236-6505
- Mfr. Part No.:
- 1SDA067962R1 XT2L 160 Ekip LSI 100A FF
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

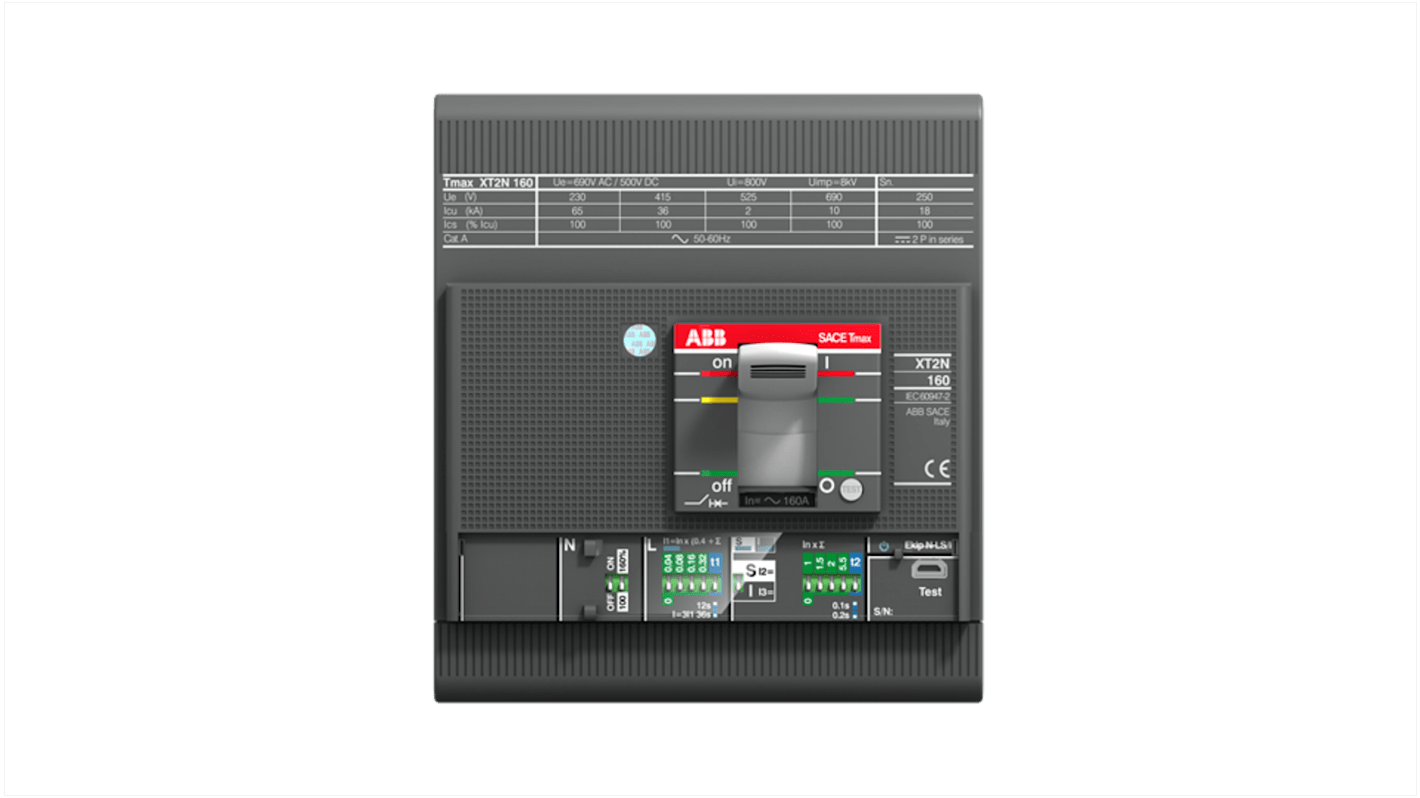

The ABB Moulded case circuit breaker Tmax XT2L comes with 4 poles. It has front terminals and solid state release type in Ekip LSI. It comes with rated uninterrupted current of 160A.
Rated current (In):100 A
Rated frequency (f): 50/60 Hz
Rated voltage (Ur): 690 V
Rated impulse withstand voltage (Uimp): 8 kV
Rated frequency (f): 50/60 Hz
Rated voltage (Ur): 690 V
Rated impulse withstand voltage (Uimp): 8 kV
Specifications
Attribute | Value |
|---|---|
| Range | Tmax XT |
| Series | 1SDA06 |
| Number of Poles | 4 |
| Current Rating | 100A |
| Mounting Style | Fixed |
| Better World Product | Yes |
| Better World Claim | Designed for disassembly |
