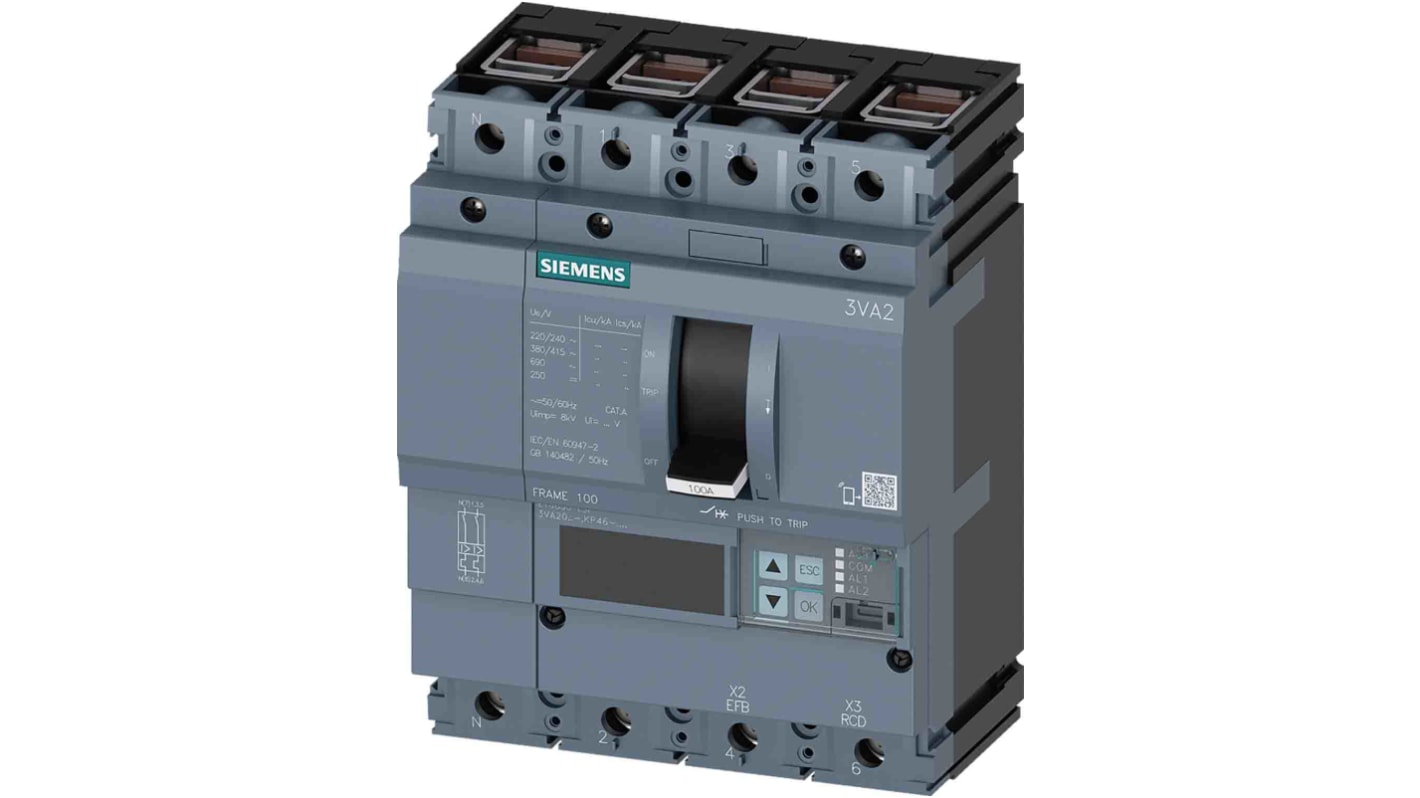

Siemens, SENTRON MCCB 4P 40A, Breaking Capacity 55 kA, Fixed Mount
- RS Stock No.:
- 210-1705
- Mfr. Part No.:
- 3VA2040-5KP46-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£1,045.47
(exc. VAT)
£1,254.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,045.47 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 210-1705
- Mfr. Part No.:
- 3VA2040-5KP46-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Range | SENTRON | |
Series | 3VA2 | |
Number of Poles | 4 | |
Current Rating | 40A | |
Breaking Capacity at Maximum Voltage Rating | 55 kA | |
Rated AC Voltage | 690V | |
Mounting Style | Fixed | |
Better World Product | Yes | |
Better World Claim | Concentrated or compact solution, Extended product life | |
Circuit Breaker Type | MCCB | |
Select all | ||
---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Series 3VA2 | ||
Number of Poles 4 | ||
Current Rating 40A | ||
Breaking Capacity at Maximum Voltage Rating 55 kA | ||
Rated AC Voltage 690V | ||
Mounting Style Fixed | ||
Better World Product Yes | ||
Better World Claim Concentrated or compact solution, Extended product life | ||
Circuit Breaker Type MCCB | ||
- COO (Country of Origin):
- CZ
The Siemens circuit breaker 3VA2 IEC frame 100 breaking capacity class M, line protection ETU850, LSI, molded-case circuit breaker with 8-series ETU for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers.
Key features of this version of the 3VA molded-case circuit breaker:
1. Compact design.
2. Available as version for plant protection and generator protection.
3. Available as 3-pole and 4-pole version.
4. Can be installed fixed, in plug-in design or as withdrawable version.
5. The series has a solid-state overcurrent trip unit.
6. Integrated display for measured values.
7. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS.
8. Modular and easy-to-fit internal accessories with wide range of functions. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
1. Compact design.
2. Available as version for plant protection and generator protection.
3. Available as 3-pole and 4-pole version.
4. Can be installed fixed, in plug-in design or as withdrawable version.
5. The series has a solid-state overcurrent trip unit.
6. Integrated display for measured values.
7. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS.
8. Modular and easy-to-fit internal accessories with wide range of functions. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
