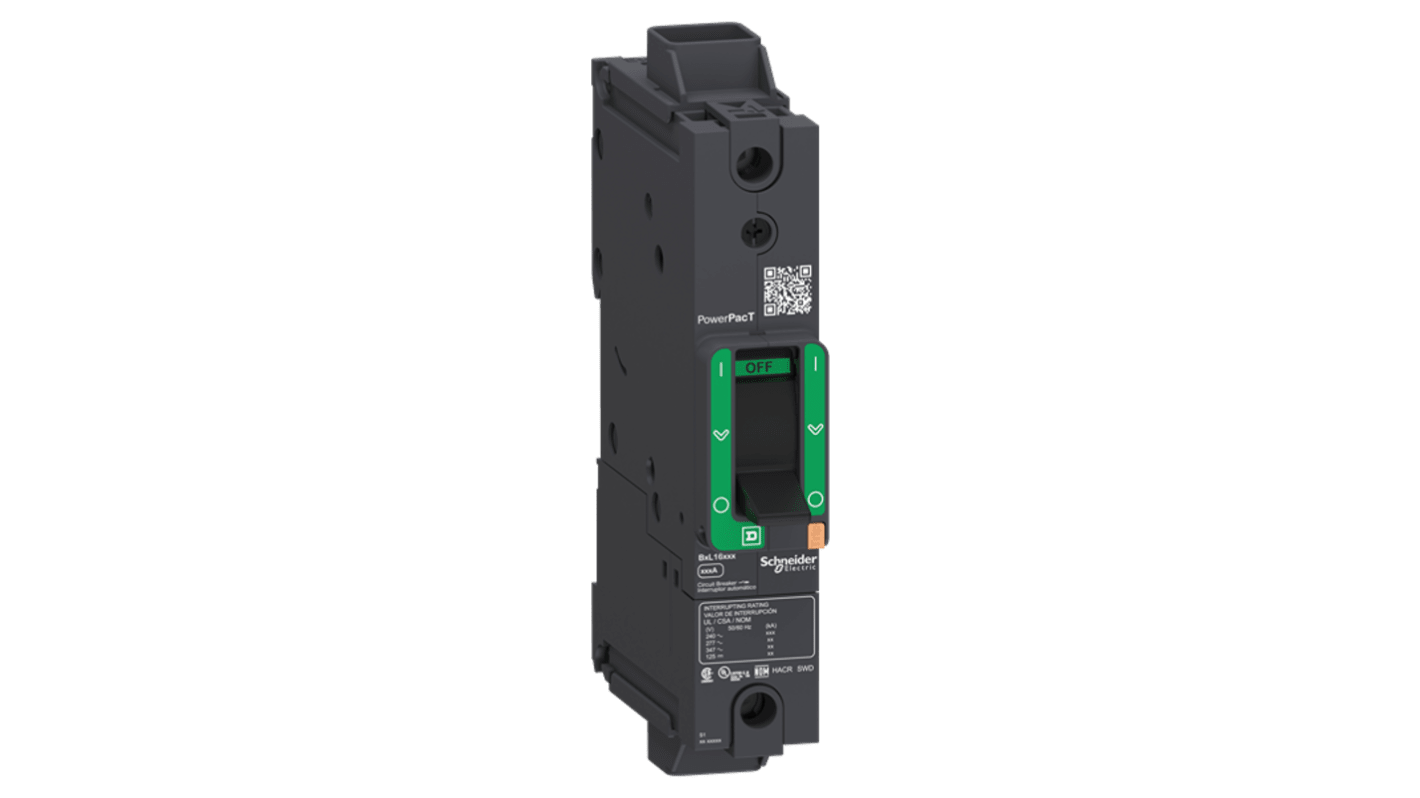

Schneider Electric, PowerPact Circuit breaker 1P 70A, Breaking Capacity 35 kA, DIN Rail Mount
- RS Stock No.:
- 357-074
- Mfr. Part No.:
- BGL16070
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£293.48
(exc. VAT)
£352.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £293.48 |
*price indicative
- RS Stock No.:
- 357-074
- Mfr. Part No.:
- BGL16070
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Range | PowerPact | |
Series | PowerPacT | |
Number of Poles | 1 | |
Current Rating | 70A | |
Breaking Capacity at Maximum Voltage Rating | 35 kA | |
Mounting Style | DIN Rail Mount | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Range PowerPact | ||
Series PowerPacT | ||
Number of Poles 1 | ||
Current Rating 70A | ||
Breaking Capacity at Maximum Voltage Rating 35 kA | ||
Mounting Style DIN Rail Mount | ||
- COO (Country of Origin):
- MX
The Schneider Electric brings Circuit Breaker features a thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. It provides thermal magnetic circuit protection. It is equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. It has an integral push-to-trip button in the cover to manually trip the circuit breaker. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This circuit breaker has a continuous current rating of 80%.
Mechanical durability of 15000 cycles
IP40 rated front cover
UL and CSA certified
CE marked
Green Premium product
RoHS compliant
IP40 rated front cover
UL and CSA certified
CE marked
Green Premium product
RoHS compliant
