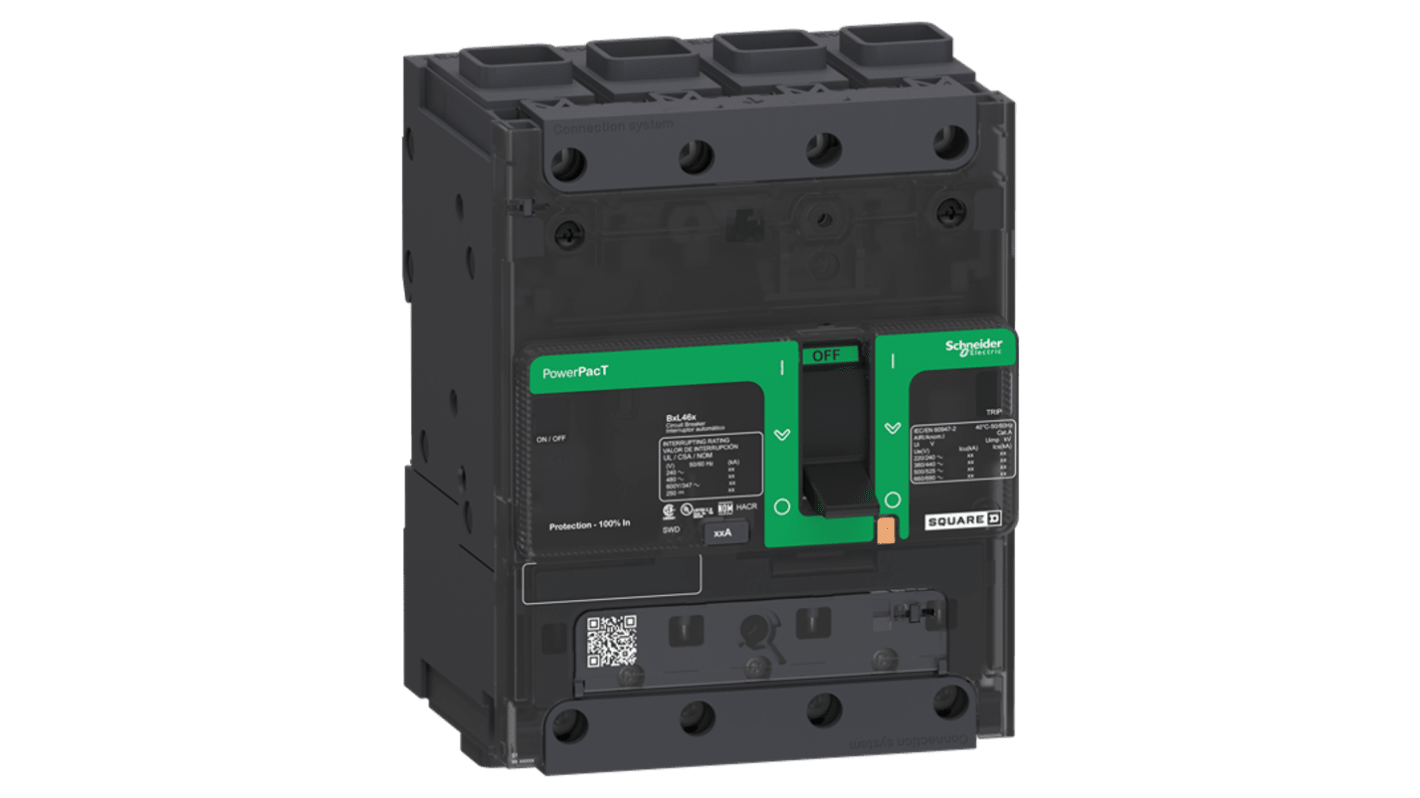

Schneider Electric, PowerPact, BDF Molded Case Circuit Breaker 4-Pole 70A, Breaking Capacity 14 kA, Clip-on
- RS Stock No.:
- 346-793
- Mfr. Part No.:
- BDF46070
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£907.75
(exc. VAT)
£1,089.30
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £907.75 |
*price indicative
- RS Stock No.:
- 346-793
- Mfr. Part No.:
- BDF46070
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | PowerPact | |
| Series | BDF | |
| Number of Poles | 4 | |
| Current Rating | 70A | |
| Breaking Capacity | 14kA | |
| Mount Type | Clip-on | |
| Rated AC Voltage | 525V ac | |
| Rated DC Voltage | 250V dc | |
| Terminal Type | Nut Terminal | |
| Width | 108mm | |
| Standards/Approvals | EN/IEC 60947-5-1 CSA C22.2 No 5 NEMA AB1 GB 14048.2 NMX J-266 EN/IEC 60947-2 UL 489 | |
| Depth | 80mm | |
| Height | 137mm | |
| Tripping Characteristics | Nennstrom 80 %, Thermomagnetic | |
| Tripping Mechanism | TMD | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range PowerPact | ||
Series BDF | ||
Number of Poles 4 | ||
Current Rating 70A | ||
Breaking Capacity 14kA | ||
Mount Type Clip-on | ||
Rated AC Voltage 525V ac | ||
Rated DC Voltage 250V dc | ||
Terminal Type Nut Terminal | ||
Width 108mm | ||
Standards/Approvals EN/IEC 60947-5-1 CSA C22.2 No 5 NEMA AB1 GB 14048.2 NMX J-266 EN/IEC 60947-2 UL 489 | ||
Depth 80mm | ||
Height 137mm | ||
Tripping Characteristics Nennstrom 80 %, Thermomagnetic | ||
Tripping Mechanism TMD | ||
- COO (Country of Origin):
- MX
The Schneider Electric Circuit Breaker offers thermal magnetic protection, ensuring reliable circuit safeguarding. It is equipped with dual-break rotating contacts that minimize peak current during a short-circuit fault. It comes come with an integral push-to-trip button in the cover for manual tripping. The unit mount construction allows for flexible installation with traditional back pan mounting using screws or integrated DIN rail mounting.
Unit has terminal nuts on both termination ends
Front cover confirms to IP40
Mechanical durability 15000 cycles conforming to IEC 947 1
Electrical durability 10000 cycles conforming to IEC 947 1
