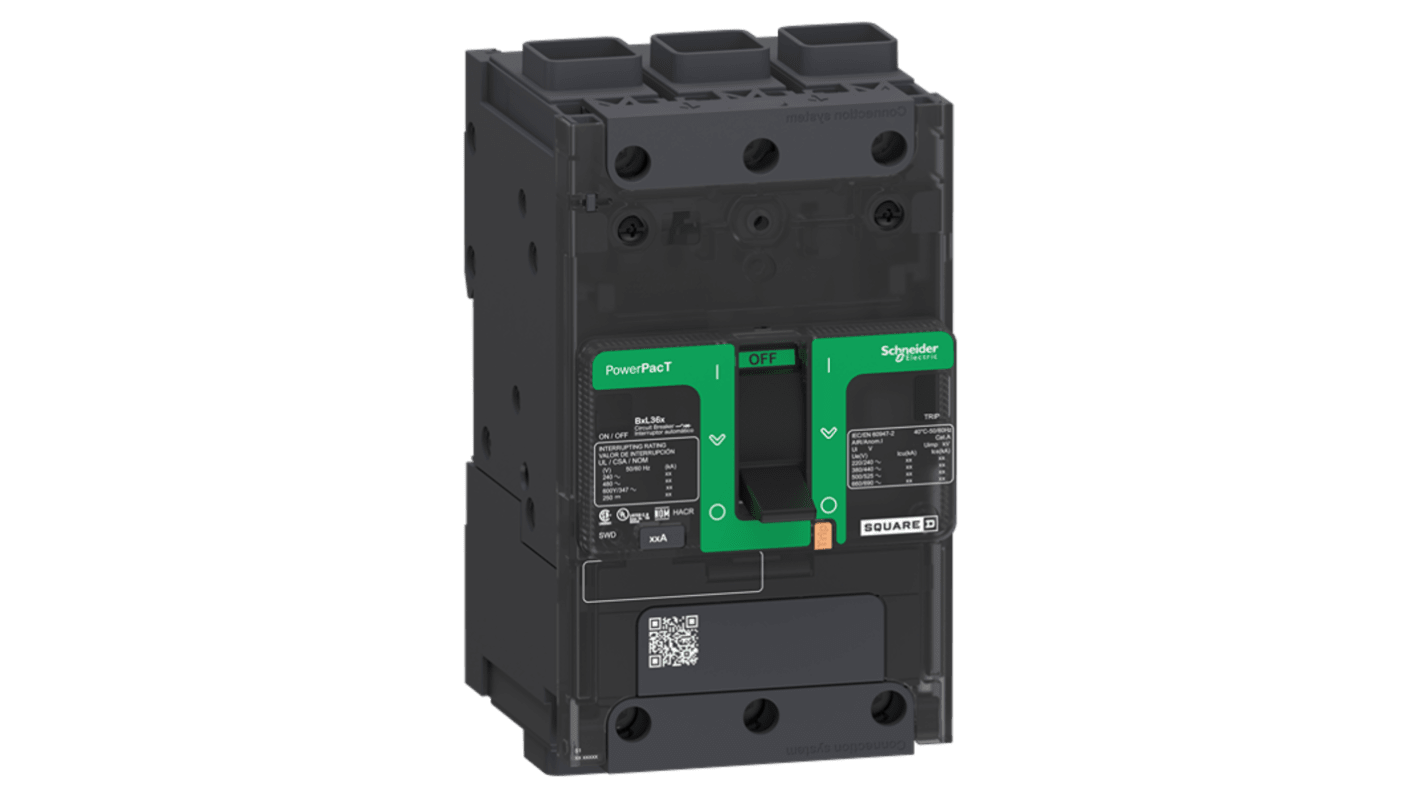

Schneider Electric, PowerPact, PowerPact Molded Case Circuit Breaker 3-Pole 60A, Breaking Capacity 14 kA, Clip-on

View all MCCBs

Subtotal (1 unit)*

£575.44

(exc. VAT)

£690.53

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£575.44

*price indicative

RS Stock No.:
341-565
Mfr. Part No.:
BDF36060
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Range

PowerPact

Product Type

Molded Case Circuit Breaker

Series

BDF

Number of Poles

3

Current Rating

60A

Breaking Capacity

14kA

Mount Type

Clip-on

Rated AC Voltage

525V ac

Rated DC Voltage

250V dc

Terminal Type

Nut Terminal

Depth

80mm

Height

137mm

Width

81mm

Standards/Approvals

GB 14048.2 EN/IEC 60947-2 CSA C22.2 No 5 UL 489 NMX J-266 NEMA AB1 EN/IEC 60947-5-1

Tripping Mechanism

Acetic Acid

Tripping Characteristics

Thermal Magnetic

COO (Country of Origin):
US
The Schneider Electric Circuit Breaker offers thermal magnetic protection, ensuring reliable circuit safeguarding. It is equipped with dual-break rotating contacts that minimize peak current during a short-circuit fault. It comes come with an integral push-to-trip button in the cover for manual tripping. The unit mount construction allows for flexible installation with traditional back pan mounting using screws or integrated DIN rail mounting.

Unit has terminal nuts on both termination ends

Front cover confirms to IP40

Mechanical durability 15000 cycles conforming to IEC 947 1

Electrical durability 10000 cycles conforming to IEC 947 1
