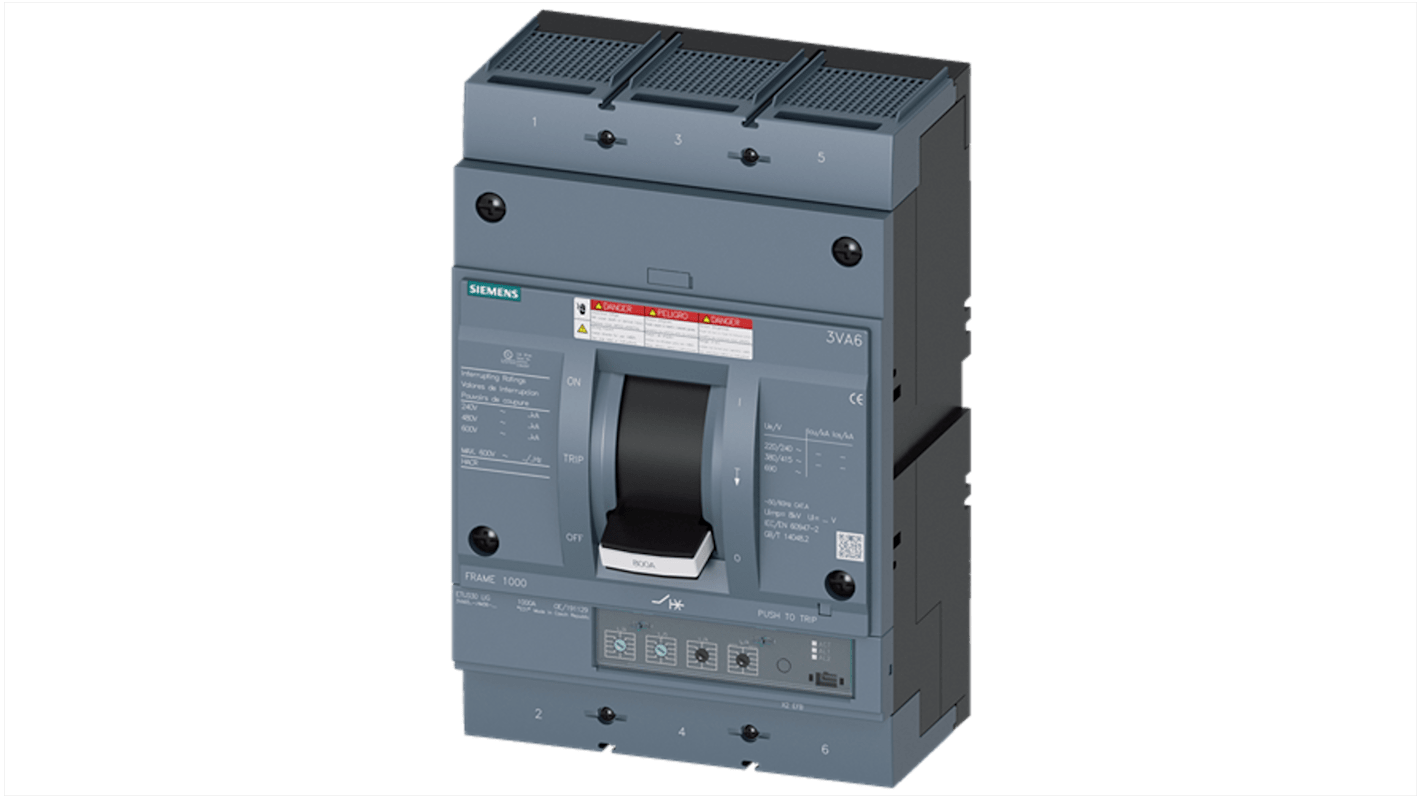

Siemens, SENTRON, 3VA6 Molded Case Circuit Breaker 3-Pole 600A, Breaking Capacity 100 kA, Fixed
- RS Stock No.:
- 249-614
- Mfr. Part No.:
- 3VA6560-7HM36-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£3,227.40
(exc. VAT)
£3,872.88
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,227.40 |
*price indicative
- RS Stock No.:
- 249-614
- Mfr. Part No.:
- 3VA6560-7HM36-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | SENTRON | |
| Product Type | Molded Case Circuit Breaker | |
| Series | 3VA6 | |
| Number of Poles | 3 | |
| Current Rating | 600A | |
| Breaking Capacity | 100kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 480V ac | |
| Terminal Type | Front Connected | |
| Depth | 120mm | |
| Height | 328mm | |
| Width | 210mm | |
| Standards/Approvals | IEC 60947, IEC 81346-2, RoHS, UL 489 | |
| Tripping Characteristics | Type G, Type I, Type L | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Product Type Molded Case Circuit Breaker | ||
Series 3VA6 | ||
Number of Poles 3 | ||
Current Rating 600A | ||
Breaking Capacity 100kA | ||
Mount Type Fixed | ||
Rated AC Voltage 480V ac | ||
Terminal Type Front Connected | ||
Depth 120mm | ||
Height 328mm | ||
Width 210mm | ||
Standards/Approvals IEC 60947, IEC 81346-2, RoHS, UL 489 | ||
Tripping Characteristics Type G, Type I, Type L | ||
- COO (Country of Origin):
- MX
The Siemens Molded Case Circuit Breaker is engineered for professional applications ensuring superior line protection with its advanced features. With robust breaking capacity and a modular design this product caters to diverse electrical systems offering reliable performance under challenging conditions. The circuit breaker integrates seamlessly into your existing installations enhancing safety through precise overcurrent protection and ground fault monitoring. Designed for high efficiency it supports impressive short circuit breaking capabilities allowing it to handle varying operational demands with ease.
Incorporates advanced ground fault monitoring features for enhanced safety
Supports high mechanical service life reducing the need for frequent replacements
Provides a comprehensive communication function for easier monitoring and diagnostics
Compatible with a wide range of conductor sizes which ensuring versatile installation options
Reliable electrical endurance ratings support varied application demands
Complies with both IEC and UL standards assuring quality and safety
