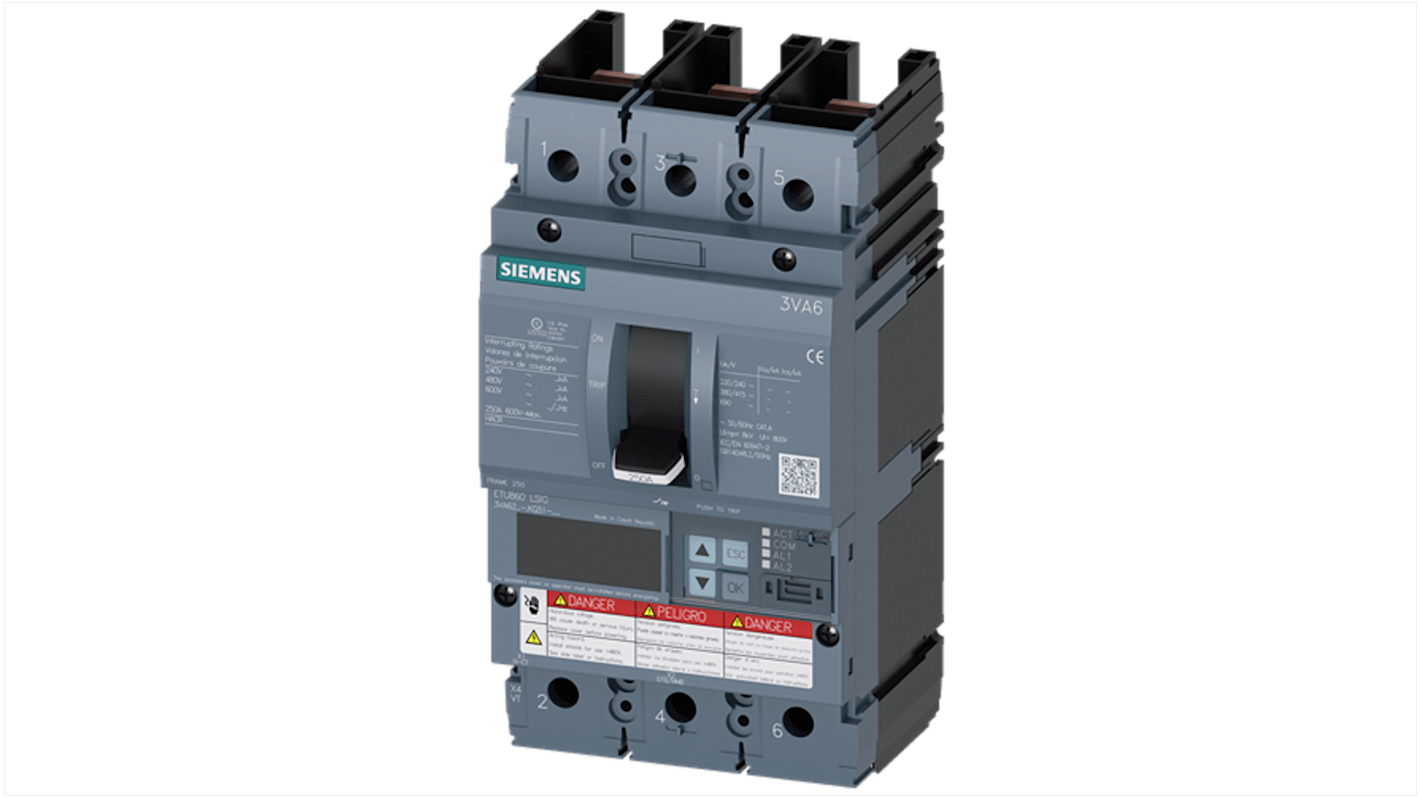

Siemens, SENTRON, 3VA62 Molded Case Circuit Breaker 3-Pole 250A, Breaking Capacity 3 kA, Fixed
- RS Stock No.:
- 245-435
- Mfr. Part No.:
- 3VA6225-0KQ31-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£2,508.60
(exc. VAT)
£3,010.32
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,508.60 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 245-435
- Mfr. Part No.:
- 3VA6225-0KQ31-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | SENTRON | |
| Product Type | Molded Case Circuit Breaker | |
| Series | 3VA62 | |
| Number of Poles | 3 | |
| Current Rating | 250A | |
| Breaking Capacity | 3kA | |
| Rated AC Voltage | 690V ac | |
| Mount Type | Fixed | |
| Depth | 86mm | |
| Width | 105mm | |
| Height | 198mm | |
| Standards/Approvals | UL 489, RoHS, IEC 81346-2, IEC 60947 | |
| Better World Claim | Concentrated or Compact Solution, Extended Product Life | |
| Better World Product | Yes | |
| Tripping Characteristics | Type S, Type L, Type I, Type G | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Product Type Molded Case Circuit Breaker | ||
Series 3VA62 | ||
Number of Poles 3 | ||
Current Rating 250A | ||
Breaking Capacity 3kA | ||
Rated AC Voltage 690V ac | ||
Mount Type Fixed | ||
Depth 86mm | ||
Width 105mm | ||
Height 198mm | ||
Standards/Approvals UL 489, RoHS, IEC 81346-2, IEC 60947 | ||
Better World Claim Concentrated or Compact Solution, Extended Product Life | ||
Better World Product Yes | ||
Tripping Characteristics Type S, Type L, Type I, Type G | ||
- COO (Country of Origin):
- CZ
The Siemens Molded Case Circuit Breaker is expertly designed for applications requiring robust protection and precise control over electrical distribution. Featuring the advanced ETU860 overcurrent release mechanism, it allows for exceptional selectivity and reliability in demanding conditions. The breaker is engineered to operate in high-voltage environments, providing line protection with breaking capacities to handle short-circuit situations effectively. Seamlessly integrating with system architectures, this product guarantees both safety and efficiency, addressing the needs of diverse industrial settings. With its exceptional durability and adaptability, it stands as a prudent choice for protection in heating, air conditioning, and refrigeration systems.
Compact design facilitates easy installation in various panel arrangements
IP40 rated enclosure protects internal components from dust and accidental contact
Efficient thermal management optimises power loss during operation
High mechanical and electrical endurance enhances long term reliability
Communication functionality supports system integration for real time monitoring
