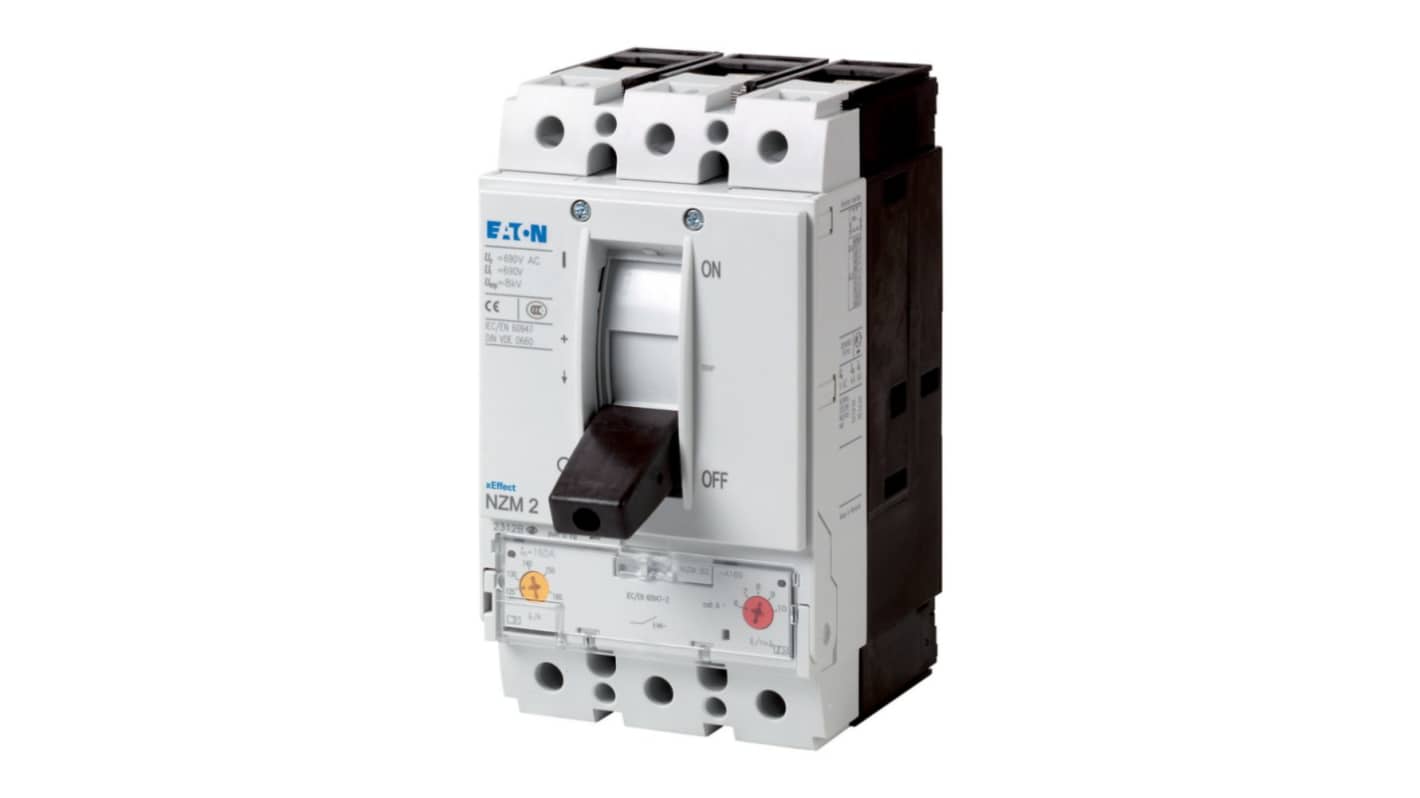

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 200 A, Breaking Capacity 18.5 kA, Fixed
- RS Stock No.:
- 230-940
- Mfr. Part No.:
- 107783 NZMB2-A200-BT-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£1,556.30
(exc. VAT)
£1,867.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,556.30 |
*price indicative
- RS Stock No.:
- 230-940
- Mfr. Part No.:
- 107783 NZMB2-A200-BT-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 200 A | |
| Breaking Capacity | 18.5kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 690 V ac | |
| Terminal Type | Box | |
| Height | 195mm | |
| Standards/Approvals | IEC UL 489 IEC/EN 60947 CSA-C22.2 No. 5-09 UL (File No. E31593) UL UL (Category Control Number DIVQ) IEC 60947-2 CE marking UL/CSA CSA (Class No. 1432-01) CSA (File No. 22086) CSA Specially designed for North America | |
| Depth | 149mm | |
| Width | 105 mm | |
| Break Time | 10 ms | |
| Reset Actuator Type | Rocker Lever | |
| Tripping Characteristics | Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 200 A | ||
Breaking Capacity 18.5kA | ||
Mount Type Fixed | ||
Rated AC Voltage 690 V ac | ||
Terminal Type Box | ||
Height 195mm | ||
Standards/Approvals IEC UL 489 IEC/EN 60947 CSA-C22.2 No. 5-09 UL (File No. E31593) UL UL (Category Control Number DIVQ) IEC 60947-2 CE marking UL/CSA CSA (Class No. 1432-01) CSA (File No. 22086) CSA Specially designed for North America | ||
Depth 149mm | ||
Width 105 mm | ||
Break Time 10 ms | ||
Reset Actuator Type Rocker Lever | ||
Tripping Characteristics Thermomagnetic | ||
- COO (Country of Origin):
- RO
The Eaton Molded Case Circuit Breaker is designed specifically for robust circuit protection. It efficiently manages current flow with its advanced thermo-magnetic release system, offering a reliable solution for both branch and feeder circuits. With a focus on durability and compliance, this circuit breaker meets stringent safety standards, ensuring optimal protection in various installations. Its compact design and DIN rail mounting options make integration into existing systems seamless, while the comprehensive technical specifications provide the assurance of high performance and ease of maintenance. This circuit breaker is tailored for North American applications, demonstrating the manufacturer's commitment to quality and innovation in electrical solutions.
Meets both UL and CSA certification standards ensuring reliability
Offers adjustable overload releases for custom protection settings
Provides efficient heat dissipation maintaining operational integrity
Offers an extensive lifespan with up to 20000 mechanical operations
Includes extensive compatibility with IEC and EN regulations
