Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 2 A, Type C, 240 V ac AC, 48 V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£71.24

(exc. VAT)

£85.49

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£71.24

*price indicative

RS Stock No.:
922-7077
Distrelec Article No.:
300-78-750
Mfr. Part No.:
278662 FAZ-C2/1N
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Number of Poles

1

Product Type

Miniature Circuit Breaker

Current Rating

2 A

Tripping Characteristics

Type C

Rated AC Voltage

240 V ac

Rated DC Voltage

48 V

Mount Type

DIN Rail

Breaking Capacity

10kA

Range

xEffect

Series

FAZ

Terminal Type

Twin-Purpose Terminal

IP Rating

IP20

Standards/Approvals

No

Depth

80mm

Width

66 mm

Reset Actuator Type

Toggle Switch

Break Time

Instantaneous

Tripping Mechanism

Thermal Magnetic

COO (Country of Origin):
RO

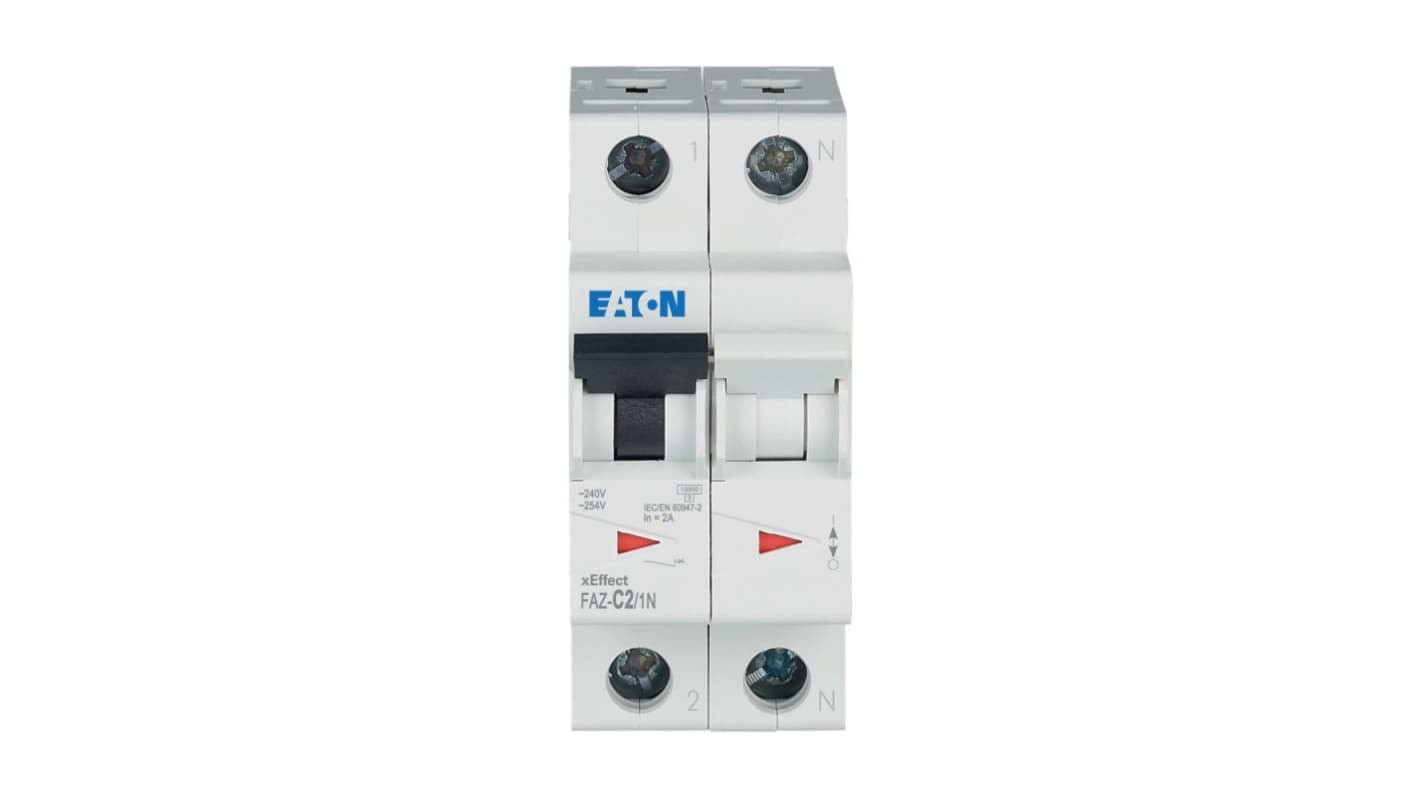

Eaton MCB, 2A Current Rating, 1+N Poles- 278662 FAZ-C2/1N


This is a 1+N circuit breaker designed for reliable protection in electrical installations. The Eaton MCB boasts a compact design with a width of 36mm and a length of 80mm, making it suitable for DIN rail mounting. Operating at a rated AC voltage of 240V and a DC voltage of 48V, it offers instantaneous fault clearing capabilities through its thermal-magnetic mechanism.

Features & Benefits


• Features a 10 kA breaking capacity for effective fault isolation

• Utilises a Type C tripping characteristic for overload protection

• Instantaneous break time ensures prompt disconnection during faults

• Equipped with a toggle switch for easy reset after tripping

• Designed as a single pole plus neutral for versatile installations

• Constructed to meet IEC/EN standards for enhanced safety

Applications


• Suitable for residential electrical systems requiring efficient circuit protection

• Used in automation systems for reliable fault management

• Ideal for machinery circuits in industrial environments

• Implemented in control panels to safeguard against electrical overloads

What makes the Type C tripping characteristic beneficial for certain applications?


The Type C characteristic allows for a higher instantaneous response to short circuits and overloads, making it suitable for circuits with higher inrush currents, such as motors and transformers. This minimises the risk of nuisance tripping while still providing essential protection.

How does the thermal-magnetic mechanism enhance circuit safety?


The thermal-magnetic mechanism combines thermal protection against sustained overloads with magnetic protection for instantaneous response to short circuits. This dual functionality ensures reliable operation in various fault conditions, safeguarding both the circuit and connected devices.

Is this circuit breaker compatible with other automation products?


Yes, it is compatible with various automation systems and electrical installations, particularly where space is limited, thanks to its compact dimensions and DIN rail mounting design. This allows for easy integration into existing setups.

Note

Eaton formerly known as Moeller
