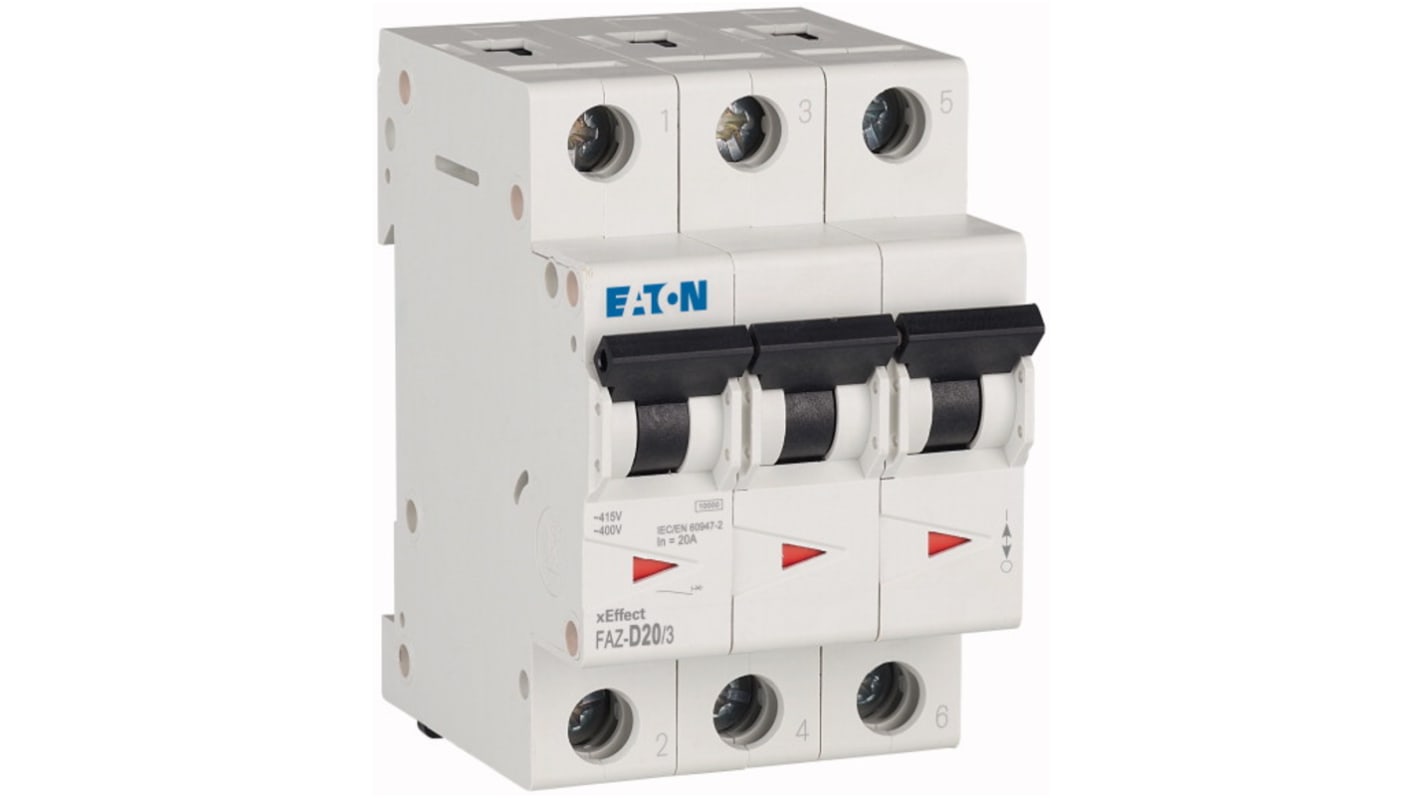

Eaton xEffect xEffect Miniature Circuit Breaker, 3-Pole, 20A, Type D, 415V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3557
- Mfr. Part No.:
- 278897 FAZ-D20/3
- Brand:
- Eaton
Subtotal (1 unit)*
£99.98
(exc. VAT)
£119.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 01 June 2026
- Plus 4 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £99.98 |
*price indicative
- RS Stock No.:
- 847-3557
- Mfr. Part No.:
- 278897 FAZ-D20/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 20A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 415V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | xEffect | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP20 | |
| Standards/Approvals | No | |
| Width | 73mm | |
| Depth | 73mm | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 20A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 415V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series xEffect | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP20 | ||
Standards/Approvals No | ||
Width 73mm | ||
Depth 73mm | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
Eaton MCB, Type D Tripping, DIN Rail Mount - FAZ Series - 278897 FAZ-D20/3
Need a safety solution to keep you and your equipment protected against overcurrent and short-circuit faults? Choose this MCB from Eaton. As a component with type D breaking characteristics, it tolerates very high inductive loads, so it's ideal for use in high-power industrial applications and with heavy-duty equipment such as motors and transformers. Thanks to a maximum breaking capacity of 10kA means you can trust this MCB to handle extreme surges to reliably reduce the risk of equipment failure or fire. A high magnetic trip point minimises the risk of nuisance tripping in load-drawing applications to help avoid downtime.
Features & Benefits
• Wide operating temperature range of -40°C to +75°C means it can withstand harsh environments
• Meets UL 1077, so offers effective supplementary protection for your circuits
• Complies with CSA C22.2 No. 235 as a safe high-voltage AC circuit breaker
• Trip-free design prevents the circuit from being defeated when the handle is held in the ON position
How do I mount this unit?
This MCB simply snaps into place on a standard 35mm DIN rail, so installation is quick and easy without the need for tools.
Note
Eaton formerly known as Moeller
