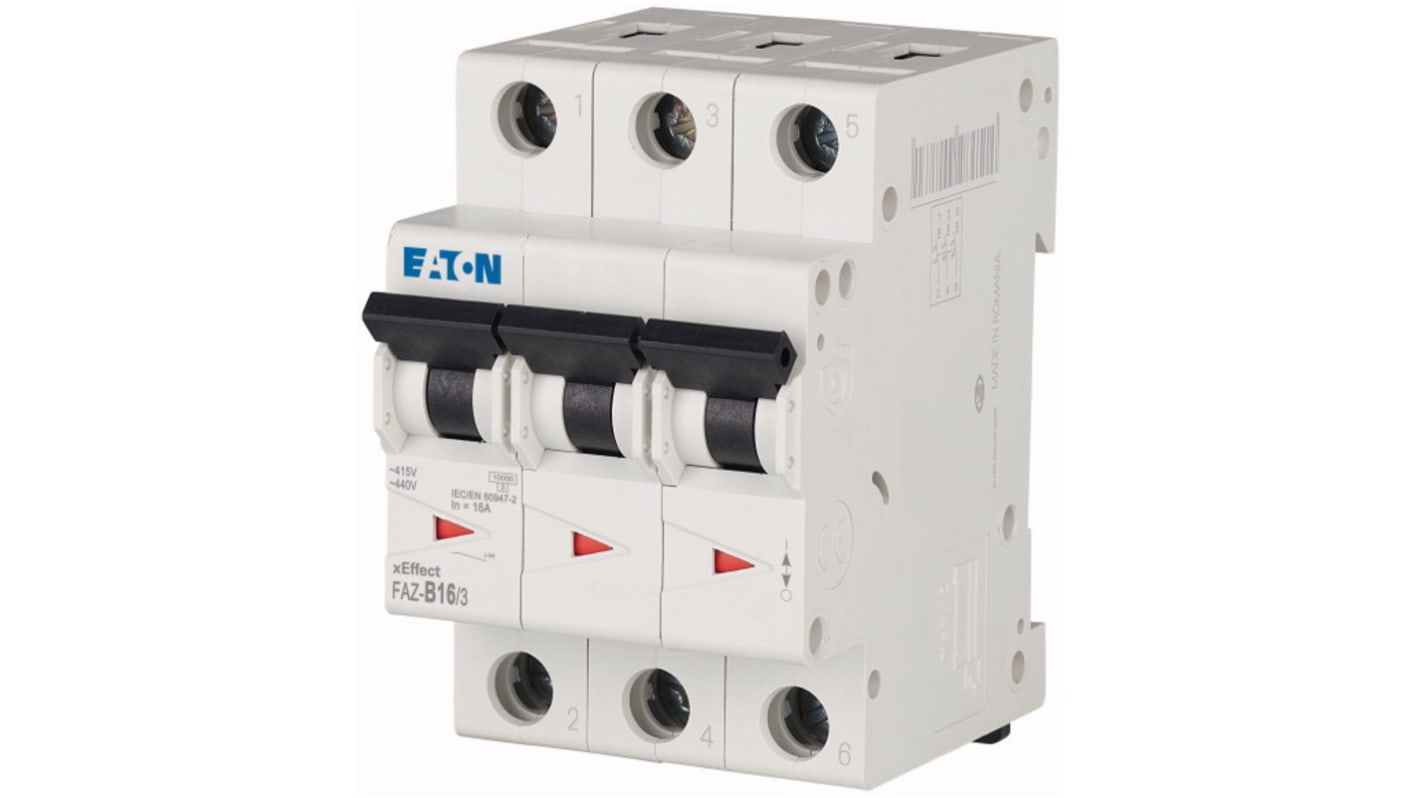

Eaton xEffect MCB, 3P, 16A Curve B, 240 → 415V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3140
- Mfr. Part No.:
- 278847 FAZ-B16/3
- Brand:
- Eaton
Subtotal (1 unit)*
£95.22
(exc. VAT)
£114.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 999,999,993 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £95.22 |
*price indicative
- RS Stock No.:
- 847-3140
- Mfr. Part No.:
- 278847 FAZ-B16/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 16A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 240 → 415V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Width | 85mm | |
Length | 54mm | |
Mounting Style | DIN Rail Mount | |
Depth | 73mm | |
Application | Advanced Commercial and Industrial | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 16A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 240 → 415V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 85mm | ||
Length 54mm | ||
Mounting Style DIN Rail Mount | ||
Depth 73mm | ||
Application Advanced Commercial and Industrial | ||
Eaton MCB, Type B Tripping, IP20 Rated - FAZ Series - 278847 FAZ-B16/3
Use this MCB from Eaton to help you protect people and equipment from hazardous overcurrents. The current-limiting design also gives you reliable short-circuit protection so you can trust therell be minimal let-through energy that could harm your devices in the event of a fault. For user safety, the MCB has a trip-free feature that prevents you from overriding the breaker by holding the handle in the ON position. Its type B breaking characteristics make it suitable for use with lower resistive loads. This means youll typically find a unit like this one in domestic settings where it's used to protect electrical appliances.
Features & Benefits
• Includes captive screws so you cant lose them
• Mounts without tools onto a standard DIN rail for easy installation
• Red/green contact indicator makes the status easy to read
• Meets UL 1077, which means it offers effective supplementary protection for your circuits
• Meets IEC 60947-2 as a safe low-voltage breaker
• Mounts without tools onto a standard DIN rail for easy installation
• Red/green contact indicator makes the status easy to read
• Meets UL 1077, which means it offers effective supplementary protection for your circuits
• Meets IEC 60947-2 as a safe low-voltage breaker
What temperatures can I use this MCB in?
This MCB's broad operating temperature range of -40°C to +75°C means you can use it safely in harsh environments.
Note
Eaton formerly known as Moeller
