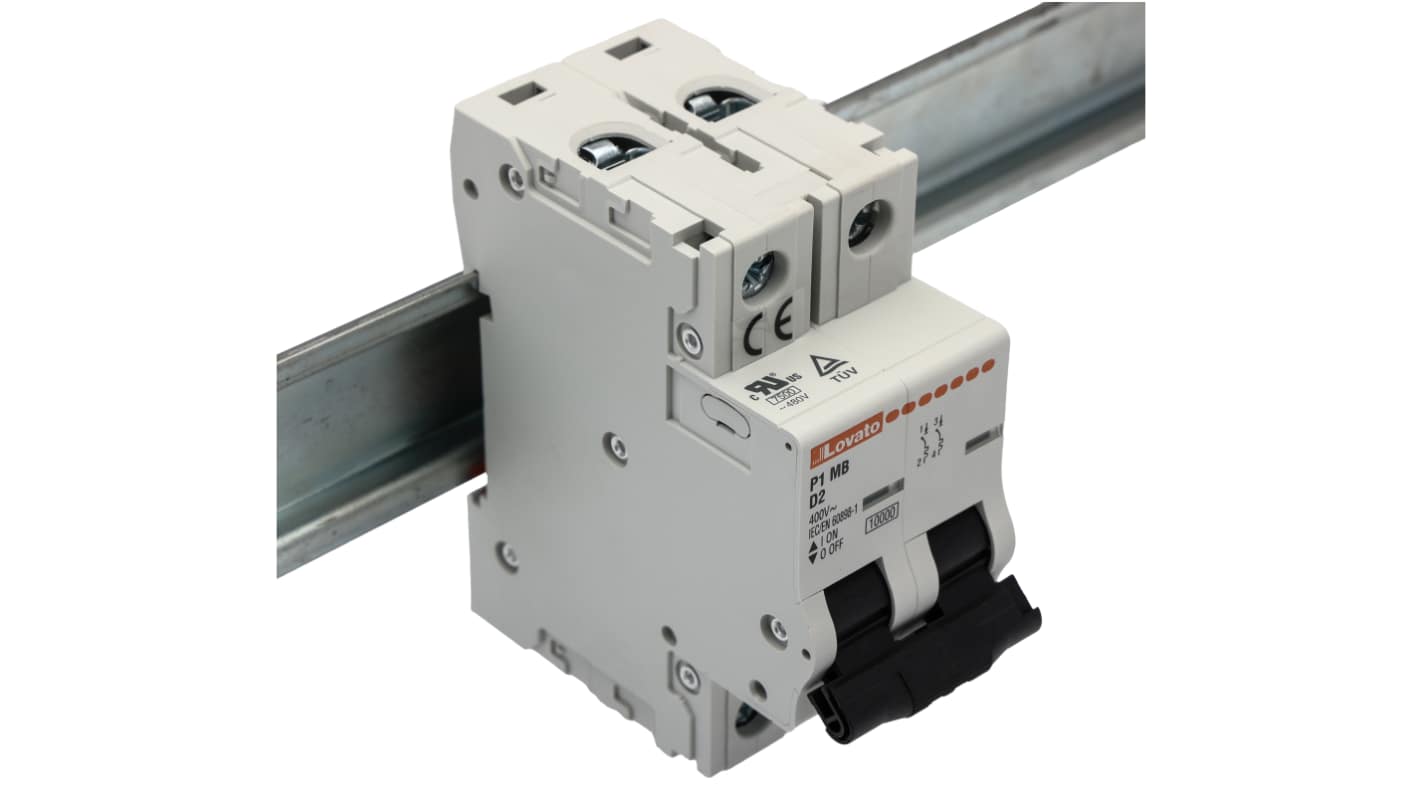

Lovato Modulo P1MB Miniature Circuit Breaker, 2-Pole, 2A, Type D, 400V ac AC, 80 V dc DC, 10 kA Breaking Capacity

RS Stock No.:: 825-5744
Mfr. Part No.:: P1MB2PD02
Brand:: Lovato

Lovato Modulo P1MB Miniature Circuit Breaker, 2-Pole, 2A, Type D, 400V ac AC, 80 V dc DC, 10 kA Breaking Capacity

Subtotal (1 unit)*

£50.99

(exc. VAT)

£61.19

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

37 unit(s) ready to ship
Plus 39 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£50.99

*price indicative

RS Stock No.:: 825-5744
Mfr. Part No.:: P1MB2PD02
Brand:: Lovato

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lovato
	Number of Poles	2
	Product Type	Miniature Circuit Breaker
	Current Rating	2A
	Tripping Characteristics	Type D
	Rated AC Voltage	400V ac
	Rated DC Voltage	80V dc
	Mount Type	DIN Rail
	Breaking Capacity	10kA
	Range	Modulo
	Series	P1MB
	Terminal Type	Screw
	IP Rating	IP20
	Height	86.5mm
	Depth	80mm
	Width	36mm
	Standards/Approvals	UL 1077, IEC/EN/BS 60947-2, IEC/EN/BS 60898-1, EAC, cURus, CSA
	Tripping Mechanism	Thermal Magnetic
	Break Time	Instantaneous

	Select all
	Brand Lovato
	Number of Poles 2
	Product Type Miniature Circuit Breaker
	Current Rating 2A
	Tripping Characteristics Type D
	Rated AC Voltage 400V ac
	Rated DC Voltage 80V dc
	Mount Type DIN Rail
	Breaking Capacity 10kA
	Range Modulo
	Series P1MB
	Terminal Type Screw
	IP Rating IP20
	Height 86.5mm
	Depth 80mm
	Width 36mm
	Standards/Approvals UL 1077, IEC/EN/BS 60947-2, IEC/EN/BS 60898-1, EAC, cURus, CSA
	Tripping Mechanism Thermal Magnetic
	Break Time Instantaneous

Lovato Circuit Protection Catalogue

RoHS Status: Not Applicable

COO (Country of Origin):: IT

Lovato P1MB Series MCB, 2A, 10kA Breaking Capacity (at Maximum Voltage Rating) - P1MB2PD02

This MCB provides critical protection against overloads and short circuits in electrical systems. It is compatible with a wide range of applications, effectively regulating electrical flow while safeguarding connected devices. Its specifications make it a suitable option for professionals in automation and electronics.

Features & Benefits

• Current rating of 2A for effective load management

• Type D MCB suitable for high inrush current applications

• Rated for 230V and 400V, adaptable to various systems

• 10 kA breaking capacity for enhanced safety and reliability

• Easy installation on DIN rails for diverse setups

• IP20 terminal protection for added safety against accidental contact

Applications

• Used in commercial lighting circuits

• Protects small motor drives

• Employed in control panels for automation systems

• Enhances circuit safety in residential installations

• Applicable in machinery where overload protection is necessary

What type of systems is this suitable for?

It is suitable for various electrical systems, including residential and commercial applications.

Can it handle high inrush currents?

Yes, as a Type D MCB, it is designed for applications with high inrush currents.

What maintenance is required for optimal performance?

Regular visual inspections are recommended to ensure connections remain secure and undamaged.
