iC60H series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime

It protects wires from overloads and short-circuits. For overload protection the temperature of a bimetal, through which the current passes is decisive. If the nominal current—the current the circuit breaker is designed for—rises slightly, the bimetal heats up to a greater extent and, after a certain period of time, this causes the switching mechanism to trip. Today MCBs are installed in all our homes, offices and other buildings, protecting the electrical wires from damage. They have the advantage that they can be manually reset without having to replace wire as in the case of the traditional fuse. The MCBs have either a button or lever that can be flicked to reset it. They are used instead of fuses due to their convenience and improved safety features.

Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

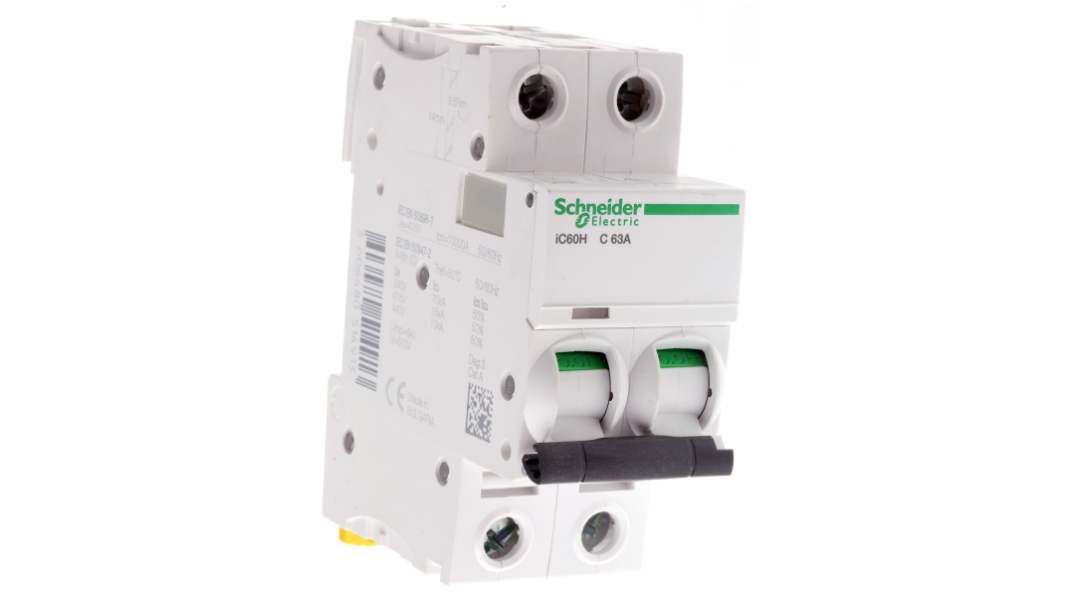

To make sure electrical hazards don't put the brakes on your work, pick this MCB from Schneider Electric. Its type-C tripping curve means it shuts down your circuit at 5 to 10 times the rated load current of 63A, helping to keep your equipment protected against damage. Once it's safe to continue operations, you can reset the circuit breaker in a snap using the in-built rocker actuator. Thanks to a current rating of 63A, this is just the thing for use in high-power applications.

• VisiTrip indicator window lets you check the unit's status at a glance
• Clips onto a DIN rail for speedy installation
• Compact dimensions of 85 (L) x 36 (W) x 78.5mm (D) to add minimal bulk to your rail
• Wide operating temperature range of -35°C to +70°C for use in demanding environments
• IP20 rating means it's finger-safe and protected against objects larger than 12mm

• Industrial automation
• Manufacturing equipment
• Mechanical engineering

This MCB has a mechanical durability of 20,000 cycles, so you can count on it for long-term performance.
