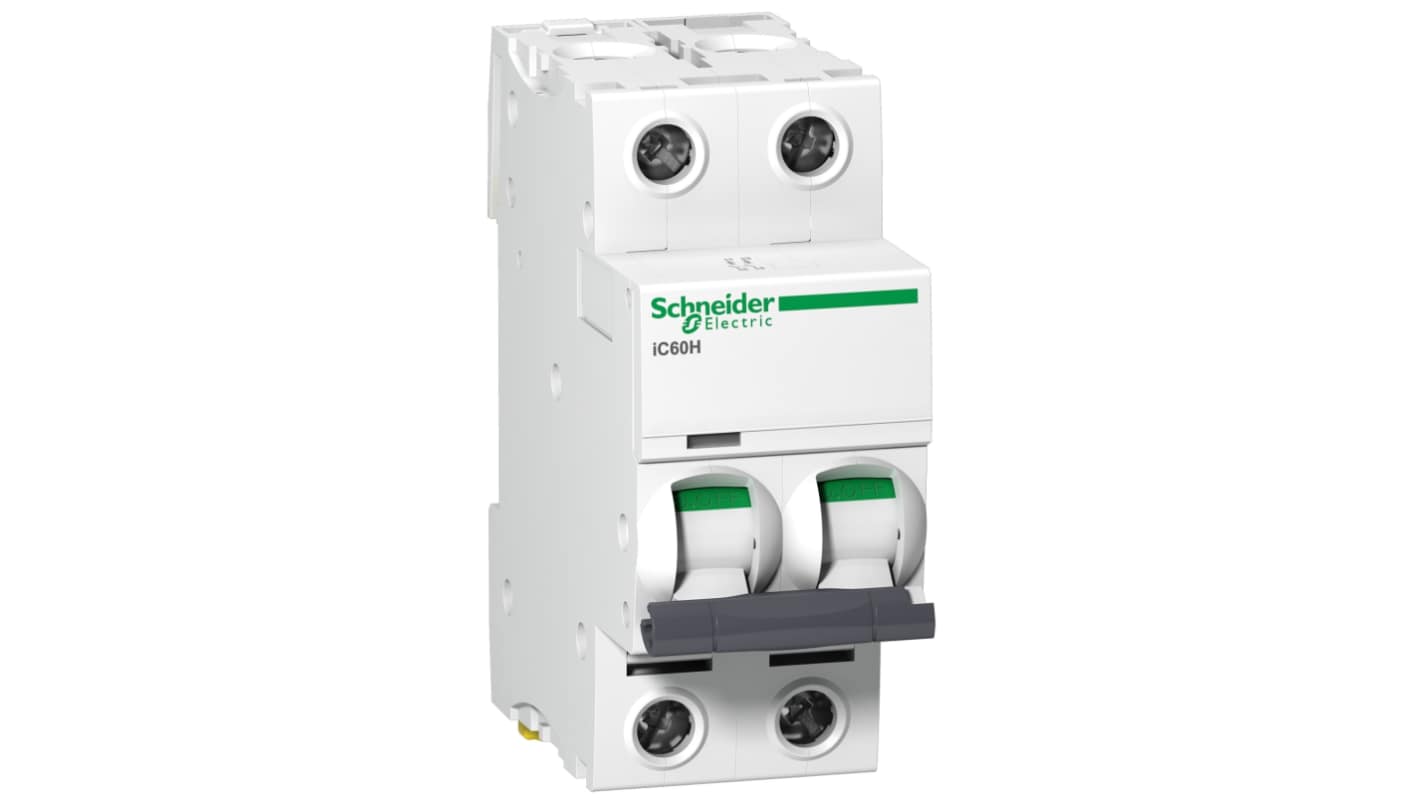

Schneider Electric Acti 9 iC60H MCB, 2P, 25A Curve C, 440V AC, 100 → 133V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3357
- Mfr. Part No.:
- A9F54225
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£74.84
(exc. VAT)
£89.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 23 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.84 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3357
- Mfr. Part No.:
- A9F54225
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 2 | |
| Current Rating | 25A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440 V, 12 → 133 V, 220 → 240 V, 380 → 415V | |
| Rated DC Voltage | 100 → 133V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | Acti 9 | |
| Series | iC60H | |
| Circuit Breaker Type | MCB | |
| Length | 85mm | |
| Width | 36mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 78.5mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Tripping Mechanism | Thermal-Magnetic | |
| Reset Actuator Type | Rocker Switch | |
| Terminal Contact Type | Screw | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 2 | ||
Current Rating 25A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440 V, 12 → 133 V, 220 → 240 V, 380 → 415V | ||
Rated DC Voltage 100 → 133V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range Acti 9 | ||
Series iC60H | ||
Circuit Breaker Type MCB | ||
Length 85mm | ||
Width 36mm | ||
Mounting Style DIN Rail Mount | ||
Depth 78.5mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Rocker Switch | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- BG
Schneider Electric iC60H Series MCB, 25A Current Rating, 2 Poles - A9F54225
This MCB is a miniature circuit breaker designed for reliable electrical protection in both commercial and industrial settings. With a width of 36mm, height of 85mm, and depth of 78.5mm, it features a robust thermal-magnetic tripping mechanism for effective circuit interruption. The device is DIN rail mountable, making it suitable for a variety of installation environments.
Features & Benefits
• Short circuit protection ensures safety in case of overloads
• High breaking capacity of 10 kA at rated voltage
• Compatible with AC and DC networks for versatile use
• Toggle control type for straightforward operation
• Local trip indicator provides visual confirmation of status
• Earth leakage protection available through separate block
• High breaking capacity of 10 kA at rated voltage
• Compatible with AC and DC networks for versatile use
• Toggle control type for straightforward operation
• Local trip indicator provides visual confirmation of status
• Earth leakage protection available through separate block
Applications
• Used for electrical distribution in commercial buildings
• Suitable for industrial machinery and equipment safety
• Employed in automation systems requiring dependable circuit protection
• Ideal for installations needing short circuit protection measures
• Suitable for industrial machinery and equipment safety
• Employed in automation systems requiring dependable circuit protection
• Ideal for installations needing short circuit protection measures
How does the thermal-magnetic trip unit enhance operational reliability?
The thermal-magnetic trip unit offers dual protection by responding to both overload conditions and rapid short circuits, ensuring circuits are safely interrupted during abnormalities.
What types of terminals does it accommodate for wiring?
It accommodates single terminals for rigid or flexible wires ranging from 1 to 25mm², allowing for flexible installation options.
In which environmental conditions can this MCB function optimally?
It operates efficiently within an ambient temperature range of -35°C to 70°C, making it suitable for various climate conditions.
