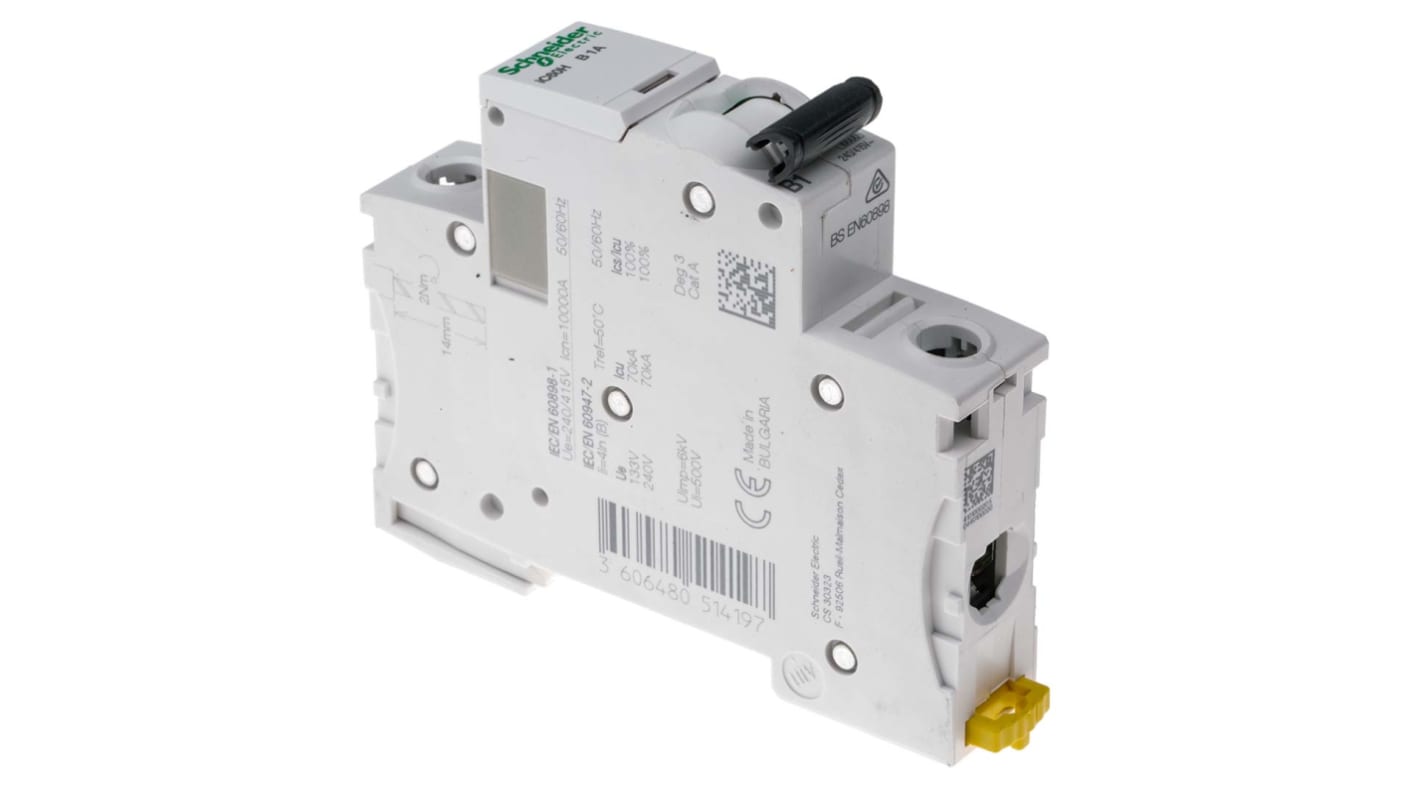

Schneider Electric Acti 9 iC60H MCB, 1P, 1A Curve B, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3142
- Mfr. Part No.:
- A9F53101
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£36.74
(exc. VAT)
£44.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.74 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3142
- Mfr. Part No.:
- A9F53101
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 1 | |
| Current Rating | 1A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 100 → 133 V, 12 → 60 V, 220 → 240V | |
| Rated DC Voltage | 72 V, 12 → 48V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | Acti 9 | |
| Series | iC60H | |
| Circuit Breaker Type | MCB | |
| Length | 85mm | |
| Width | 18mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 78.5mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Reset Actuator Type | Rocker Switch | |
| Terminal Contact Type | Screw | |
| Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 1 | ||
Current Rating 1A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 100 → 133 V, 12 → 60 V, 220 → 240V | ||
Rated DC Voltage 72 V, 12 → 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range Acti 9 | ||
Series iC60H | ||
Circuit Breaker Type MCB | ||
Length 85mm | ||
Width 18mm | ||
Mounting Style DIN Rail Mount | ||
Depth 78.5mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Reset Actuator Type Rocker Switch | ||
Terminal Contact Type Screw | ||
Tripping Mechanism Thermal-Magnetic | ||
Schneider Electric Mini Circuit Breaker, Type B, 10kA Breaking Capacity - iC60H Series - A9F53101
Use this miniature circuit breaker (MCB) from Schneider Electric for industrial and commercial applications. By automatically cutting the current when a fault is detected, it safeguards electronic equipment from potential damage caused by short circuits and overloads. This single pole MCB functions on AC (alternating current) and DC (direct current), making it a versatile choice. Its 10kA breaking capacity makes it suitable for heavy-duty applications. For easy installation, it attaches to a DIN rail with a single clip.
Features & Benefits
• VisiTrip technology gives a visual indication that the circuit has tripped, for quick fault detection
• Compact dimensions of 85 (H) x 18 (W) x 78.5mm (D) make the unit suitable for use in small spaces
• Wide operating temperature range of -35°C to +70°C for use in demanding environments
• Uses a thermal-magnetic tripping mechanism for both instantaneous and time-delayed protection
• Compact dimensions of 85 (H) x 18 (W) x 78.5mm (D) make the unit suitable for use in small spaces
• Wide operating temperature range of -35°C to +70°C for use in demanding environments
• Uses a thermal-magnetic tripping mechanism for both instantaneous and time-delayed protection
Applications
• Industrial automation
• Domestic circuitry
• Offices
• Domestic circuitry
• Offices
What's meant by this MCB's Type B tripping characteristic?
The unit's Type B tripping characteristic means the circuit trips instantly at a rate of three to five times the rated current. This makes it suitable for protecting generators, people and long cables.
