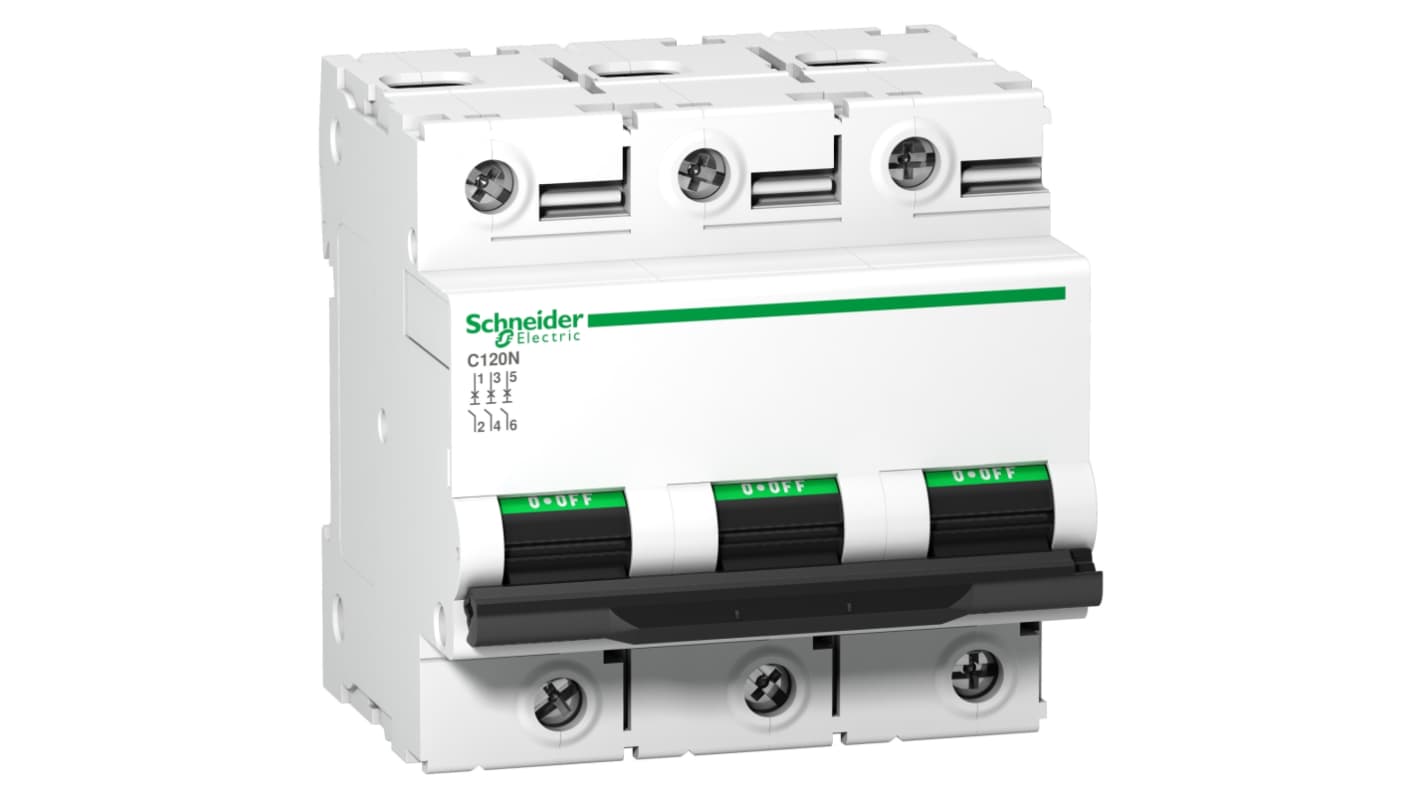

Schneider Electric Acti9 Acti9 C120 Miniature Circuit Breaker, 3-Pole, 125 A, Type C, 440 V ac AC, 375 V dc DC, 10 kA

RS Stock No.:: 776-3076
Mfr. Part No.:: A9N18369
Brand:: Schneider Electric

Schneider Electric Acti9 Acti9 C120 Miniature Circuit Breaker, 3-Pole, 125 A, Type C, 440 V ac AC, 375 V dc DC, 10 kA

Subtotal (1 unit)*

£286.03

(exc. VAT)

£343.24

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

1 unit(s) shipping from 27 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£286.03

*price indicative

RS Stock No.:: 776-3076
Mfr. Part No.:: A9N18369
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Number of Poles	3
	Product Type	Miniature Circuit Breaker
	Current Rating	125 A
	Tripping Characteristics	Type C
	Rated AC Voltage	440 V ac
	Rated DC Voltage	375 V dc
	Breaking Capacity	10kA
	Mount Type	DIN Rail
	Range	Acti9
	Series	Acti9 C120
	Terminal Type	Tunnel
	IP Rating	IP20
	Depth	81mm
	Height	81mm
	Standards/Approvals	RoHS, EAC, EN/IEC 60898-1, EN/IEC 60947-2, REACH
	Width	81 mm
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Toggle Switch
	Break Time	Instantaneous

	Select all
	Brand Schneider Electric
	Number of Poles 3
	Product Type Miniature Circuit Breaker
	Current Rating 125 A
	Tripping Characteristics Type C
	Rated AC Voltage 440 V ac
	Rated DC Voltage 375 V dc
	Breaking Capacity 10kA
	Mount Type DIN Rail
	Range Acti9
	Series Acti9 C120
	Terminal Type Tunnel
	IP Rating IP20
	Depth 81mm
	Height 81mm
	Standards/Approvals RoHS, EAC, EN/IEC 60898-1, EN/IEC 60947-2, REACH
	Width 81 mm
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Toggle Switch
	Break Time Instantaneous

COO (Country of Origin):: FR

Schneider Electric C120N Series MCB, 125A Current Rating, 3 Poles - A9N18369

This MCB is an essential component for electrical distribution systems, ensuring effective short circuit protection and reliable operation. The dimensions of this compact unit include a width and height of 81mm and a depth of 73mm, making it suitable for DIN rail mounting. Designed for a current rating of 125A, it supports both AC and DC applications with a rated voltage of up to 440V.

Features & Benefits

• Offers Type C tripping characteristics for medium load protection

• Equipped with thermal-magnetic technology for enhanced reliability

• Features tunnel terminal contacts for secure and easy wiring

• Supports installation on standard 35mm symmetrical DIN rails

• Designed for both operational isolation and distribution usage

Applications

• Utilised in commercial and industrial electrical panels

• Applied in automation systems requiring reliable circuit protection

• Effective in environments with varying electrical loads

• Suitable for use in mechanical and electrical installations

• Ideal for protecting sensitive equipment from overload conditions

What type of terminal connections does this device accommodate?

This circuit breaker features tunnel type terminals that can support rigid wires from 1 to 50 mm² and flexible wires from 1.5 to 35 mm², ensuring versatility and adaptability in various installations.

How does the breaking capacity of this unit compare for AC and DC applications?

For AC applications, it has a breaking capacity of 10kA for voltages up to 440V, while for DC applications, it is rated at 10kA for voltages up to 375V, confirming its efficacy in both system types.

What are the operational temperature limits for this circuit breaker?

The operational temperature range for this device is -25°C to 70°C, allowing it to function efficiently in diverse environmental conditions without compromising performance.
