Schneider Electric Acti9 Acti9 C120 Miniature Circuit Breaker, 3-Pole, 80A, Type C, 440V ac AC, 375 V dc DC, 10 kA

View all MCBs

Subtotal (1 unit)*

£333.67

(exc. VAT)

£400.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£333.67

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
776-3064
Mfr. Part No.:
A9N18365
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

3

Product Type

Miniature Circuit Breaker

Current Rating

80A

Tripping Characteristics

Type C

Rated AC Voltage

440V ac

Rated DC Voltage

375V dc

Breaking Capacity

10kA

Mount Type

DIN Rail

Range

Acti9

Series

Acti9 C120

Terminal Type

Tunnel

IP Rating

IP20

Standards/Approvals

RoHS, EAC, EN/IEC 60898-1, EN/IEC 60947-2, REACH

Height

81mm

Depth

81mm

Width

73mm

Better World Product

Yes

Tripping Mechanism

Thermal Magnetic

Reset Actuator Type

Toggle Switch

Break Time

Instantaneous

COO (Country of Origin):
FR

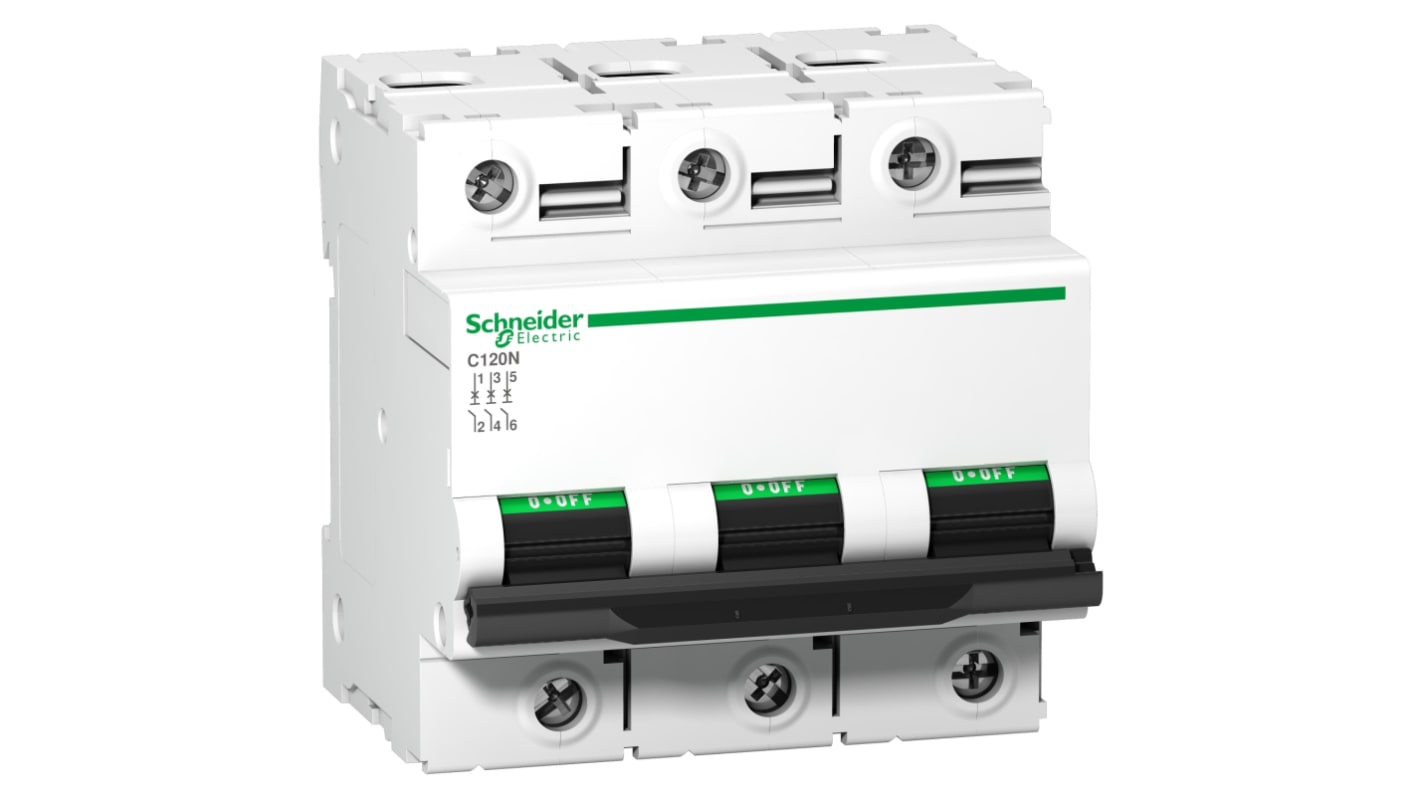

Schneider Electric C120N Series Circuit Breaker, 80A, DIN Rail Mounting Style - A9N18365


This circuit breaker is essential for current protection in electrical systems, playing a key role in safeguarding installations against overloads and short circuits. Its robust design and advanced technology make it suitable for a variety of environments, meeting the needs of professionals in electrical and automation sectors.

Features & Benefits


• Provides thermal-magnetic tripping for effective performance

• Supports a current rating of 80 A for solid protection

• Designed for DIN rail mounting to facilitate easy installation

• Complies with stringent safety standards

• Offers significant breaking capacity for improved circuit safety

• Holds Green Premium certification, indicating environmentally friendly operation

Applications


• Suitable for industrial circuit protection across various settings

• Ideal for 3 pole electrical circuits

• Effective for managing distribution in commercial environments

• Appropriate for use in installations with 440V AC systems

What is the suitable operational voltage for this circuit breaker?


The device effectively operates within the range of 220V to 440V AC and up to 375V DC.

How to install this component correctly?


It can be easily mounted on a 35mm symmetrical DIN rail, ensuring secure placement.

Is this product appropriate for high humidity environments?


Yes, it operates well in conditions of up to 95% relative humidity at 55°C.

What type of wire connections are required?


It accepts tunnel type terminals for rigid and flexible wires, with specific size ranges for each.

How does this circuit breaker contribute to energy efficiency?


Its Green Premium certification indicates compliance with modern environmental standards, thereby minimising ecological impact.
