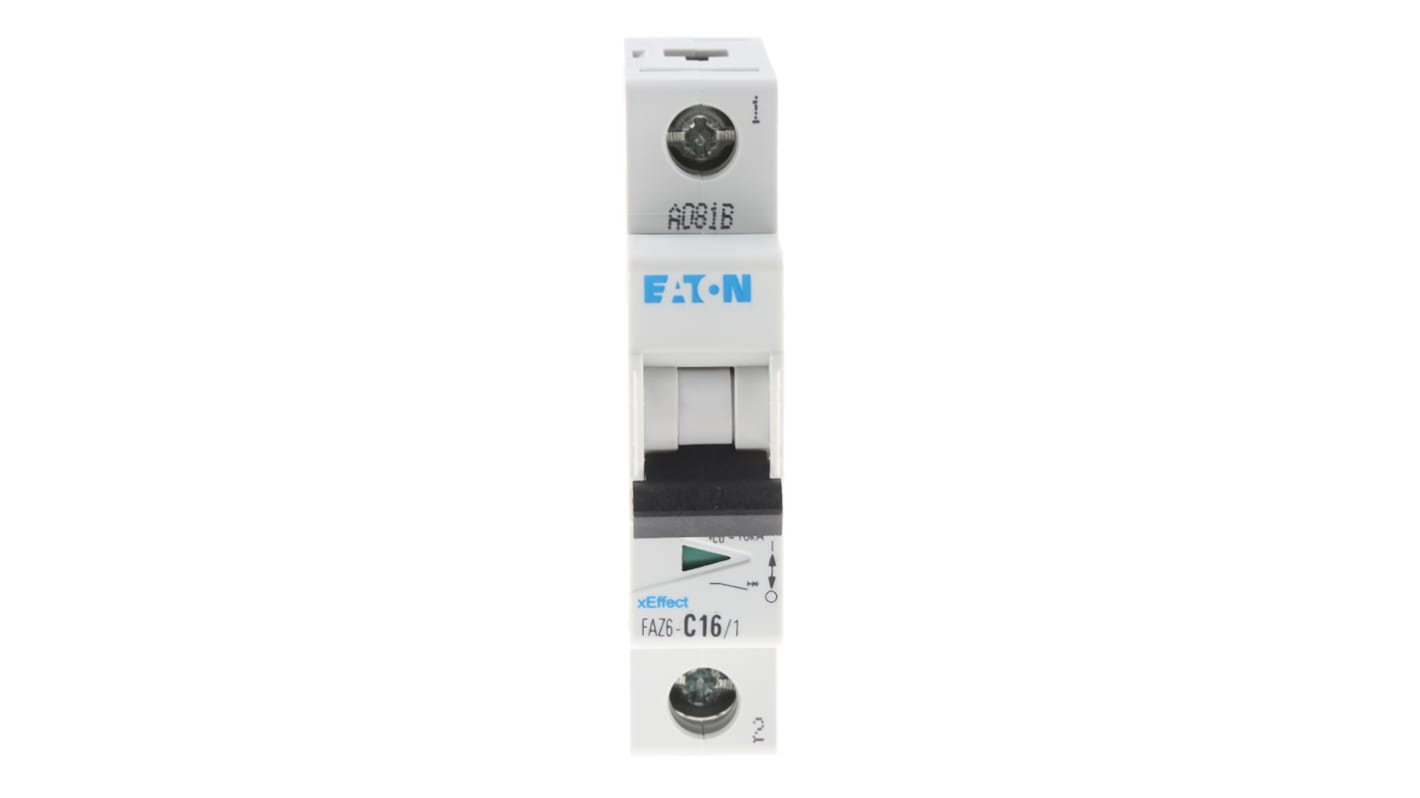

Eaton xEffect xEffect Miniature Circuit Breaker, 1-Pole, 16 A, Type C, 400 V AC, 6 kA Breaking Capacity

RS Stock No.:: 769-4560
Mfr. Part No.:: 239037 FAZ6-C16/1
Brand:: Eaton

Eaton xEffect xEffect Miniature Circuit Breaker, 1-Pole, 16 A, Type C, 400 V AC, 6 kA Breaking Capacity

Subtotal (1 unit)*

£20.67

(exc. VAT)

£24.80

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

22 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£20.67

*price indicative

RS Stock No.:: 769-4560
Mfr. Part No.:: 239037 FAZ6-C16/1
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Miniature Circuit Breaker
	Number of Poles	1
	Current Rating	16 A
	Tripping Characteristics	Type C
	Rated AC Voltage	400 V
	Mount Type	DIN Rail
	Breaking Capacity	6kA
	Range	xEffect
	Series	xEffect
	IP Rating	IP20
	Depth	62mm
	Width	62 mm
	Standards/Approvals	No
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Thermal Magnetic
	Break Time	Instantaneous

	Select all
	Brand Eaton
	Product Type Miniature Circuit Breaker
	Number of Poles 1
	Current Rating 16 A
	Tripping Characteristics Type C
	Rated AC Voltage 400 V
	Mount Type DIN Rail
	Breaking Capacity 6kA
	Range xEffect
	Series xEffect
	IP Rating IP20
	Depth 62mm
	Width 62 mm
	Standards/Approvals No
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Thermal Magnetic
	Break Time Instantaneous

Eaton MCB, 80 (L) x 17.5 (W) x 62mm (D), Up To 10,000 Operations Mechanical Lifespan - FAZ6 Series - 239037 FAZ6-C16/1

Block the path of faulty currents in your circuit with this MCB from Eaton. When it senses hazards, including short circuits or current overload, it swiftly cuts off the power supply. When the hazard is cleared, reset it with a flip of its toggle switch. A built-in contact indicator is on hand to show the unit's status, letting you configure it at a glance. Its type-C tripping characteristic means this breaker handles between five and ten times its 16A current rating. This means it's up to the challenge of shielding high-power systems such as lighting fixtures.

Features & Benefits

• Mechanical lifespan of more than 10,000 operations for durable performance

• Integrated protection to prevent electric shocks from contact with your fingers or the back of your hand

• Line-side or load-side supply connection for versatility

How do I connect cables to this miniature circuit breaker?

Thanks to its twin-purpose terminals, you can insert wires through the top or bottom of the MCB, giving you a free hand when setting up the cable connection.

How do I mount the MCB?

You can mount this unit by simply clipping it onto a DIN rail, so there's no need for tools.

Note

Eaton formerly known as Moeller
