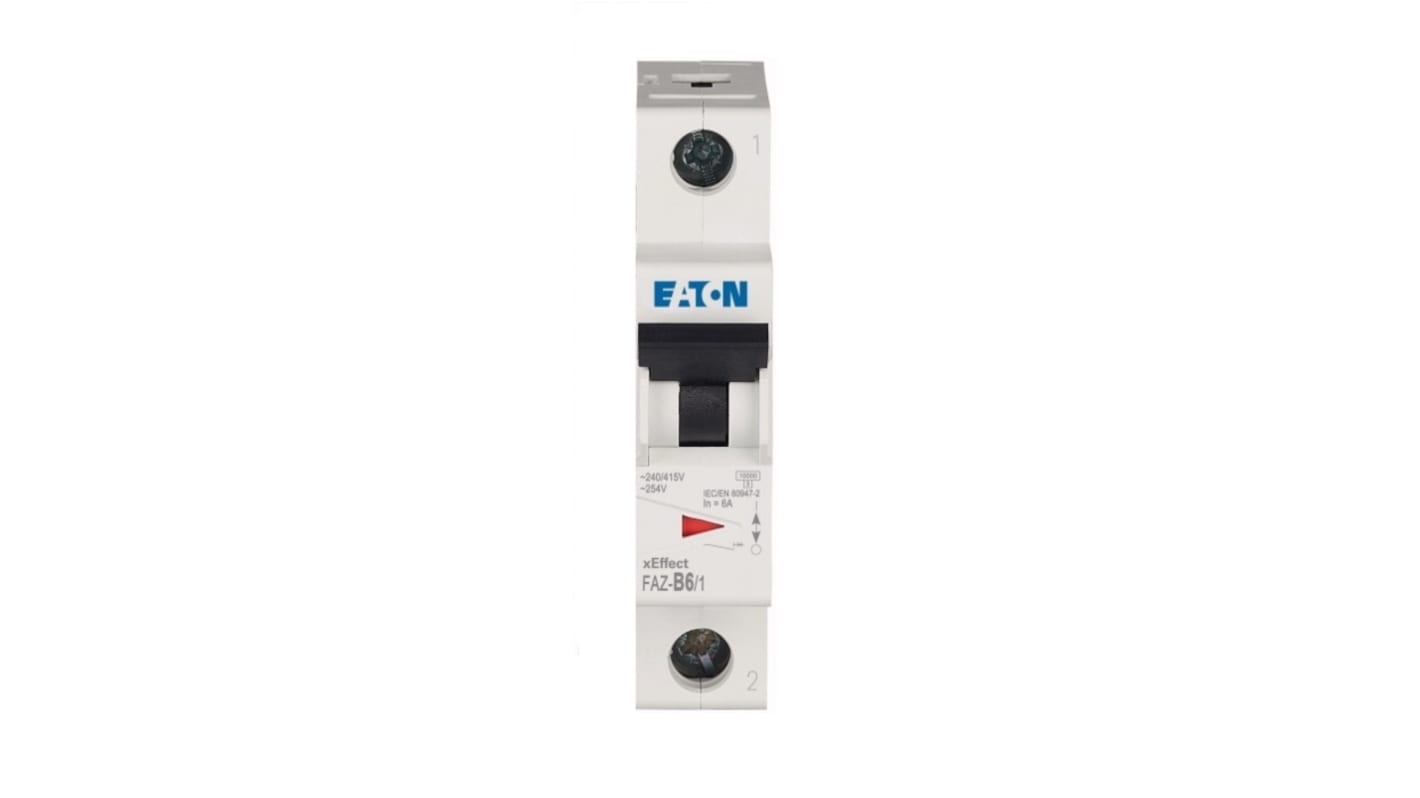

Eaton xEffect MCB, 1P, 6A Curve B, 230 → 400V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 769-4488
- Mfr. Part No.:
- 239001 FAZ6-B6/1
- Brand:
- Eaton
Subtotal (1 unit)*
£22.30
(exc. VAT)
£26.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.30 |
*price indicative
- RS Stock No.:
- 769-4488
- Mfr. Part No.:
- 239001 FAZ6-B6/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Current Rating | 6A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 230 → 400V | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Range | xEffect | |
| Circuit Breaker Type | MCB | |
| Length | 80mm | |
| Width | 17.5mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 62mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 6A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230 → 400V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 80mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 62mm | ||
Eaton MCB, 230V AC Voltage Rating, 6A Current Rating - xEffect Series - 239001 FAZ6-B6/1
Looking for a reliable circuit protection solution for your electrical systems? Choose this MCB from Eaton. Its thermoplastic housing makes it resistant to mechanical impact and abrasion, so you can rely on it in harsh environments. The twin-purpose terminals let you feed power to this MCB from the load or line side of the circuit, making it a versatile tool to suit your setup's design. You'll commonly find it used in residential lighting systems, as well as domestic appliances with resistive elements.
Features & Benefits
• Designed for DIN rail mounting for simple, tool-free installation
• Voltage rating of 230V AC for use in low-power systems
• Long lifespan of more than 10,000 operations ensures long-term performance
• Voltage rating of 230V AC for use in low-power systems
• Long lifespan of more than 10,000 operations ensures long-term performance
Can I use this MCB in high temperatures?
This MCB has a wide operating temperature range of -40°C to +75°C, so it's suitable for use in demanding conditions.
What's the difference between an MCB and a fuse?
A fuse is a sacrificial device that you need to replace after it's blown, while a circuit breaker can be reset and reused after it's tripped.
Note
Eaton formerly known as Moeller
FAZ MCB's
