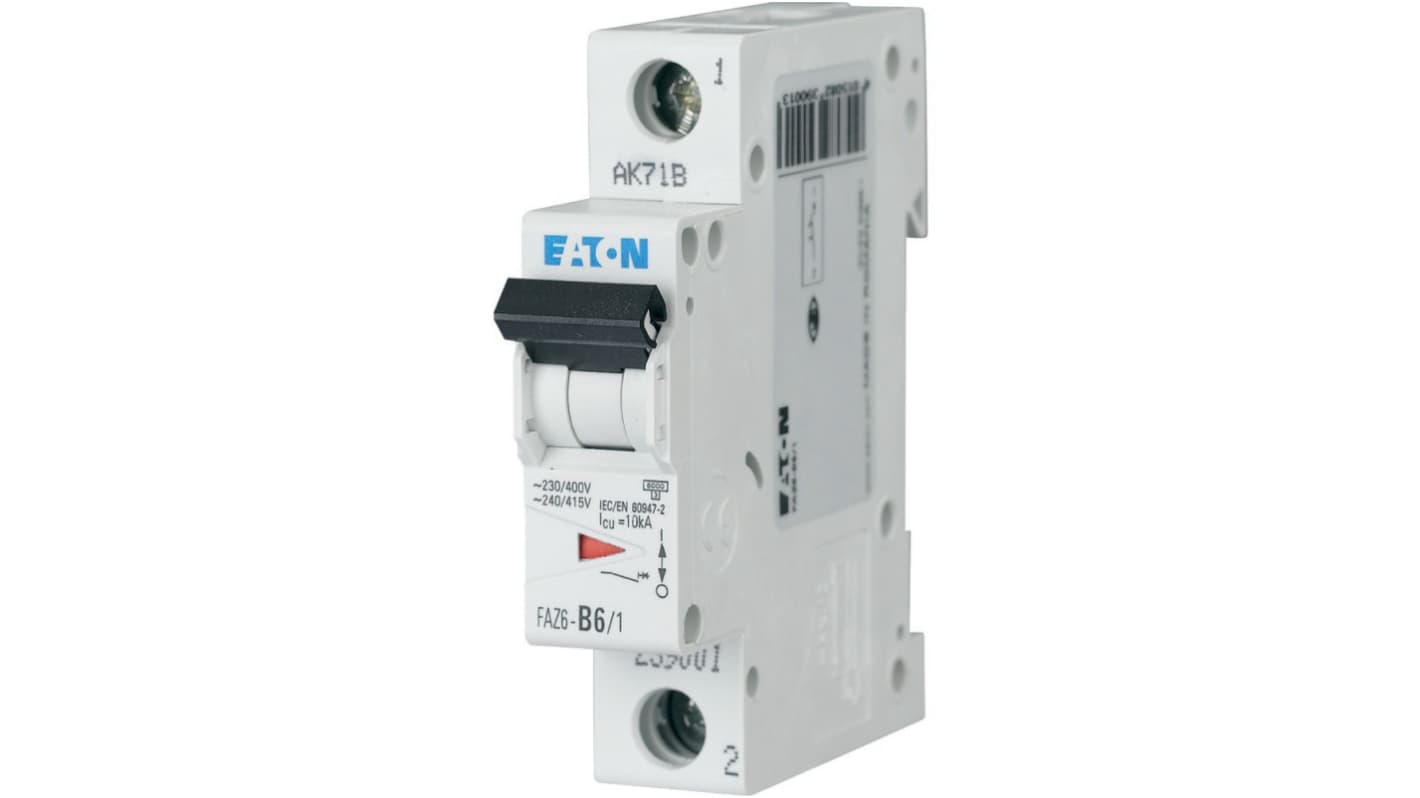

Eaton xEffect FAZ6 Miniature Circuit Breaker, 1-Pole, 6A, Type B, 230V ac AC, 60 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 247-539
- Mfr. Part No.:
- 150690 FAZ6-B6/1-SA
- Brand:
- Eaton
Subtotal (1 unit)*
£31.15
(exc. VAT)
£37.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 8 unit(s) shipping from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.15 |
*price indicative
- RS Stock No.:
- 247-539
- Mfr. Part No.:
- 150690 FAZ6-B6/1-SA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 6A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 230V ac | |
| Rated DC Voltage | 60V dc | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ6 | |
| IP Rating | IP20 | |
| Standards/Approvals | RoHS | |
| Width | 17.5mm | |
| Height | 73mm | |
| Depth | 85mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 6A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230V ac | ||
Rated DC Voltage 60V dc | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ6 | ||
IP Rating IP20 | ||
Standards/Approvals RoHS | ||
Width 17.5mm | ||
Height 73mm | ||
Depth 85mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton MCB is a 6 A miniature circuit breaker designed for AC applications, with a current limiting class of 3 and a characteristic curve of B, SA. It supports conductor cross sections ranging from 1 mm² to 25 mm² for both multi wired and solid core connections.
RoHS compliant
IP20 protection rated
