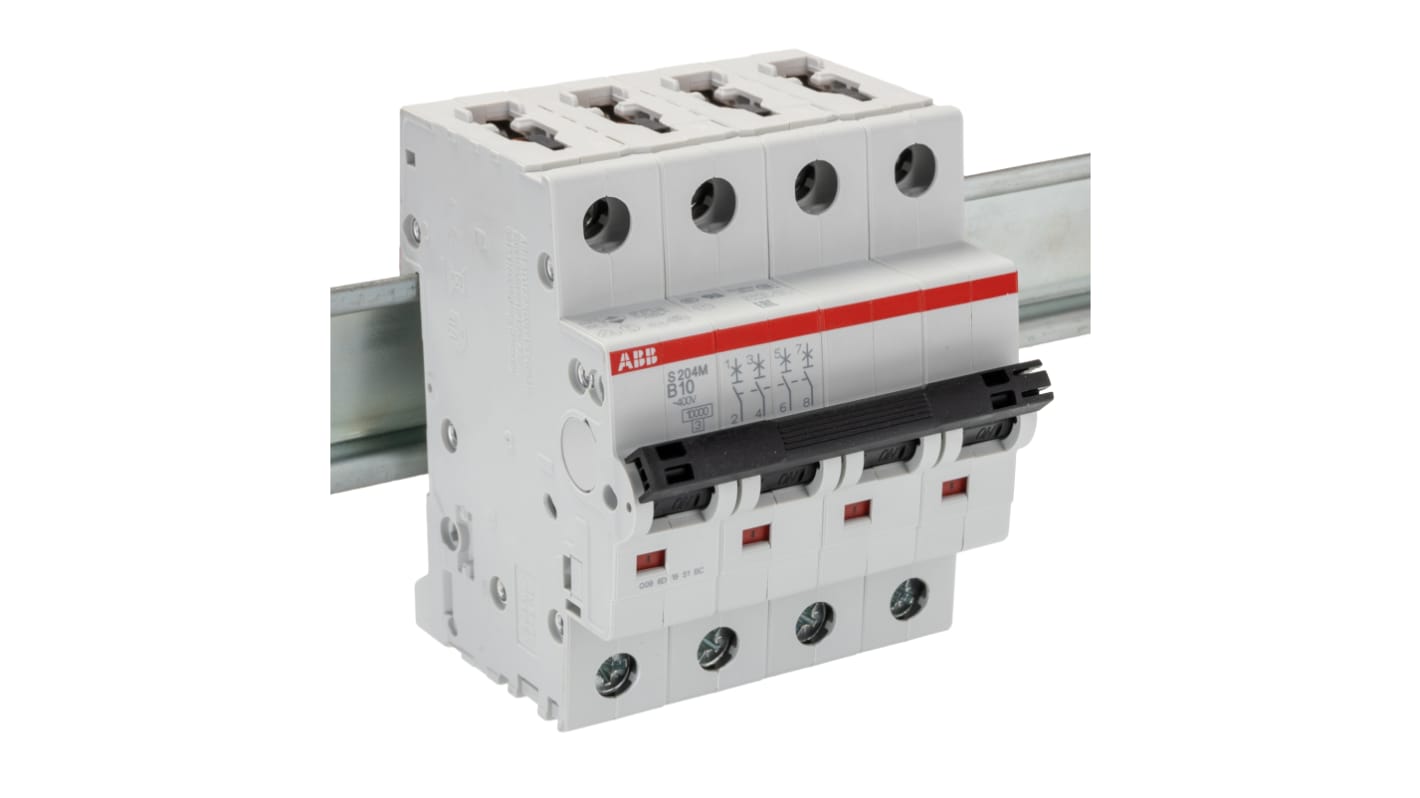

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 10A, Type B, 400V ac AC, 12 V dc DC, 15 kA Breaking
- RS Stock No.:
- 746-8080
- Mfr. Part No.:
- 2CDS274001R0105 S204M-B10
- Brand:
- ABB
Subtotal (1 unit)*
£131.55
(exc. VAT)
£157.86
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £131.55 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 746-8080
- Mfr. Part No.:
- 2CDS274001R0105 S204M-B10
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 4 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 12V dc | |
| Breaking Capacity | 15kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200M | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Depth | 69mm | |
| Height | 88mm | |
| Width | 70mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Reset Actuator Type | Lever | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 4 | ||
Current Rating 10A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 12V dc | ||
Breaking Capacity 15kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200M | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Depth 69mm | ||
Height 88mm | ||
Width 70mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Reset Actuator Type Lever | ||
Tripping Mechanism Thermal, Electromechanic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB S200M Series MCB, 10A Current Rating, 15kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS274001R0105 S204M-B10
This MCB is intended for efficient circuit protection across various electrical applications. Commonly used in commercial and industrial environments, it protects electrical circuits from overloads and short circuits, improving operational safety. The device incorporates advanced features, making it a vital component for contemporary electrical systems, ensuring reliability and longevity.
Features & Benefits
• 4P configuration provides versatile circuit protection
• Current rating of 10A accommodates diverse Applications
• Type B tripping characteristics effectively respond to overloads
• Rated for 400V operation, suitable for high voltage environments
• Includes short circuit protection to maintain system integrity
• Thermal electromechanical operation ensures prompt disconnection
Applications
• Circuit protection for industrial machinery
• Suitable for electrical installations in commercial buildings
• Ideal for automation systems needing dependable circuit integrity
• Utilised in control panels to regulate electrical flow
How does the tripping mechanism work in this product?
The tripping mechanism combines thermal and electromechanical elements, ensuring rapid disconnection during faults.
Is this suitable for use in controlling motors?
Yes, it can efficiently protect motors from overload conditions in various setups.
Can it be installed in existing electrical panels?
It is designed for DIN rail mounting, facilitating straightforward installation in standard panels.
What maintenance does it require over time?
Routine visual inspections are advised to confirm proper operation and spot any signs of wear or damage.
How do I determine the right specifications for my application?
Assess your circuit's voltage and current requirements alongside the device's specifications to ensure compatibility.
