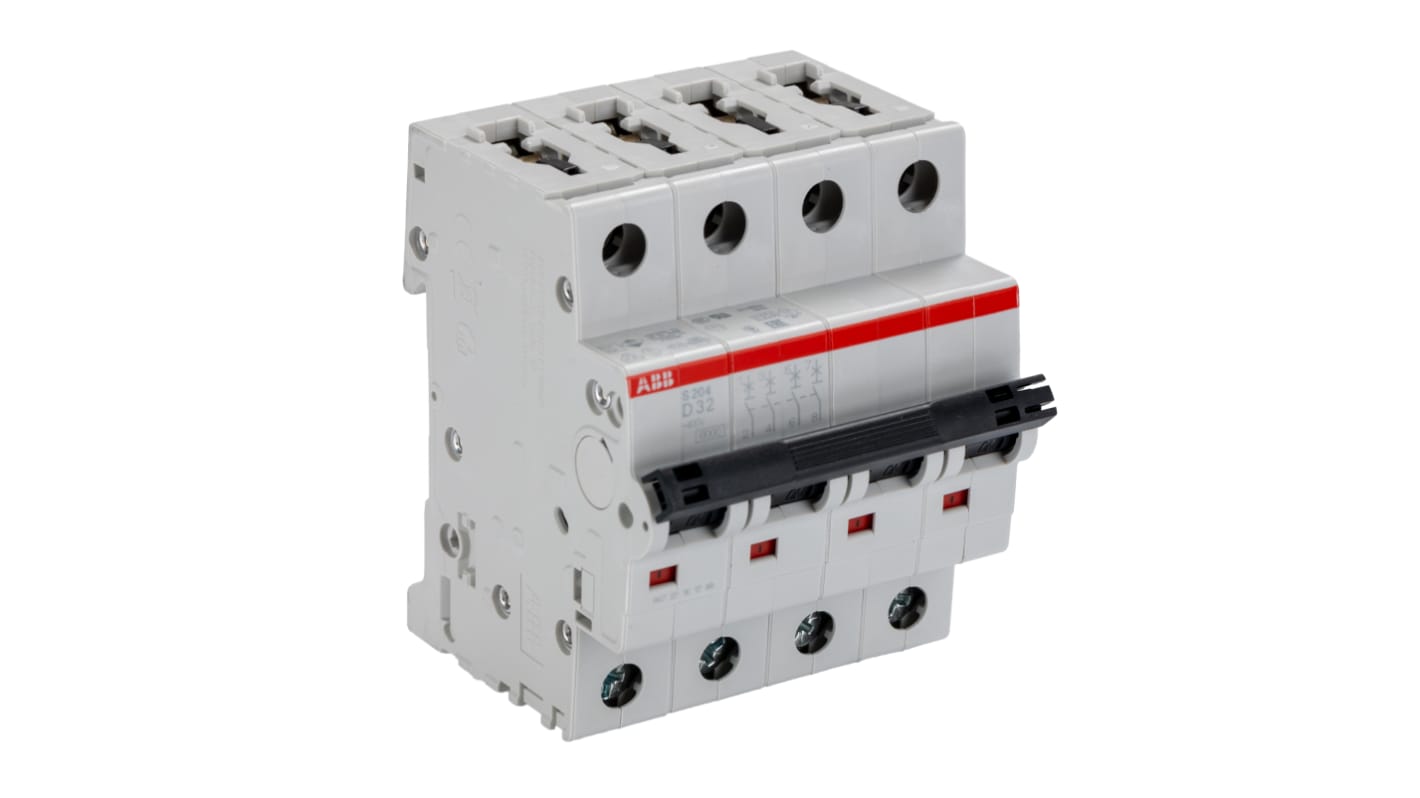

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 32A, Type D, 400V ac AC, 10 kA Breaking Capacity

RS Stock No.:: 746-7936
Mfr. Part No.:: 2CDS254001R0321 S204-D32
Brand:: ABB

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 32A, Type D, 400V ac AC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£174.69

(exc. VAT)

£209.63

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£174.69

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 746-7936
Mfr. Part No.:: 2CDS254001R0321 S204-D32
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	4
	Product Type	Miniature Circuit Breaker
	Current Rating	32A
	Tripping Characteristics	Type D
	Rated AC Voltage	400V ac
	Mount Type	DIN Rail
	Breaking Capacity	10kA
	Range	System Pro M Compact
	Series	S200
	Terminal Type	Screw
	IP Rating	IP20, IP40
	Depth	69mm
	Height	69mm
	Width	70mm
	Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
	Better World Claim	Designed for Disassembly
	Better World Product	Yes
	Tripping Mechanism	Electromagnetic, Thermomagnetic
	Reset Actuator Type	Lever

	Select all
	Brand ABB
	Number of Poles 4
	Product Type Miniature Circuit Breaker
	Current Rating 32A
	Tripping Characteristics Type D
	Rated AC Voltage 400V ac
	Mount Type DIN Rail
	Breaking Capacity 10kA
	Range System Pro M Compact
	Series S200
	Terminal Type Screw
	IP Rating IP20, IP40
	Depth 69mm
	Height 69mm
	Width 70mm
	Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2
	Better World Claim Designed for Disassembly
	Better World Product Yes
	Tripping Mechanism Electromagnetic, Thermomagnetic
	Reset Actuator Type Lever

RoHS Status: Exempt

COO (Country of Origin):: DE

ABB S200 Series MCB, 32A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS254001R0321 S204-D32

This MCB offers robust performance suitable for both commercial and industrial applications. It acts as a vital safety component, providing essential short circuit protection for safeguarding circuits. With a current rating of 32A, it efficiently handles significant electrical loads, making it crucial for dependable electrical installations and management.

Features & Benefits

• Short circuit protection defends electrical systems against overloads

• 4-pole configuration improves circuit control and reliability

• Type D characteristics are intended for high inrush conditions

• DIN rail mounting makes installation alongside other devices straightforward

• Thermal electromechanical mechanism ensures precise tripping functionality

• Designed for disassembly, supporting sustainable product lifecycle management

Applications

• Utilised in industrial settings for electrical distribution management

• Suitable for commercial that require high reliability

• Ideal for automation systems that need circuit protection

• Employed in complex machinery to guard against electrical faults

What installation methods are recommended for this device?

The device is designed for easy installation on standard DIN rails, allowing for quick and secure mounting.

How does this product handle high inrush currents?

It features Type D characteristics specifically designed for applications with high starting currents, thus preventing nuisance tripping.

Can it be integrated with other electrical safety devices?

Yes, it operates effectively alongside various electrical safety devices, enhancing overall system protection.

What type of reset mechanism is available?

A lever reset actuator provides a straightforward manual reset after a trip event, ensuring ease of use.

Is this device suitable for outdoor use?

It is primarily intended for indoor installations; for outdoor applications, ensure it is housed within a suitable enclosure to protect against environmental factors.
