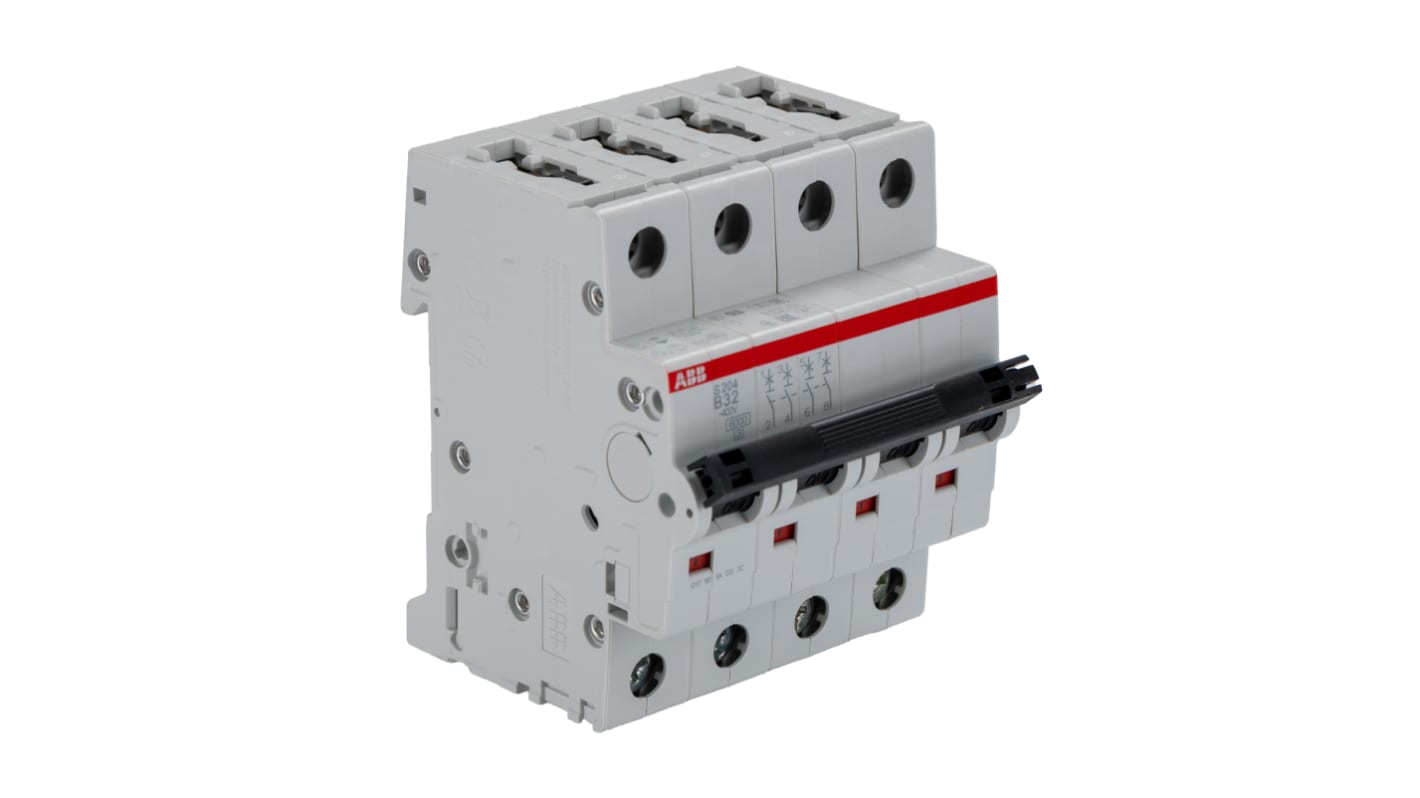

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 32A, Type B, 400V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 746-7630
- Mfr. Part No.:
- 2CDS254001R0325 S204-B32
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£155.87
(exc. VAT)
£187.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £155.87 |
| 5 - 9 | £148.08 |
| 10 - 24 | £140.29 |
| 25 - 49 | £132.49 |
| 50 + | £124.70 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 746-7630
- Mfr. Part No.:
- 2CDS254001R0325 S204-B32
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 32A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP40, IP20 | |
| Depth | 69mm | |
| Width | 70mm | |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 | |
| Height | 69mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Tripping Mechanism | Thermomagnetic, Electromagnetic | |
| Reset Actuator Type | Lever | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 32A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200 | ||
Terminal Type Cage Terminal | ||
IP Rating IP40, IP20 | ||
Depth 69mm | ||
Width 70mm | ||
Standards/Approvals IEC/EN 60947-2, IEC/EN 60898-1 | ||
Height 69mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Tripping Mechanism Thermomagnetic, Electromagnetic | ||
Reset Actuator Type Lever | ||
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 32A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS254001R0325 S204-B32
This MCB is a vital component for electrical systems, designed to provide circuit protection for various commercial and industrial applications. It safeguards electrical circuits against overloads and short circuits, ensuring safety and operational continuity. With a current rating of 32 A and a breaking capacity of 10 kA, this circuit breaker is suited for challenging environments.
Features & Benefits
• Offers short circuit protection to prevent equipment damage
• Type B characteristics increase compatibility with various loads
• Thermal electromechanical tripping mechanism ensures quick response
• Designed for easy installation on DIN rail systems
• Includes screw terminals for secure electrical contacts
• Compliant with Better World initiative for sustainable operations
Applications
• Suitable for circuit protection in commercial facilities
• Ideal for industrial machinery requiring robust safety measures
• Applicable in automation systems with varying load types
• Used in electrical panels for enhanced safety compliance
What type of loads can be connected to this unit?
It is compatible with resistive and inductive loads typically found in various applications.
How is the installation process for this unit?
Installation can be easily performed on a DIN rail, providing convenience for professionals.
What maintenance does this unit require?
Regular inspections for any signs of wear and secure connections are recommended to ensure optimal performance.
Can this unit be used in residential applications?
While primarily designed for commercial and industrial use, it may also be suitable for residential electrical circuits depending on specific requirements.
What happens if the circuit trips?
If the circuit trips, it indicates a fault; it is advisable to investigate the cause before resetting to prevent potential risks.
