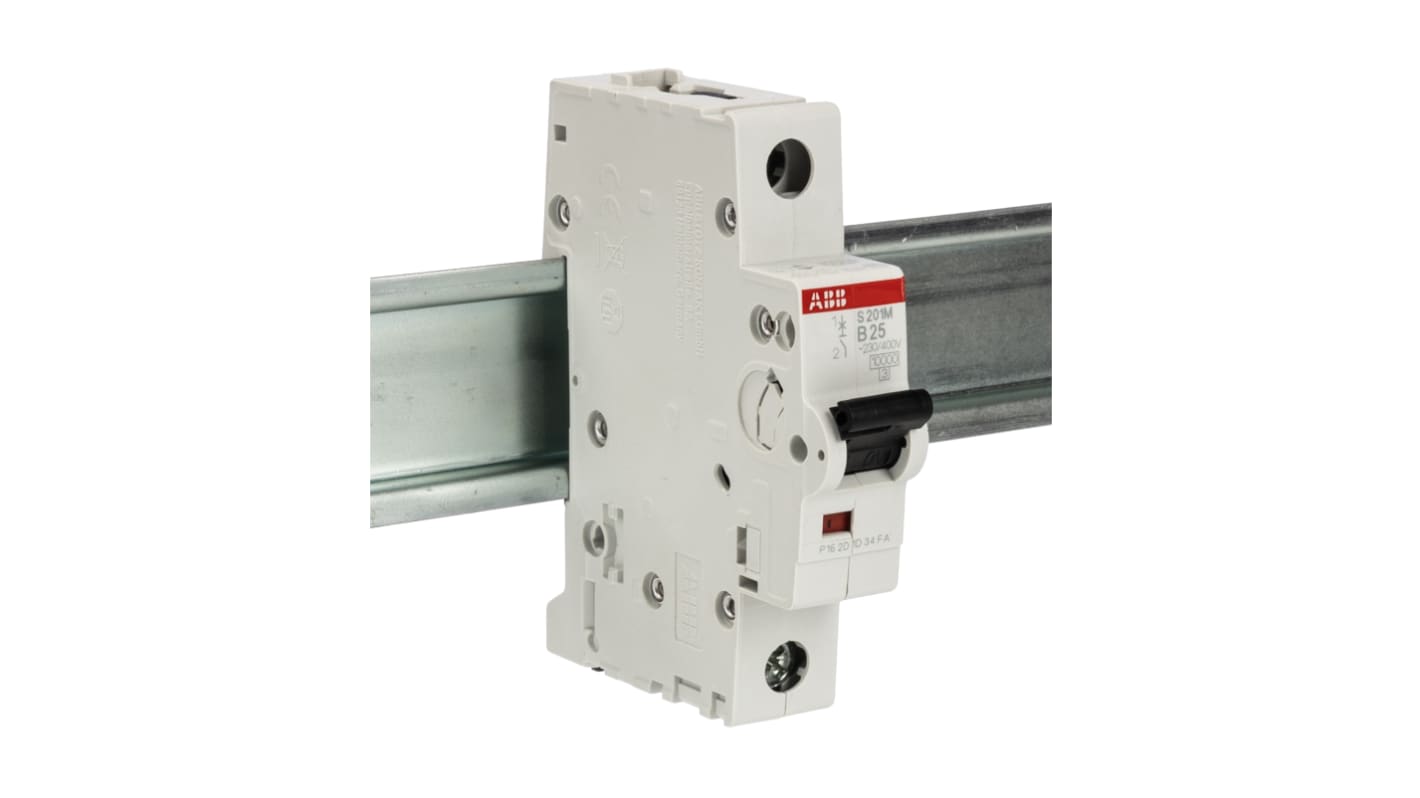

ABB System Pro M Compact S200M MCB, 1P, 25A Curve B, 253V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 535-6011
- Mfr. Part No.:
- 2CDS271001R0255 S201M-B25
- Brand:
- ABB
Subtotal (1 unit)*
£18.34
(exc. VAT)
£22.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £18.34 |
*price indicative
- RS Stock No.:
- 535-6011
- Mfr. Part No.:
- 2CDS271001R0255 S201M-B25
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 25A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 253V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | System Pro M Compact | |
Series | S200M | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Model Number | S201M-B25 | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 253V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range System Pro M Compact | ||
Series S200M | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Model Number S201M-B25 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB S200M Series MCB, 25A, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS271001R0255 S201M-B25
This miniature circuit breaker is designed to offer crucial protection in various electrical installations. With a current rating of 25A, it is particularly effective for commercial and industrial applications. The device features a Type B tripping characteristic, which ensures it trips under overload conditions, thus protecting connected equipment and wiring from potential damage.
Features & Benefits
• Provides short circuit protection to enhance safety
• Utilises a thermal electromechanical mechanism for broader functionality
• Rated breaking capacity of up to 10kA to manage fault scenarios
• Suitable for diverse environments due to a wide operational voltage range
• Eco-friendly design compliant with circular economy standards
• Utilises a thermal electromechanical mechanism for broader functionality
• Rated breaking capacity of up to 10kA to manage fault scenarios
• Suitable for diverse environments due to a wide operational voltage range
• Eco-friendly design compliant with circular economy standards
Applications
• Protection in commercial power distribution systems
• Safeguarding industrial machinery and equipment
• Installation in electrical panels for overload protection
• Utilised in automation systems requiring dependable circuit oversight
• Safeguarding industrial machinery and equipment
• Installation in electrical panels for overload protection
• Utilised in automation systems requiring dependable circuit oversight
What types of risks does it protect against in electrical installations?
It protects against overloads and short circuits, reducing damage risks.
How does installation work with standard mounting rails?
The device mounts easily onto DIN rails, ensuring a secure fit and simple setup.
Can this be used in residential applications?
Yes, it meets standards suitable for residential, commercial, and industrial settings.
What is the maintenance requirement for this device?
Regular inspections are recommended to ensure proper functionality and to clean terminals.
Is this model compatible with existing electrical systems?
It is designed to integrate smoothly into current electrical infrastructure, provided specifications are adhered to.
Standards
BS EN 60898
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
