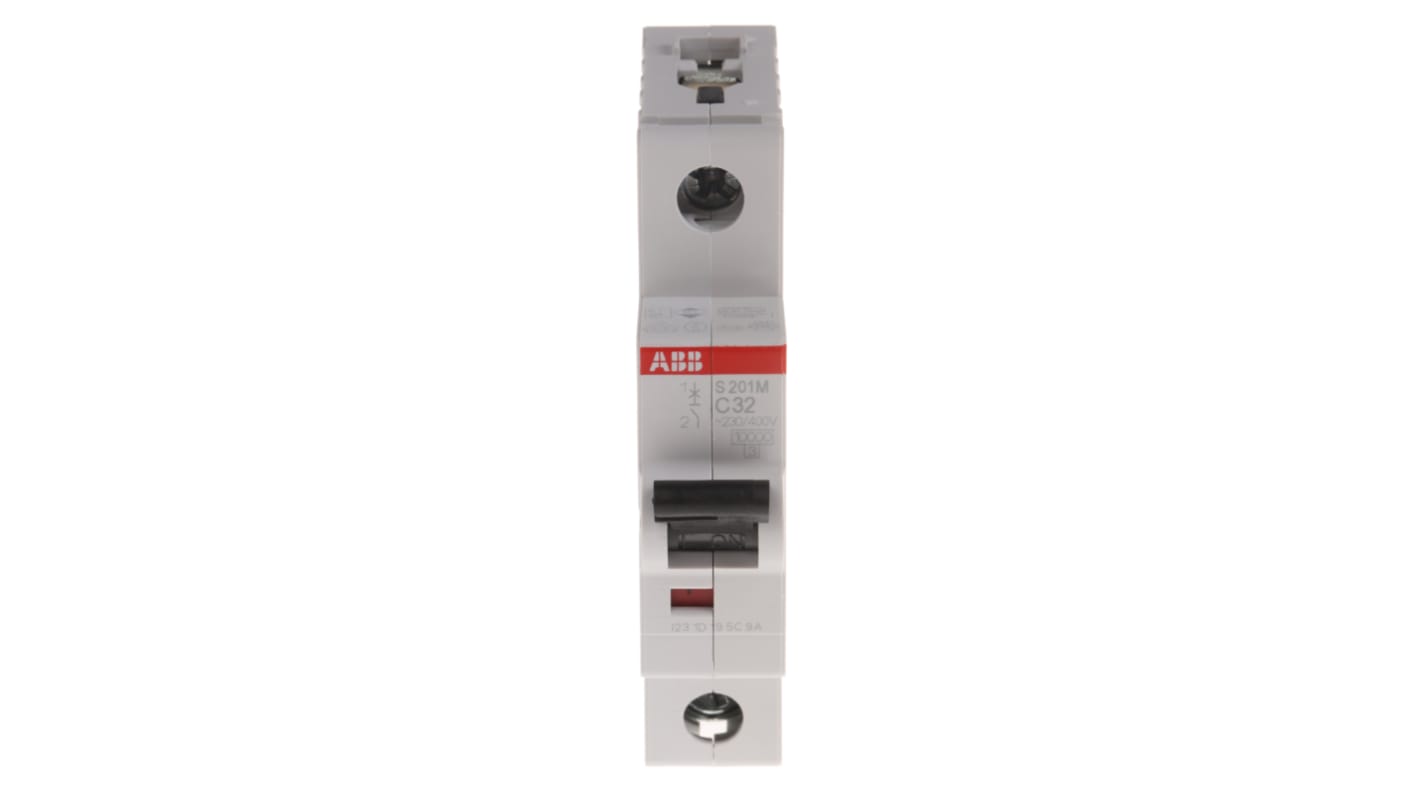

ABB System Pro M Compact S200M MCB, 1P, 32A Curve C, 253V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 535-4188
- Distrelec Article No.:
- 304-22-310
- Mfr. Part No.:
- 2CDS271001R0324 S201M-C32
- Brand:
- ABB
Subtotal (1 unit)*
£18.34
(exc. VAT)
£22.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £18.34 |
*price indicative
- RS Stock No.:
- 535-4188
- Distrelec Article No.:
- 304-22-310
- Mfr. Part No.:
- 2CDS271001R0324 S201M-C32
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 32A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 253V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | System Pro M Compact | |
Series | S200M | |
Circuit Breaker Type | MCB | |
Width | 17.5mm | |
Length | 88mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Model Number | S201M-C32 | |
Application | Commercial, Residential | |
Reset Actuator Type | Toggle Switch | |
Terminal Contact Type | Screw | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 32A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 253V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range System Pro M Compact | ||
Series S200M | ||
Circuit Breaker Type MCB | ||
Width 17.5mm | ||
Length 88mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Model Number S201M-C32 | ||
Application Commercial, Residential | ||
Reset Actuator Type Toggle Switch | ||
Terminal Contact Type Screw | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB MCB, DIN Rail Mounting, 230V AC Voltage Rating - System Pro M Compact Series - 2CDS271001R0324
To prevent electrical faults from burning out your equipment, turn to this MCB from ABB. Its electromechanical and thermal tripping mechanisms protect devices from short circuits and overloads for enhanced safety in your work environment. As it has type-C tripping characteristics, this unit breaks a connected circuit in a jiffy when it detects currents between five and 10 times the current rating of 32A. This means you can count on it to hold its own in heavy-duty conditions.
Features & Benefits
• Red and green indicators clearly show the 'on' and 'off' positions for ease of use
• Bi-directional cylinder-lift screw terminals reduce wiring errors and boost the security of your electrical connections
• Safe for use in demanding environments, thanks to a broad operating temperature range between -25°C and +55°C
• Bi-directional cylinder-lift screw terminals reduce wiring errors and boost the security of your electrical connections
• Safe for use in demanding environments, thanks to a broad operating temperature range between -25°C and +55°C
Applications
• HVAC systems
• Electric motors
• Lighting rigs
• Office equipment
• Electric motors
• Lighting rigs
• Office equipment
How do I mount this MCB?
This MCB is designed for mounting on a DIN rail, so it's a breeze to install without rummaging in your kit for special tools.
Standards
BS EN 60898
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
