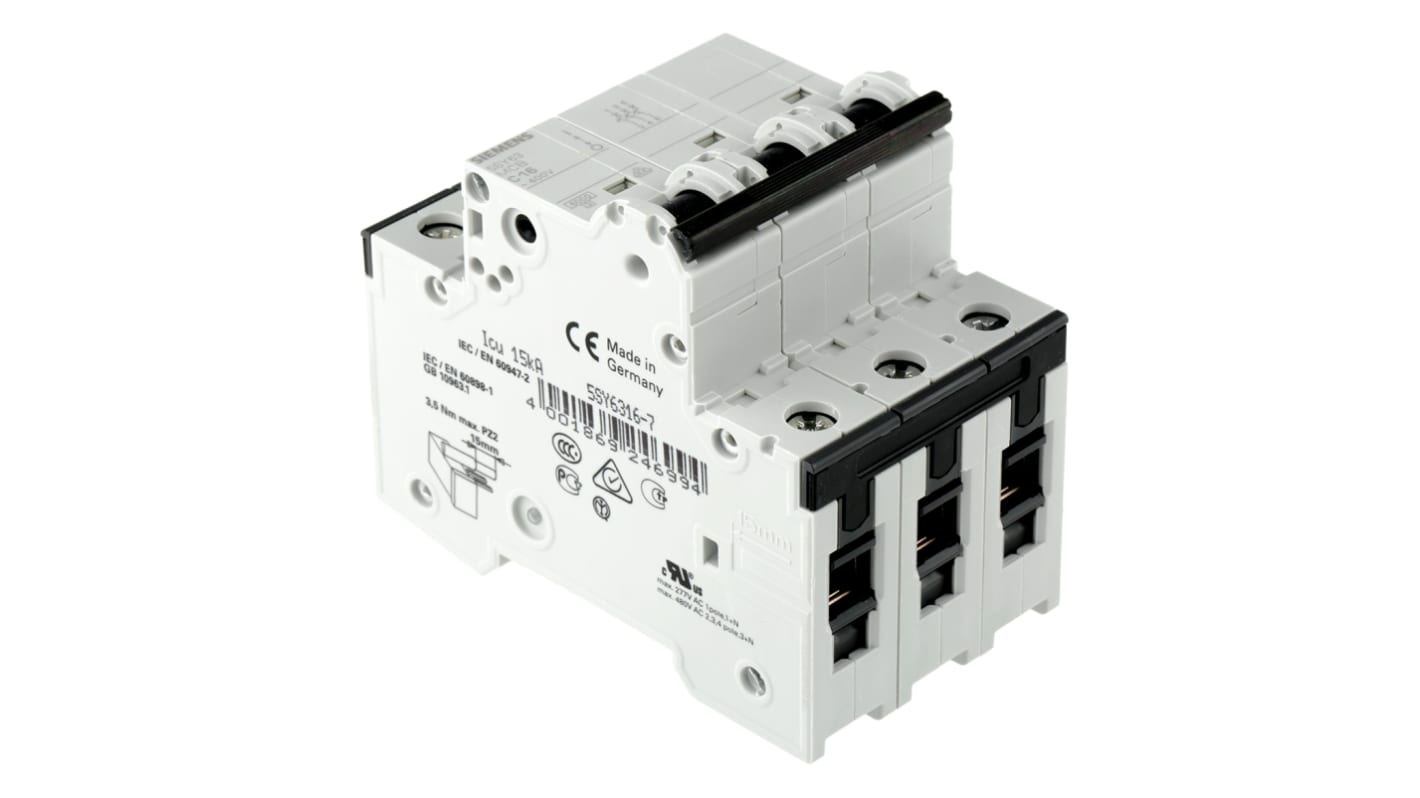

Siemens Sentron 5SY6 MCB, 3P, 16A Curve C, 400V AC, 72V DC, 6 kA Breaking Capacity
- RS Stock No.:
- 489-6710
- Mfr. Part No.:
- 5SY6316-7
- Brand:
- Siemens
Subtotal (1 unit)*
£68.54
(exc. VAT)
£82.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 33,333,333 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.54 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 489-6710
- Mfr. Part No.:
- 5SY6316-7
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Poles | 3 | |
| Current Rating | 16A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V | |
| Rated DC Voltage | 72V | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Range | Sentron | |
| Series | 5SY6 | |
| Circuit Breaker Type | MCB | |
| Length | 89.8mm | |
| Width | 53mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 76mm | |
| Better World Claim | Extended product life | |
| Better World Product | Yes | |
| Terminal Contact Type | Screw | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Poles 3 | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range Sentron | ||
Series 5SY6 | ||
Circuit Breaker Type MCB | ||
Length 89.8mm | ||
Width 53mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Better World Claim Extended product life | ||
Better World Product Yes | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- DE
Siemens MCB, Shock and Vibration Resistant, DIN Rail Mounting - SENTRON Series - 5SY6316-7
Stop electrical hazards in their tracks with this Siemens MCB. As a type-C breaker with three poles, it instantly trips up to three circuits whenever it detects a voltage overload. It also shuts off if it receives between five and ten times its rated current of 16A. This means it protects people and critical equipment by reducing the risk of injury or fire and prevents electrical damage. Thanks to the product's shock and vibration resistance, it also holds its own against impacts and the frequent machine movements common to industrial applications.
Features & Benefits
• Low power loss of 1.6W makes this an energy-efficient choice
• IP20-rated, so it won't shock you if you touch it with your fingers or any object over 12mm
• Performs safely in harsh environments, thanks to an operating temperature range of -25°C to +55°C
• IP20-rated, so it won't shock you if you touch it with your fingers or any object over 12mm
• Performs safely in harsh environments, thanks to an operating temperature range of -25°C to +55°C
How do I mount this MCB?
Thanks to the handy snap-on mechanism, this MCB's a breeze to mount or remove from a 35mm DIN rail without any tools. If you want to screw it securely in place once it's on your DIN rail, the breaker's tightening torque between 2.5 and 3.5Nm lets you do it with a simple screwdriver.
Standards
EN 60898, VDE 0641 part of 11, IEC 60898
