ABB System Pro M Compact S200 MCB, 1P, 20A Curve C, 253V AC, 72V DC, 6 kA Breaking Capacity
- RS Stock No.:
- 488-7340
- Mfr. Part No.:
- 2CDS251001R0204 - S201C20
- Brand:
- ABB

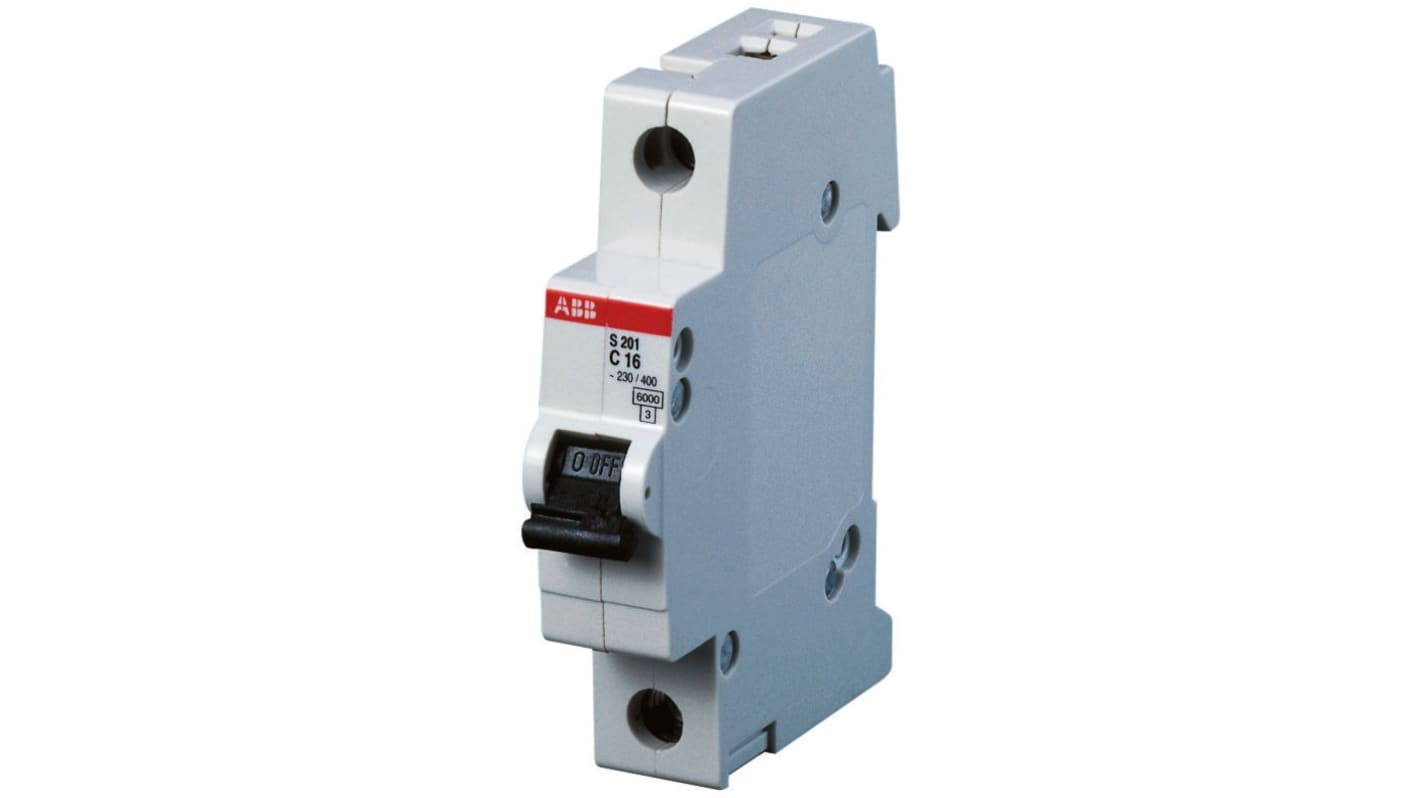

Image representative of range
Subtotal (1 unit)*
£16.45
(exc. VAT)
£19.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £16.45 |
*price indicative
- RS Stock No.:
- 488-7340
- Mfr. Part No.:
- 2CDS251001R0204 - S201C20
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 20A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 253V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | System Pro M Compact | |
Series | S200 | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Model Number | S201-C20 | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 20A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 253V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Model Number S201-C20 | ||
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 20A, 6kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS251001R0204 - S201C20
This miniature circuit breaker (MCB) is designed for effective overload and short circuit protection in various commercial and industrial settings. It incorporates essential safety features and adheres to international standards, ensuring efficient electrical management. The MCB functions at a rated current of 20A and boasts a Type C tripping characteristic for enhanced performance.
Features & Benefits
• 1 Pole design allows for easy installation in DIN rail configurations
• Thermal electromechanical tripping mechanism provides dependable protection
• Compliant with IEC/EN standards for high levels of safety
• 6kA breaking capacity delivers robust short circuit protection
• Compact design with options for auxiliary contacts
• Versatile for use in both commercial and industrial environments
• Thermal electromechanical tripping mechanism provides dependable protection
• Compliant with IEC/EN standards for high levels of safety
• 6kA breaking capacity delivers robust short circuit protection
• Compact design with options for auxiliary contacts
• Versatile for use in both commercial and industrial environments
Applications
• Suitable for overload protection in automation systems
• Ideal for industrial machinery and electrical control panels
• Appropriate for automation and control applications in commercial establishments
• Enhances safety in electrical distribution systems
• Ideal for industrial machinery and electrical control panels
• Appropriate for automation and control applications in commercial establishments
• Enhances safety in electrical distribution systems
What is the operating temperature range for proper functionality?
The operating temperature range is between -25°C and +55°C, ensuring performance across various conditions.
Can it be easily mounted on existing systems?
Yes, it is designed for straightforward installation on standard DIN rails.
Is it suitable for residential applications?
This device is primarily intended for commercial and industrial use, providing robust performance in such environments.
What components can be connected to this circuit breaker?
It accommodates various terminal sizes, ensuring compatibility with both flexible and rigid conductors.
How to ensure its longevity?
Routine inspections and proper maintenance will help sustain functionality and extend its service life.
