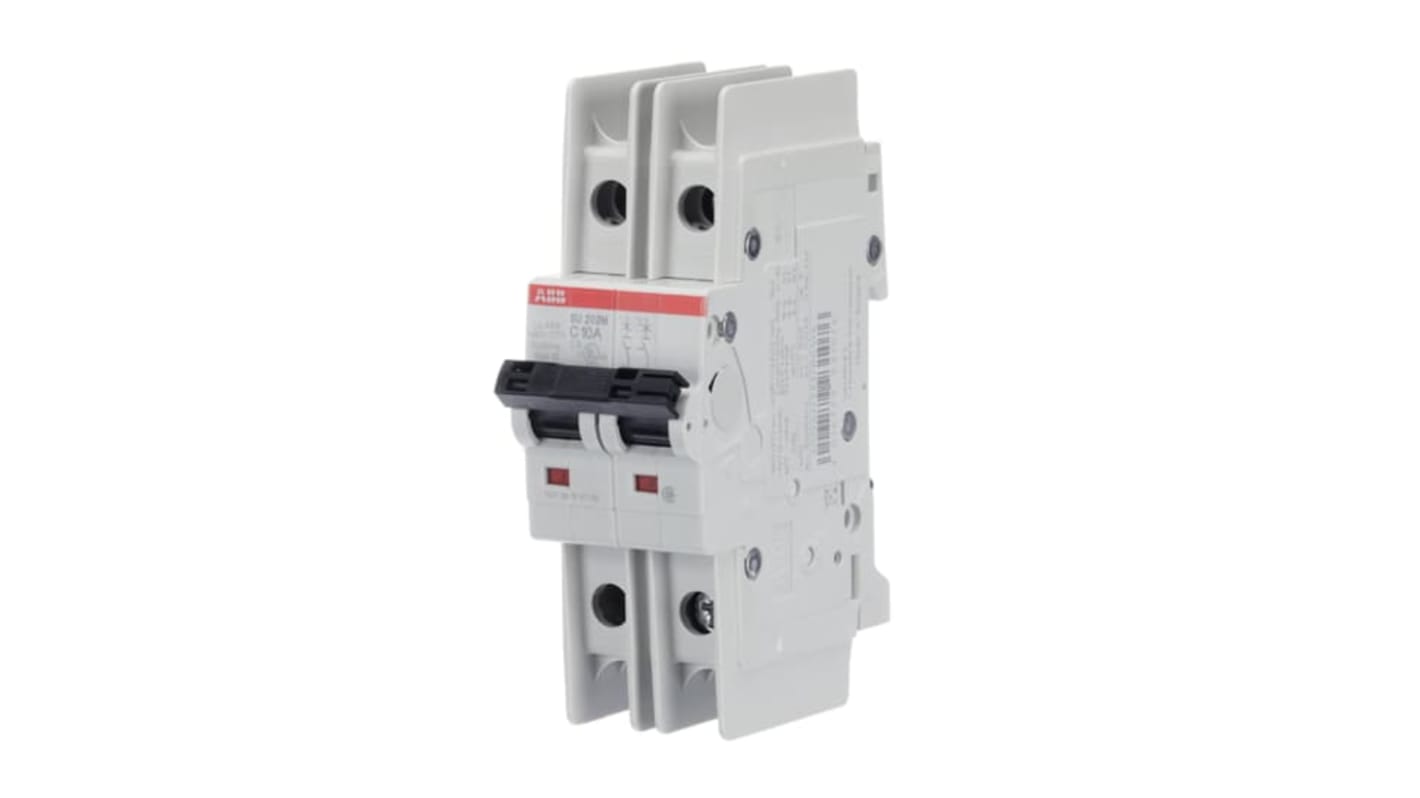

ABB SU200 M SU200 M Circuit Breaker, 2-Pole, 10A, Type C, 440V ac AC, 96 V dc DC, 15 kA Breaking Capacity
- RS Stock No.:
- 287-6392
- Distrelec Article No.:
- 303-11-519
- Mfr. Part No.:
- 2CDS272337R0104
- Brand:
- ABB
Subtotal (1 unit)*
£75.35
(exc. VAT)
£90.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £75.35 |
*price indicative
- RS Stock No.:
- 287-6392
- Distrelec Article No.:
- 303-11-519
- Mfr. Part No.:
- 2CDS272337R0104
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440V ac | |
| Rated DC Voltage | 96V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 15kA | |
| Range | SU200 M | |
| Series | SU200 M | |
| Terminal Type | Screw | |
| IP Rating | IP40 | |
| Width | 35mm | |
| Standards/Approvals | UL489 | |
| Height | 111mm | |
| Depth | 69mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V ac | ||
Rated DC Voltage 96V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 15kA | ||
Range SU200 M | ||
Series SU200 M | ||
Terminal Type Screw | ||
IP Rating IP40 | ||
Width 35mm | ||
Standards/Approvals UL489 | ||
Height 111mm | ||
Depth 69mm | ||
- COO (Country of Origin):
- DE
The ABB Miniature Circuit Breaker is a reliable solution for protecting electrical circuits. With a tripping characteristic of C, it offers a rated operational voltage of 440 V AC and a rated current of 10 A. The UL489 rated breaker has a rated short-circuit capacity of 11.2 kA and a rated ultimate short-circuit breaking capacity of 15 kA. It is designed for precision and efficiency in circuit protection applications.
Tripping characteristic of C for optimal circuit protection
Rated operational voltage of 440 V AC ensures compatibility with various systems
UL489 rated with a rated short-circuit capacity of 11.2 kA
Rated ultimate short-circuit breaking capacity of 15 kA for enhanced safety
Energy limiting class 3 for efficient power management
Mechanical endurance of 20,000 cycles for long-lasting performance
Overvoltage Category III for added protection
Environmental resistance to temperatures ranging from -25 to +55 degrees Celsius
