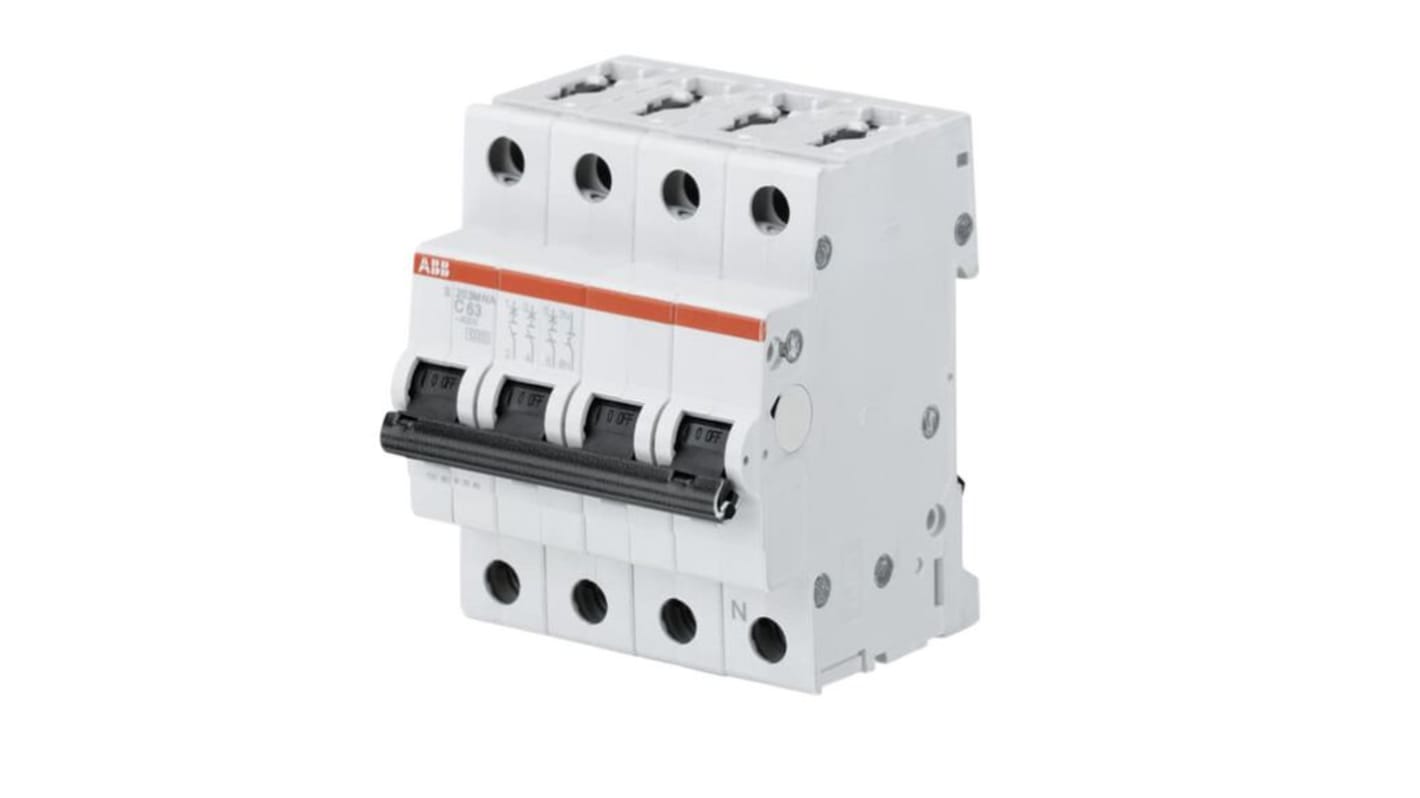

ABB S200M S200M Circuit Breaker, 3+N-Pole, 16A, Type C, 440V ac AC, 125 V dc DC, 15 kA Breaking Capacity
- RS Stock No.:
- 287-6390
- Distrelec Article No.:
- 303-11-526
- Mfr. Part No.:
- 2CDS273103R0164
- Brand:
- ABB
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 287-6390
- Distrelec Article No.:
- 303-11-526
- Mfr. Part No.:
- 2CDS273103R0164
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3+N | |
| Product Type | Circuit Breaker | |
| Current Rating | 16A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440V ac | |
| Rated DC Voltage | 125V dc | |
| Breaking Capacity | 15kA | |
| Mount Type | DIN Rail | |
| Range | S200M | |
| Series | S200M | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP40 | |
| Standards/Approvals | CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | |
| Width | 70mm | |
| Depth | 69mm | |
| Height | 88mm | |
| Reset Actuator Type | Toggle | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3+N | ||
Product Type Circuit Breaker | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V ac | ||
Rated DC Voltage 125V dc | ||
Breaking Capacity 15kA | ||
Mount Type DIN Rail | ||
Range S200M | ||
Series S200M | ||
Terminal Type Screw | ||
IP Rating IP20, IP40 | ||
Standards/Approvals CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | ||
Width 70mm | ||
Depth 69mm | ||
Height 88mm | ||
Reset Actuator Type Toggle | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- DE
ABB S200M Series Circuit Breaker, 16A Current, 125V dc Rated Voltage - 2CDS273103R0164
This circuit breaker provides overcurrent protection for three-phase installations with a NEUTRAL conductor and is designed for DIN-rail mounting in electrical panels. It operates on combined thermal and electromechanical tripping principles to interrupt faults across a range of AC and DC systems and includes a toggle reset actuator for manual reclosure.
Features and Benefits:
• 15kA breaking capacity offers high fault interruption performance
• Type C tripping limits nuisance trips while protecting inductive loads
• 440V AC rating enables use across low-voltage three-phase networks
• Screw terminals ensure secure conductor termination under vibration
• IP20/IP40 protection supports indoor panel and enclosed cabinet use
• Type C tripping limits nuisance trips while protecting inductive loads
• 440V AC rating enables use across low-voltage three-phase networks
• Screw terminals ensure secure conductor termination under vibration
• IP20/IP40 protection supports indoor panel and enclosed cabinet use
Applications
• Suitable for three-phase distribution boards with NEUTRAL
• Ideal for circuits supplying moderate inductive loads
• Used with DIN-rail mounts in control panels
• Can be used for 125V DC auxiliary power protection
• Suitable for installations requiring manual toggle reset
• Ideal for circuits supplying moderate inductive loads
• Used with DIN-rail mounts in control panels
• Can be used for 125V DC auxiliary power protection
• Suitable for installations requiring manual toggle reset
How many poles does it provide and what is the configuration?
It contains three live poles Plus a NEUTRAL pole to ensure simultaneous switching of conductors.
What type of Terminal connection is used for wiring?
Wiring is secured via screw-type terminals designed for standard cable terminations.
Which tripping mechanisms are employed and how do they respond?
It uses thermal elements for overload detection and an electromechanical release for instantaneous fault interruption.
What mounting method is required for installation?
It is intended for mounting on a standard DIN rail within electrical enclosures.
