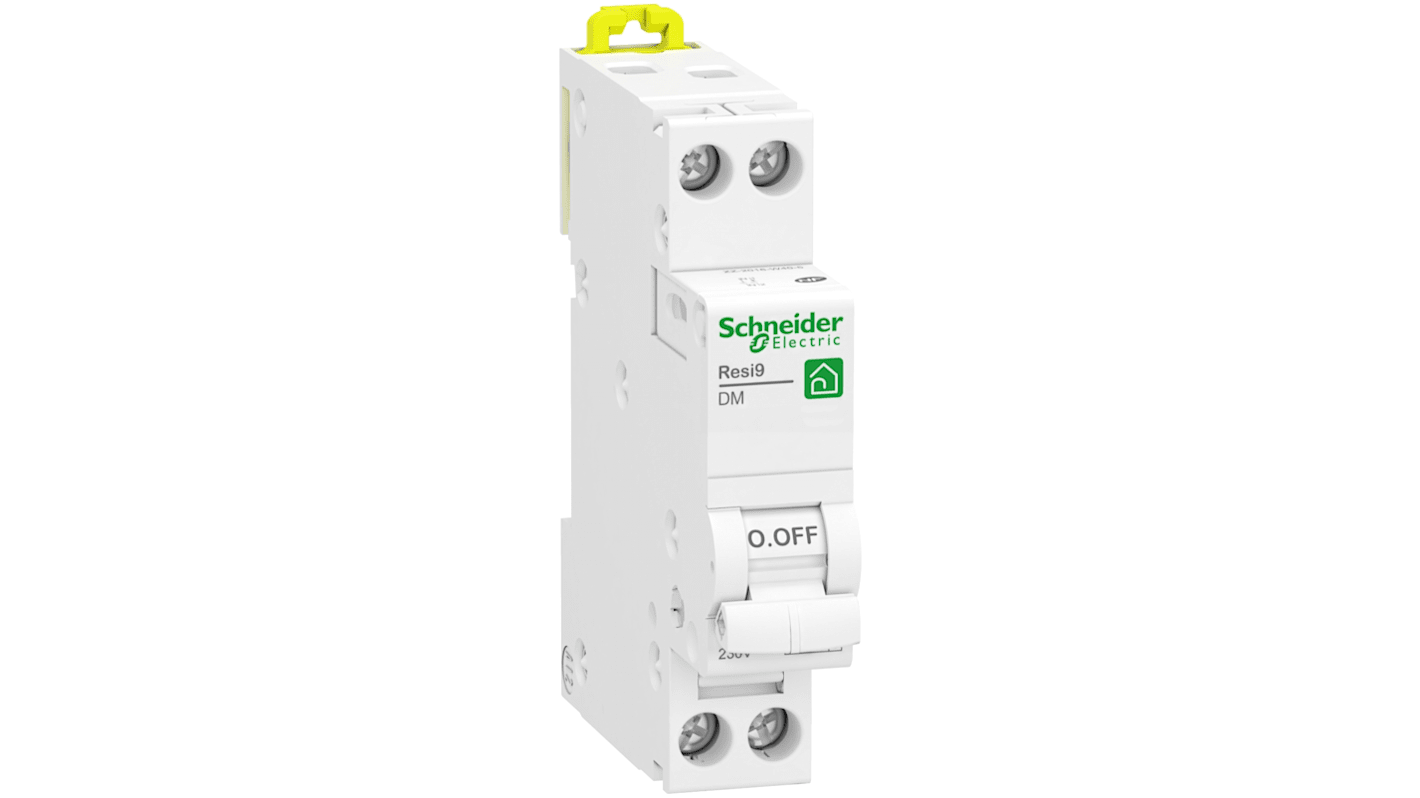

Schneider Electric Resi9 Resi9 XP DM MCB, 1+N, 32A Curve D, 230V AC, 3000 A Breaking Capacity
- RS Stock No.:
- 287-6096
- Mfr. Part No.:
- R9PFD632
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£18.70
(exc. VAT)
£22.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £18.70 |
*price indicative
- RS Stock No.:
- 287-6096
- Mfr. Part No.:
- R9PFD632
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Number of Poles | 1+N | |
Current Rating | 32A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 230V | |
Breaking Capacity at Maximum Voltage Rating | 3000 A | |
Range | Resi9 | |
Series | Resi9 XP DM | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Number of Poles 1+N | ||
Current Rating 32A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230V | ||
Breaking Capacity at Maximum Voltage Rating 3000 A | ||
Range Resi9 | ||
Series Resi9 XP DM | ||
- COO (Country of Origin):
- FR
The Schneider Electric Resi9 XP DM Miniature Circuit Breaker is a reliable and efficient device designed for distribution application. With a D curve code and 3000A breaking capacity, this MCB ensures safety and protection against overloads and short circuits, making it a vital component for residential electrical systems.
1P + N poles configuration with 32A rated current for effective protection
Thermal-magnetic trip unit technology for reliable operation
Toggle control type with ON/OFF indication for easy monitoring
DIN rail mounting support with clip-on installation for convenience
IP20 degree of protection and IP40 modular enclosure for durability
Thermal-magnetic trip unit technology for reliable operation
Toggle control type with ON/OFF indication for easy monitoring
DIN rail mounting support with clip-on installation for convenience
IP20 degree of protection and IP40 modular enclosure for durability
