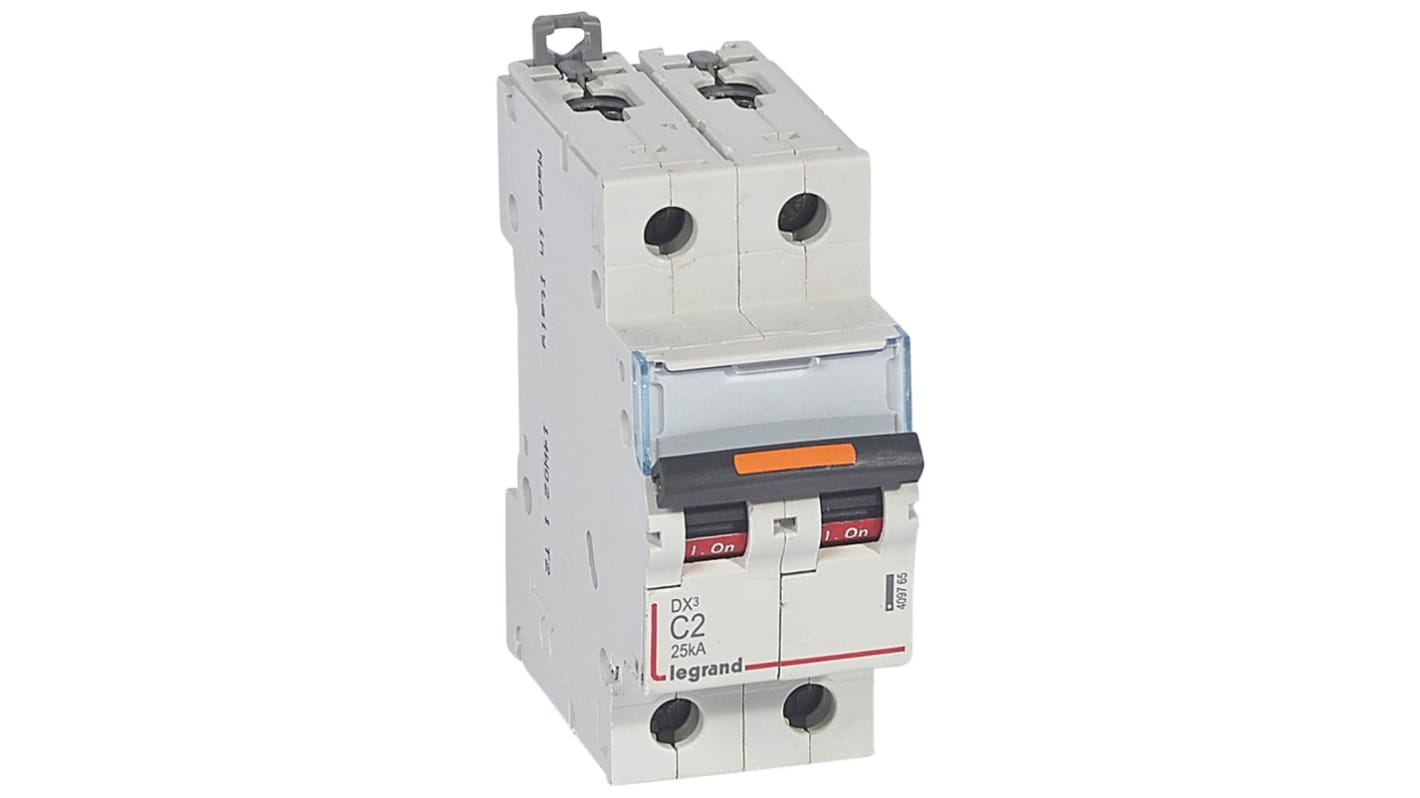

Legrand DX3 DX3 Circuit Breaker, 2-Pole, 2 A, Type C, 400 V AC, 400 V DC, 25 kA Breaking Capacity
- RS Stock No.:
- 266-1342
- Mfr. Part No.:
- 409765
- Brand:
- Legrand
Subtotal (1 unit)*
£209.99
(exc. VAT)
£251.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £209.99 |
*price indicative
- RS Stock No.:
- 266-1342
- Mfr. Part No.:
- 409765
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Number of Poles | 2 | |
| Product Type | Circuit Breaker | |
| Current Rating | 2 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400 V | |
| Rated DC Voltage | 400 V | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 25kA | |
| Range | DX3 | |
| Series | DX3 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Width | 35.4 mm | |
| Standards/Approvals | RoHS, REACH | |
| Depth | 77.8mm | |
| Height | 94.8mm | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Number of Poles 2 | ||
Product Type Circuit Breaker | ||
Current Rating 2 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400 V | ||
Rated DC Voltage 400 V | ||
Mount Type DIN Rail | ||
Breaking Capacity 25kA | ||
Range DX3 | ||
Series DX3 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Width 35.4 mm | ||
Standards/Approvals RoHS, REACH | ||
Depth 77.8mm | ||
Height 94.8mm | ||
- COO (Country of Origin):
- IT
The Legrand DX, bipolar magneto thermal modular circuit breaker with fully apparent breaking for the control, protection and isolation of electrical circuits. It is output protection high input and low output by screw terminals.
Gray color
IP20 protection class
Halogen free
