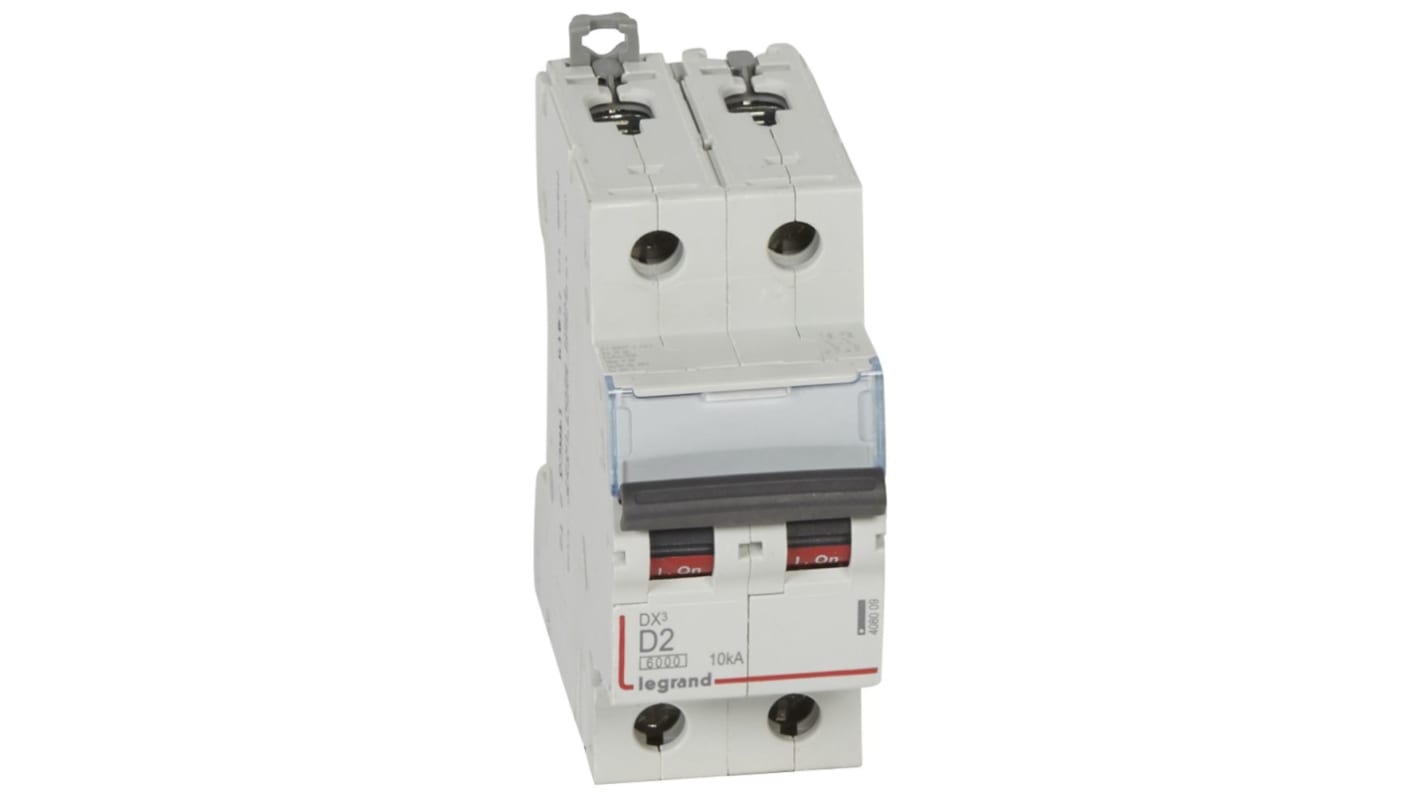

Legrand DX3 DX3 Circuit Breaker, 2-Pole, 2 A, Type D, 400 V AC, 400 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 266-1327
- Mfr. Part No.:
- 408009
- Brand:
- Legrand
Subtotal (1 unit)*
£150.98
(exc. VAT)
£181.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £150.98 |
*price indicative
- RS Stock No.:
- 266-1327
- Mfr. Part No.:
- 408009
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Product Type | Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 2 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 400 V | |
| Rated DC Voltage | 400 V | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 10kA | |
| Range | DX3 | |
| Series | DX3 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Height | 94.8mm | |
| Standards/Approvals | REACH, RoHS | |
| Width | 35.4 mm | |
| Depth | 77.8mm | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Product Type Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 2 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400 V | ||
Rated DC Voltage 400 V | ||
Mount Type DIN Rail | ||
Breaking Capacity 10kA | ||
Range DX3 | ||
Series DX3 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Height 94.8mm | ||
Standards/Approvals REACH, RoHS | ||
Width 35.4 mm | ||
Depth 77.8mm | ||
- COO (Country of Origin):
- IT
The Legrand DX, bipolar magneto thermal modular circuit breaker with fully apparent breaking for the control, protection and isolation of electrical circuits. Fitted with a label holder for quick and easy visual identification of the protected circuit, immediate visual indication of the ON and OFF status on the handle in green and red.
Gray color
IK02 impact resistance
Halogen free
