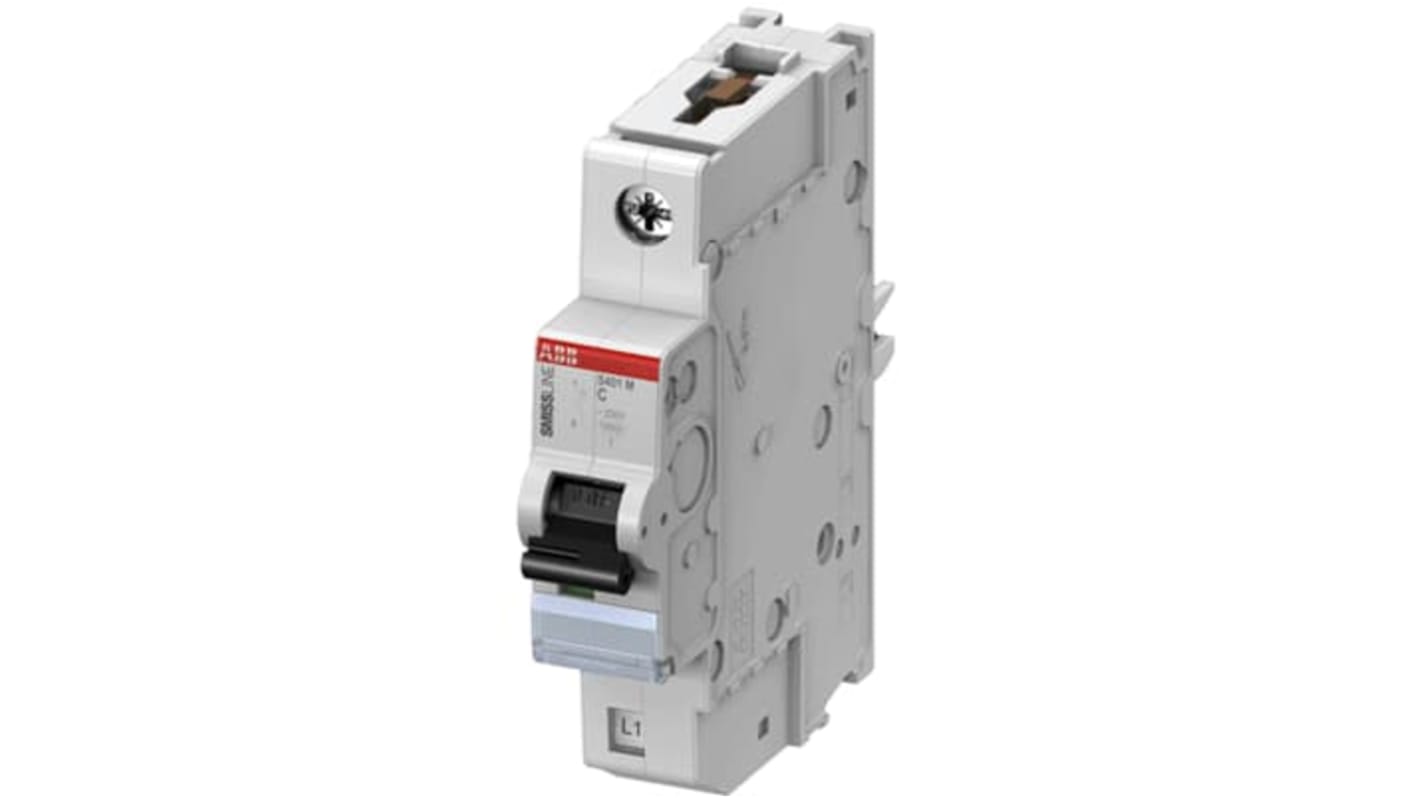

ABB SMISSLINE TP S401M-C0.5 Miniature Circuit Breaker, 1-Pole, 500 mA, Type C, 240 V ac AC, 50 kA Breaking Capacity
- RS Stock No.:
- 246-2502
- Mfr. Part No.:
- 2CCS571001R0984 S401M-C0.5
- Brand:
- ABB
Subtotal (1 unit)*
£33.31
(exc. VAT)
£39.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.31 |
*price indicative
- RS Stock No.:
- 246-2502
- Mfr. Part No.:
- 2CCS571001R0984 S401M-C0.5
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 500 mA | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240 V ac | |
| Breaking Capacity | 50kA | |
| Mount Type | DIN Rail | |
| Range | SMISSLINE TP | |
| Series | S401M-C0.5 | |
| Terminal Type | Screw | |
| Height | 91mm | |
| Depth | 75mm | |
| Width | 18 mm | |
| Standards/Approvals | IEC/EN 60898-1 IEC/EN 60947-2 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 500 mA | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 V ac | ||
Breaking Capacity 50kA | ||
Mount Type DIN Rail | ||
Range SMISSLINE TP | ||
Series S401M-C0.5 | ||
Terminal Type Screw | ||
Height 91mm | ||
Depth 75mm | ||
Width 18 mm | ||
Standards/Approvals IEC/EN 60898-1 IEC/EN 60947-2 | ||
- COO (Country of Origin):
- CH
The ABB has pluggable miniature circuit-breaker for the SMISSLINE TP System. The rated ultimate short-circuit capacity Icu 25 kA ( 240 Vac) and rated current is 0.5 A. The tripping characteristic of the circuit breaker is type-c.
Degree of protection IP20
Ambient air temperature for operation is -25 to 55 °C
