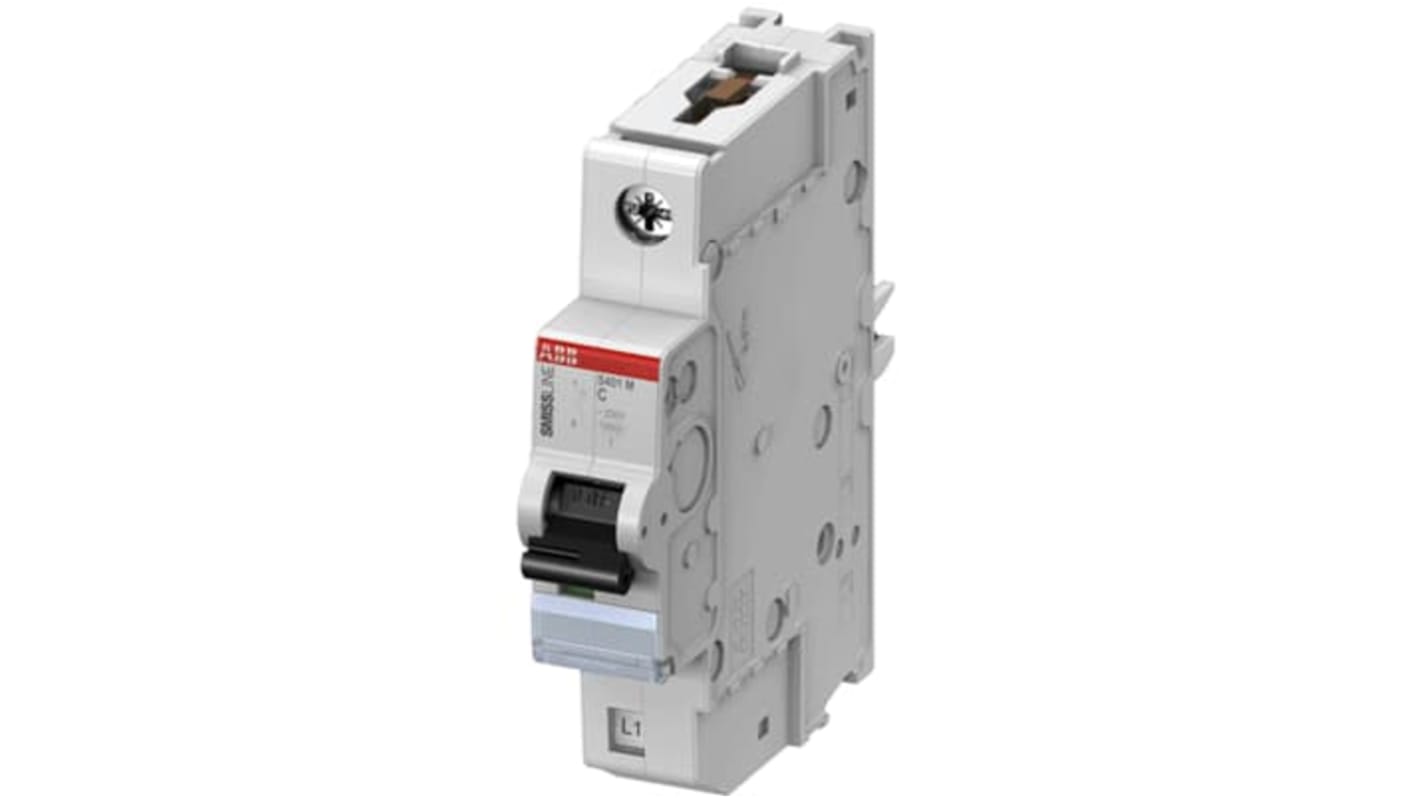

ABB SMISSLINE TP S401M-C13 Miniature Circuit Breaker, 1-Pole, 13 A, Type C, 240 V AC, 25 kA Breaking Capacity
- RS Stock No.:
- 246-2477
- Mfr. Part No.:
- 2CCS571001R0134 S401M-C13
- Brand:
- ABB
Subtotal (1 unit)*
£24.05
(exc. VAT)
£28.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.05 |
*price indicative
- RS Stock No.:
- 246-2477
- Mfr. Part No.:
- 2CCS571001R0134 S401M-C13
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 13 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240 V | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Range | SMISSLINE TP | |
| Series | S401M-C13 | |
| Terminal Type | Screw | |
| Width | 18 mm | |
| Depth | 75mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Height | 91mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 13 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 V | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Range SMISSLINE TP | ||
Series S401M-C13 | ||
Terminal Type Screw | ||
Width 18 mm | ||
Depth 75mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Height 91mm | ||
- COO (Country of Origin):
- CH
The ABB has pluggable miniature circuit-breaker for the SMISSLINE TP System. The rated ultimate short-circuit capacity Icu 20 kA, rated ultimate short-circuit capacity Icu 10 kA and rated current is 13 A. The tripping characteristic of the circuit breaker
Degree of protection IP20
Ambient air temperature for operation is -25 to 55 °C
