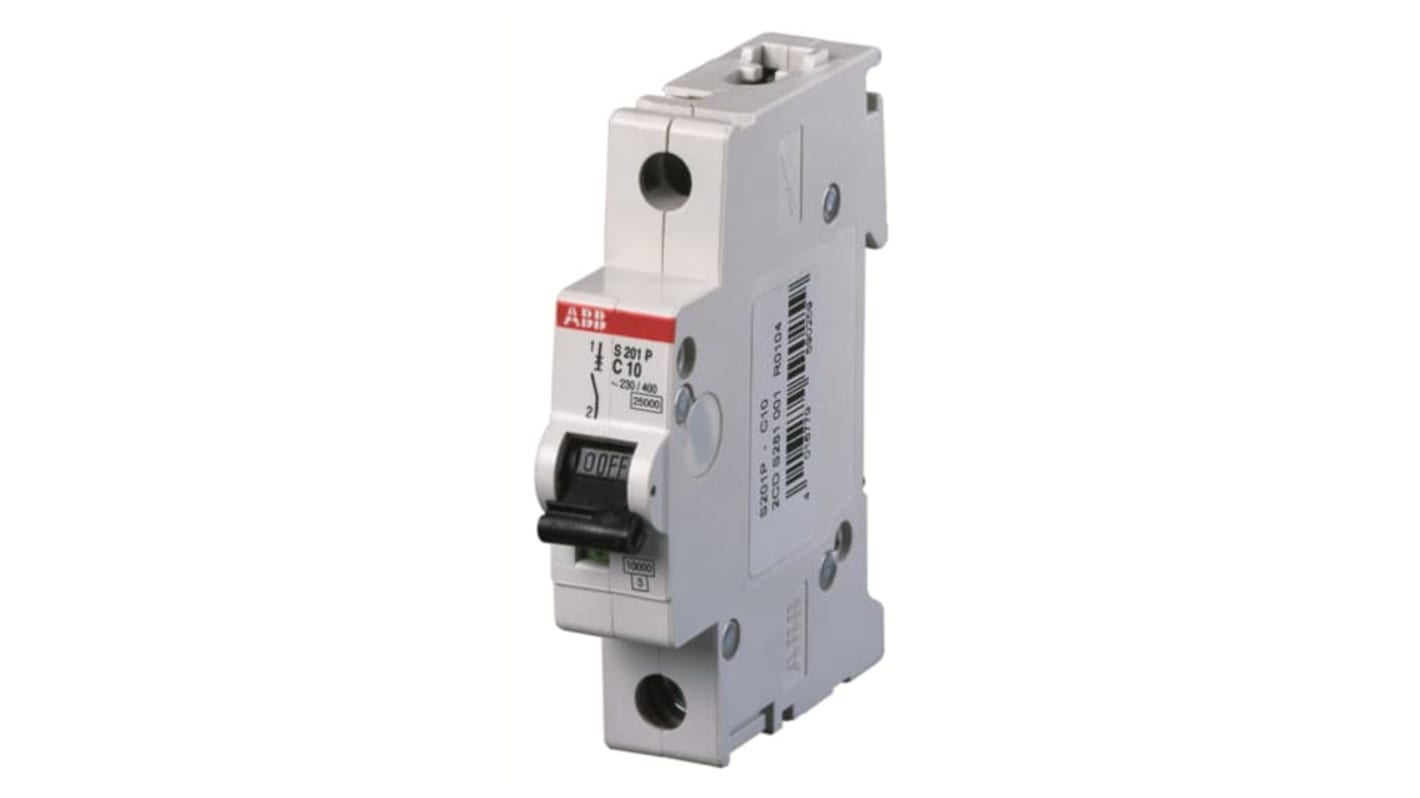

ABB System Pro M Compact S200P Miniature Circuit Breaker, 1-Pole, 2A, Type K, 400V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 231-9786
- Mfr. Part No.:
- 2CDS281001R0277 S20K 2A - 25 KA
- Brand:
- ABB
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 231-9786
- Mfr. Part No.:
- 2CDS281001R0277 S20K 2A - 25 KA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 2A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 400V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 25kA | |
| Range | System Pro M Compact | |
| Series | S200P | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Height | 88mm | |
| Depth | 69mm | |
| Width | 35mm | |
| Tripping Mechanism | Electromagnetic, Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 2A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 400V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 25kA | ||
Range System Pro M Compact | ||
Series S200P | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Height 88mm | ||
Depth 69mm | ||
Width 35mm | ||
Tripping Mechanism Electromagnetic, Thermomagnetic | ||
- COO (Country of Origin):
- DE
ABB S200P Series MCB, 2A Current Rating, Type K Tripping Characteristics - 2CDS281001R0277 S20K 2A - 25 KA
This miniature circuit breaker (MCB) is a Crucial component in the realm of electrical distribution equipment. With a width of 18mm and a length of 69mm, this 1-pole circuit breaker offers a current rating of 2A and supports Type K tripping characteristics. It belongs to the System Pro M Compact range, specifically designed for efficient and reliable circuit protection in various applications.
Features & Benefits
• Designed for effective 25 KA circuit protection for safety
• Supports DIN rail mounting for easy and secure installation
• Ensures reliable operation for electrical distribution systems
• Incorporates Type K characteristics for optimal performance
• Compact design fits seamlessly in various electrical setups
• Ideal for protecting against overloads and short circuits
• Supports DIN rail mounting for easy and secure installation
• Ensures reliable operation for electrical distribution systems
• Incorporates Type K characteristics for optimal performance
• Compact design fits seamlessly in various electrical setups
• Ideal for protecting against overloads and short circuits
Applications
• Used for protection in domestic electrical systems
• Ideal for commercial circuit protection solutions
• Incorporated into automation and control
• Utilised in panel boards for enhanced safety measures
• Applicable in various electrical installations requiring a 2A rating
• Ideal for commercial circuit protection solutions
• Incorporated into automation and control
• Utilised in panel boards for enhanced safety measures
• Applicable in various electrical installations requiring a 2A rating
What are the advantages of employing this circuit breaker in a domestic setting?
Utilising this circuit breaker effectively safeguards appliances and wiring by preventing overload and short circuits, ensuring a safer environment in residential installations.
How does the Type K tripping characteristic influence circuit performance?
The Type K characteristic allows this breaker to respond to overload conditions while tolerating brief inrush currents, providing a perfect balance between protection and operational stability.
Can this circuit breaker be integrated into existing electrical systems without modifications?
Yes, due to its standard dimensions and DIN rail mounting compatibility, it can be easily integrated into existing setups, enhancing their protective features without requiring significant changes.
What maintenance procedures are recommended for optimal performance?
Regular Visual inspections for signs of wear or damage are recommended. Additionally, routine testing using the appropriate electrical testing equipment should be conducted to verify operational efficiency.
In what scenarios would you advocate using a 1-pole circuit breaker over a multi-pole option?
A 1-pole circuit breaker is Ideal for single-phase circuits, providing targeted protection. It is particularly advisable when the circuit operates at a lower current level and requires individual control.
