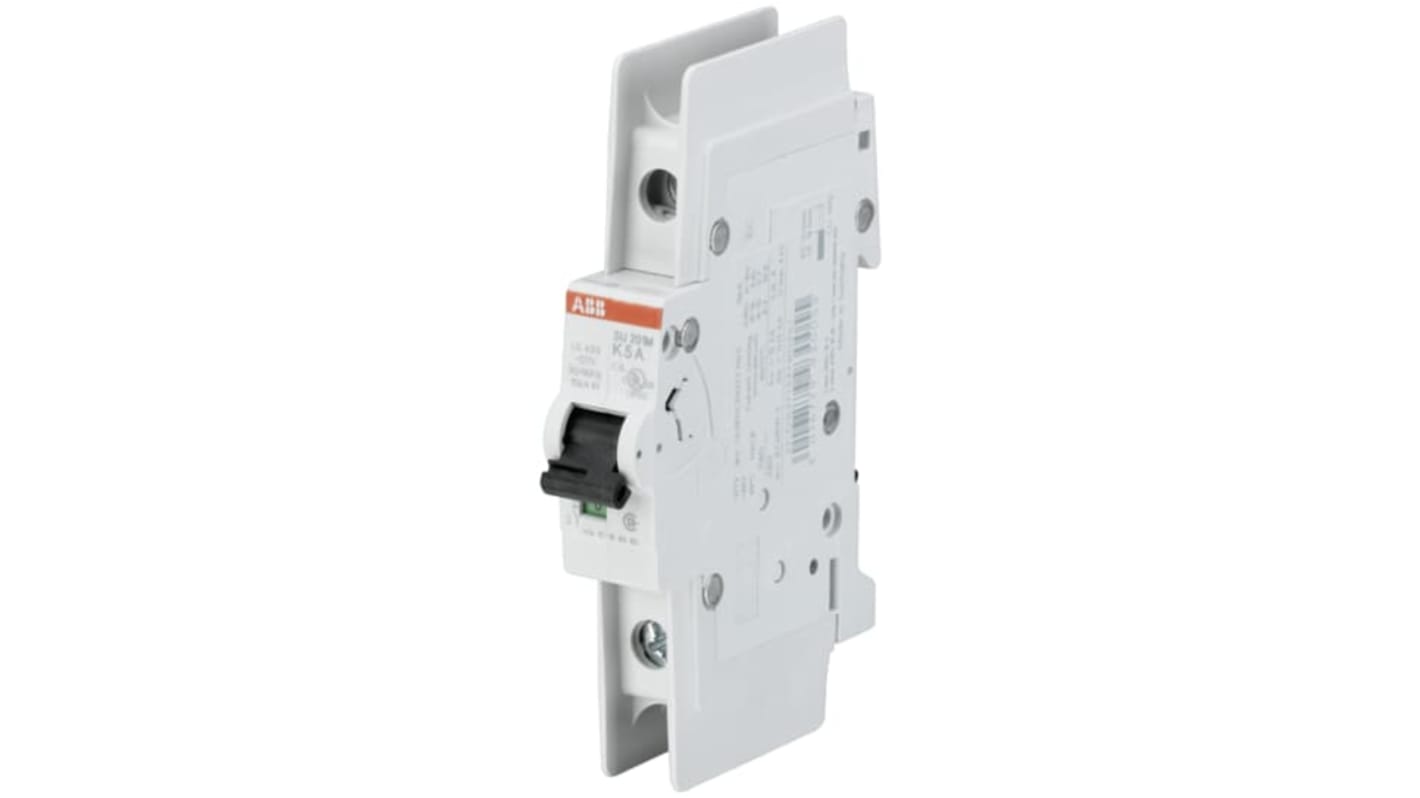

ABB System Pro M Compact SU200M MCB, 1P, 16A Curve K, 277V AC, 277V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 231-9720
- Mfr. Part No.:
- 2CDS271337R0467 SU201M-K16
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£42.80
(exc. VAT)
£51.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
---|---|
1 + | £42.80 |
*price indicative
- RS Stock No.:
- 231-9720
- Mfr. Part No.:
- 2CDS271337R0467 SU201M-K16
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 16A | |
Tripping Characteristics | Type K | |
Rated AC Voltage | 277V | |
Rated DC Voltage | 277V | |
Breaking Capacity at Maximum Voltage Rating | 15 kA | |
Range | System Pro M Compact | |
Series | SU200M | |
Circuit Breaker Type | MCB | |
Length | 111mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | SU201M-K16 | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 16A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 277V | ||
Rated DC Voltage 277V | ||
Breaking Capacity at Maximum Voltage Rating 15 kA | ||
Range System Pro M Compact | ||
Series SU200M | ||
Circuit Breaker Type MCB | ||
Length 111mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number SU201M-K16 | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- BG
ABB SU200M Series MCB, 1 Pole, 16A Current Rating - 2CDS271337R0467 SU201M-K16
This miniature circuit breaker (MCB) offers effective protection for branch circuits in various electrical applications. With the ability to function in both AC and DC systems, it complies with international safety standards, ensuring the integrity of electrical installations. Designed for easy mounting on DIN rails, this MCB is essential for defending circuits against overloads and short-circuit events.
Features & Benefits
• High performance with a 10kA interrupting capacity
• Certified for use in both AC and DC settings
• Clear contact position indication enhances reliability
• Current limiting feature improves circuit safety
• Compatible with System Pro M Compact accessories
• Operates within a wide temperature range of -25°C to +55°C
• Certified for use in both AC and DC settings
• Clear contact position indication enhances reliability
• Current limiting feature improves circuit safety
• Compatible with System Pro M Compact accessories
• Operates within a wide temperature range of -25°C to +55°C
Applications
• Used for branch circuit protection in residential systems
• Integrated into electrical panels for effective circuit management
• Suitable for industrial automation and control systems
• Complies with UL and CSA standards for installations
• Integrated into electrical panels for effective circuit management
• Suitable for industrial automation and control systems
• Complies with UL and CSA standards for installations
What is the maximum current rating for this product?
The maximum rating for this device is 16A, intended for single-pole applications.
Can it be installed in various mounting positions?
Yes, it can be mounted in any position on a DIN rail.
Is it suitable for both residential and industrial uses?
Yes, it is designed for versatility, making it suitable for diverse applications.
How can I confirm the device's operational status?
The indicator provides clear visibility of the contact position, indicating whether it is ON or OFF.
What type of circuits can this product safeguard?
This product is capable of protecting both AC and DC circuits, allowing for flexibility in different electrical configurations.
