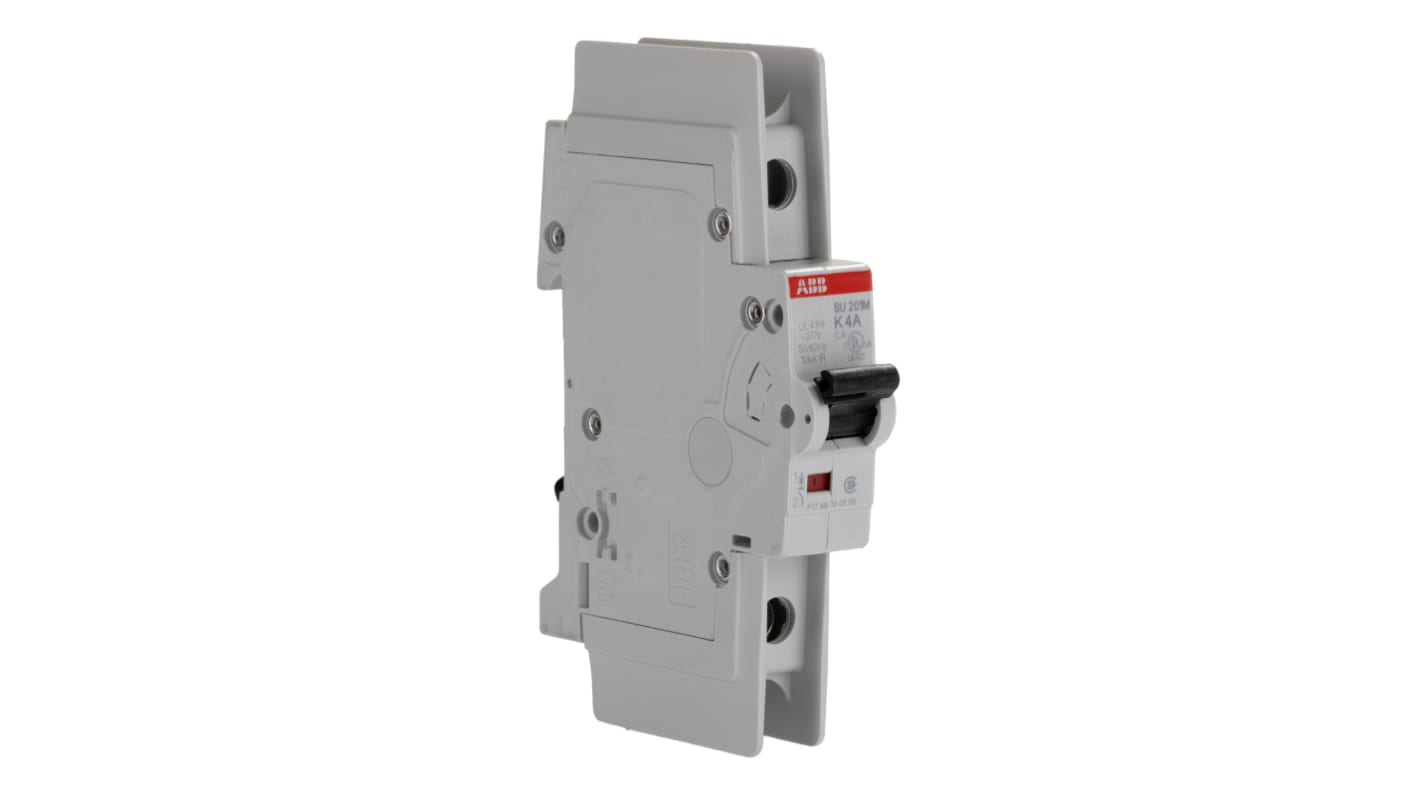

ABB System Pro M Compact SU200M MCB, 1P, 4A Curve K, 277V AC, 277V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 231-9715
- Mfr. Part No.:
- 2CDS271337R0337 SU201M-K4
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£51.42
(exc. VAT)
£61.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
---|---|
1 + | £51.42 |
*price indicative
- RS Stock No.:
- 231-9715
- Mfr. Part No.:
- 2CDS271337R0337 SU201M-K4
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 4A | |
Tripping Characteristics | Type K | |
Rated AC Voltage | 277V | |
Rated DC Voltage | 277V | |
Breaking Capacity at Maximum Voltage Rating | 15 kA | |
Range | System Pro M Compact | |
Series | SU200M | |
Circuit Breaker Type | MCB | |
Length | 111mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | SU201M-K4 | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 4A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 277V | ||
Rated DC Voltage 277V | ||
Breaking Capacity at Maximum Voltage Rating 15 kA | ||
Range System Pro M Compact | ||
Series SU200M | ||
Circuit Breaker Type MCB | ||
Length 111mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number SU201M-K4 | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- BG
ABB SU200M Series MCB, 1 Pole, 4A Current Rating - 2CDS271337R0337 SU201M-K4
This miniature circuit breaker provides effective protection for electrical circuits, designed for both AC and DC systems. It is suitable for automation and electrical distribution, ensuring safe operation across various voltage levels, essential for contemporary electrical installations.
Features & Benefits
• Current rating of 4A for high performance
• Type K characteristic ensures reliable tripping behaviour
• Compact design ideal for DIN rail mounting
• Interrupting capacity of 10kA
• Versatile for AC and DC applications
• Clear red/green indicators display contact position
• Type K characteristic ensures reliable tripping behaviour
• Compact design ideal for DIN rail mounting
• Interrupting capacity of 10kA
• Versatile for AC and DC applications
• Clear red/green indicators display contact position
Applications
• Ideal for branch circuit protection systems
• Commonly used in industrial automation setups
• Suitable for residential electrical installations
• Compatible with System Pro M Compact accessories
• Effective globally due to wide compliance
• Commonly used in industrial automation setups
• Suitable for residential electrical installations
• Compatible with System Pro M Compact accessories
• Effective globally due to wide compliance
What current rating is suitable for my installation?
The device provides a dependable 4A rating, appropriate for various applications.
Can it handle high voltage conditions?
Yes, the circuit breaker is certified for use up to 480Y/277V AC and 96V DC.
How does the compact design benefit installation?
Its DIN rail mount simplifies installation and saves space.
Is this device compatible with other accessory products?
Yes, it is designed to integrate seamlessly with System Pro M Compact accessories.
What are the tripping characteristics?
It features a Type K characteristic, ensuring precise responses to varying load conditions.
