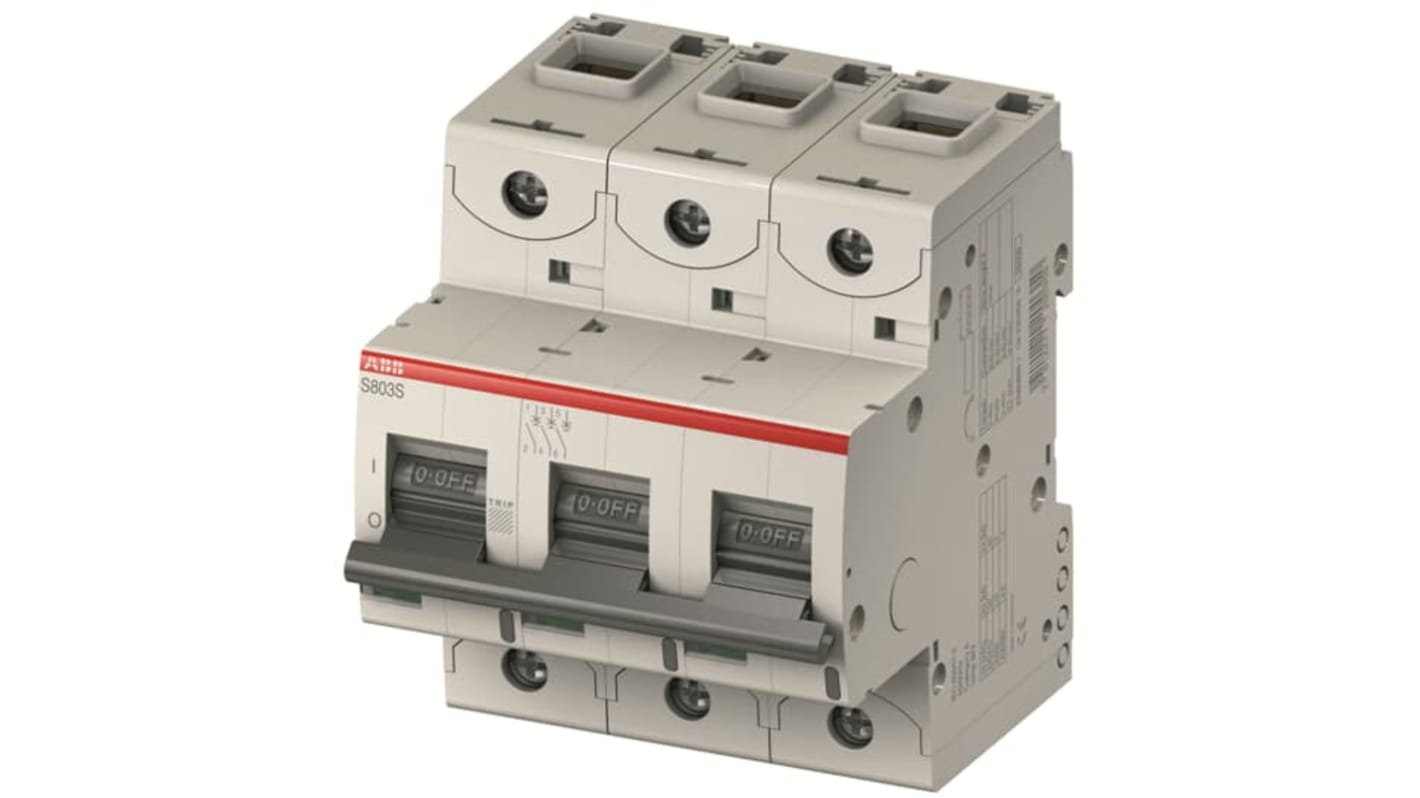

ABB High Performance S800S MCB, 3P, 16A Curve C, 400 V, 690 V AC, 50 kA Breaking Capacity

RS Stock No.:: 231-9572
Mfr. Part No.:: 2CCS863001R0164 S803S C 16A - 50 KA
Brand:: ABB

ABB High Performance S800S MCB, 3P, 16A Curve C, 400 V, 690 V AC, 50 kA Breaking Capacity

View all MCBs

Subtotal (1 box of 1 unit)*

£201.20

(exc. VAT)

£241.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box
1 +	£201.20

*price indicative

RS Stock No.:: 231-9572
Mfr. Part No.:: 2CCS863001R0164 S803S C 16A - 50 KA
Brand:: ABB

ABB S800S Series MCB, 3 Poles, 16A Current Rating - 2CCS863001R0164 S803S C 16A - 50 KA

This compact circuit breaker offers essential protection in electrical systems. The 3 Pole configuration makes it suitable for various applications, ensuring consistent performance and reliability. With a current rating of 16A and Type C tripping characteristics, this component serves as an efficient and high-performance choice.

Features & Benefits

• Provides protection against overloads and short circuits
• Type C tripping characteristics for moderate inrush currents
• High-performance design ensures durability and longevity
• Easily mounted on DIN rail for simple installation
• Capable of handling fault currents up to 50KA
• Optimised for automation and electronic systems

Applications

• Protective device in three-phase distribution boards
• Suitable for automation control panels
• Used in commercial and industrial electrical installations
• Ideal for machinery requiring dependable circuit protection
• Employed in various electronic systems and devices

What installation requirements should be considered?

Ensure the circuit breaker is securely mounted on a DIN rail and connected in accordance with local electrical regulations to maintain safety.

How does the tripping mechanism work?

The Type C mechanism enables the breaker to trip within a specified range, managing moderate surge currents effectively without nuisance tripping.

Can this circuit breaker be used in residential applications?

Yes, it is applicable in residential systems that require 3 Pole protection for larger electrical loads or three-phase circuits.

What maintenance is necessary for optimal performance?

Routine checks should confirm that terminals are secure and free of corrosion, ensuring the device is functional and undamaged.

Is this circuit breaker compatible with other electrical devices?

Yes, it is designed to integrate seamlessly with standard electrical systems and devices commonly used in automation and industrial environments.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	3
	Current Rating	16A
	Tripping Characteristics	Type C
	Rated AC Voltage	400 V, 690 V
	Breaking Capacity at Maximum Voltage Rating	50 kA
	Range	High Performance
	Series	S800S
	Circuit Breaker Type	MCB
	Length	95mm
	Width	81mm
	Mounting Style	DIN Rail Mount
	Depth	82.5mm
	Model Number	S803S-C16
	Application	Commercial, Industrial
	Reset Actuator Type	Toggle Switch
	Terminal Contact Type	Screw

	Select all
	Brand ABB
	Number of Poles 3
	Current Rating 16A
	Tripping Characteristics Type C
	Rated AC Voltage 400 V, 690 V
	Breaking Capacity at Maximum Voltage Rating 50 kA
	Range High Performance
	Series S800S
	Circuit Breaker Type MCB
	Length 95mm
	Width 81mm
	Mounting Style DIN Rail Mount
	Depth 82.5mm
	Model Number S803S-C16
	Application Commercial, Industrial
	Reset Actuator Type Toggle Switch
	Terminal Contact Type Screw
