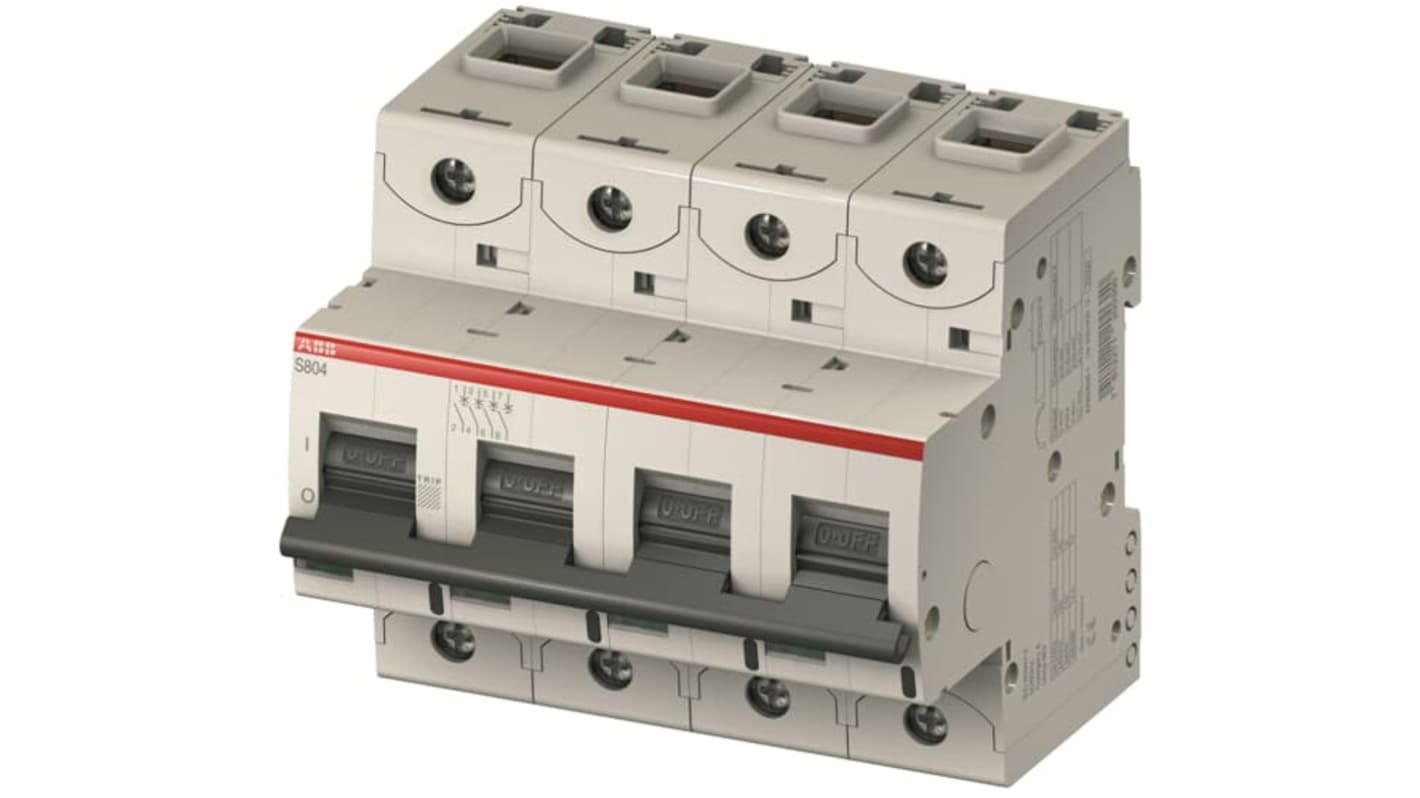

ABB High Performance S800N Miniature Circuit Breaker, 4-Pole, 16 A, Type B, 690 V AC, 500 V DC, 36 kA Breaking Capacity
- RS Stock No.:
- 225-5975
- Mfr. Part No.:
- 2CCS894001R0165 S804N B 16A - 36 KA
- Brand:
- ABB
Subtotal (1 unit)*
£194.80
(exc. VAT)
£233.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £194.80 |
*price indicative
- RS Stock No.:
- 225-5975
- Mfr. Part No.:
- 2CCS894001R0165 S804N B 16A - 36 KA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 690 V | |
| Rated DC Voltage | 500 V | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 36kA | |
| Range | High Performance | |
| Series | S800N | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Depth | 82mm | |
| Height | 95mm | |
| Width | 106 mm | |
| Tripping Mechanism | Electromagnetic, Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 16 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 690 V | ||
Rated DC Voltage 500 V | ||
Mount Type DIN Rail | ||
Breaking Capacity 36kA | ||
Range High Performance | ||
Series S800N | ||
Terminal Type Cage Terminal | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Depth 82mm | ||
Height 95mm | ||
Width 106 mm | ||
Tripping Mechanism Electromagnetic, Thermomagnetic | ||
The ABB S800 series is a 4-pole high performance circuit breaker for photovoltaics, with cage terminal. It is a current limiting device with a maximum breaking capacity of 36 kA. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.
Degree of protection IP20
Energy limiting class 3
Ambient air temperature from -25 to 60 °C
