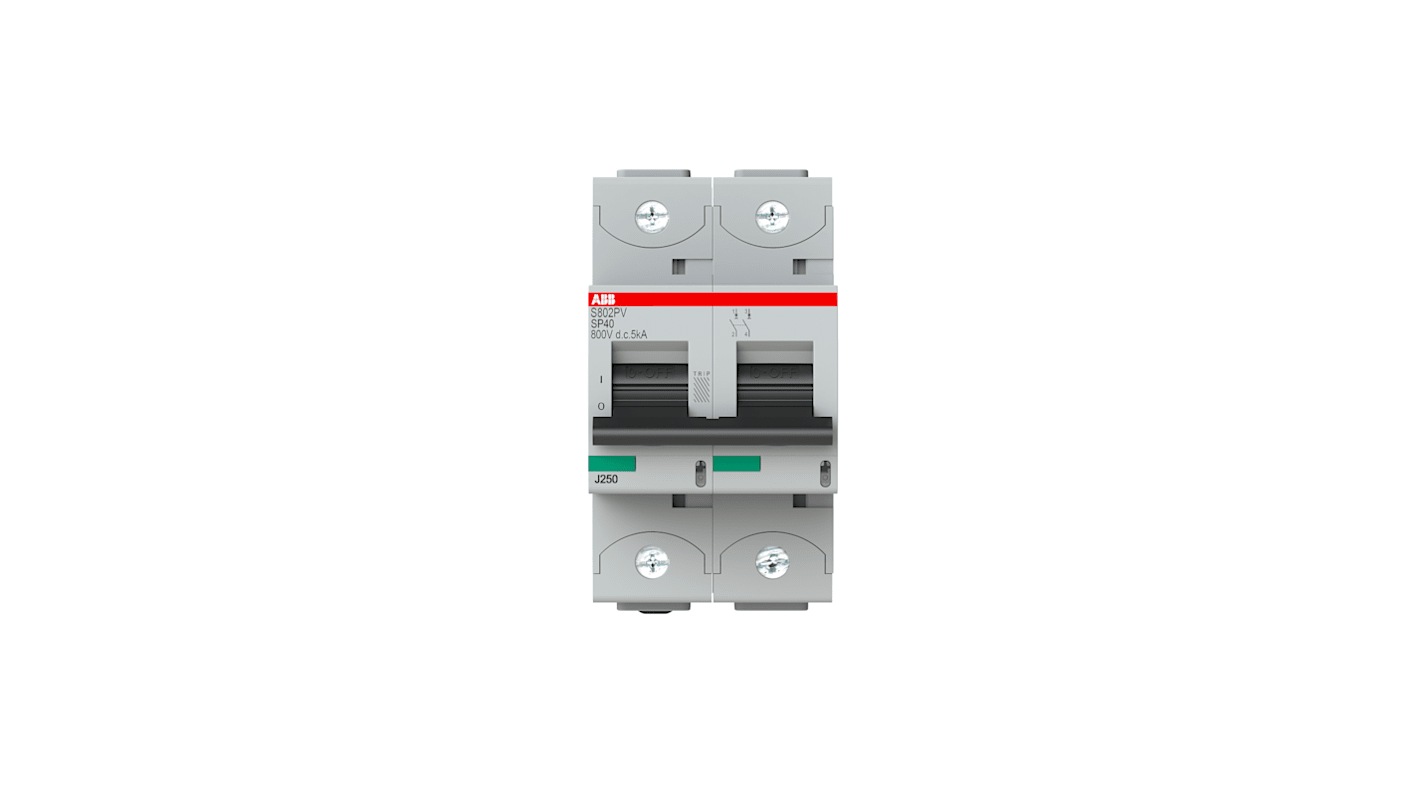

ABB S800PV S800PV Miniature Circuit Breaker, 2-Pole, 40 A, Type B, 800 V dc DC, 5 kA Breaking Capacity

RS Stock No.:: 225-5923
Mfr. Part No.:: 2CCF019603R0001 S802PV-SP40 - 5 kA
Brand:: ABB

ABB S800PV S800PV Miniature Circuit Breaker, 2-Pole, 40 A, Type B, 800 V dc DC, 5 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£206.07

(exc. VAT)

£247.28

(inc. VAT)

Add 1 unit to get free delivery

Orders below £50.00 (exc. VAT) cost £6.95.

Temporarily out of stock

Shipping from 23 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£206.07

*price indicative

RS Stock No.:: 225-5923
Mfr. Part No.:: 2CCF019603R0001 S802PV-SP40 - 5 kA
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Miniature Circuit Breaker
	Number of Poles	2
	Current Rating	40 A
	Tripping Characteristics	Type B
	Rated DC Voltage	800 V dc
	Mount Type	DIN Rail
	Breaking Capacity	5kA
	Range	S800PV
	Series	S800PV
	Terminal Type	Cage Terminal
	IP Rating	IP20
	Standards/Approvals	IEC/EN 60947-2
	Height	82.5mm
	Width	54 mm
	Depth	82.5mm
	Tripping Mechanism	Thermal
	Reset Actuator Type	Toggle Switch

	Select all
	Brand ABB
	Product Type Miniature Circuit Breaker
	Number of Poles 2
	Current Rating 40 A
	Tripping Characteristics Type B
	Rated DC Voltage 800 V dc
	Mount Type DIN Rail
	Breaking Capacity 5kA
	Range S800PV
	Series S800PV
	Terminal Type Cage Terminal
	IP Rating IP20
	Standards/Approvals IEC/EN 60947-2
	Height 82.5mm
	Width 54 mm
	Depth 82.5mm
	Tripping Mechanism Thermal
	Reset Actuator Type Toggle Switch

ABB S800PV Series MCB, 40A Current Rating, 2 Poles - 2CCF019603R0001 S802PV-SP40 - 5 kA

This miniature circuit breaker from ABB features a rated operational voltage of 800V DC and a rated current of 40A. It has a maximum breaking capacity of 5kA, making it ideal for photovoltaic applications. The device incorporates dual tripping mechanisms, enhancing its overload and short-circuit protection capabilities.

Features & Benefits

• Complies with IEC/EN 60947-2 for safety assurance

• B-characteristic tripping for enhanced overload protection

• Cage terminal provides secure and robust connections

• DIN rail mount for easy installation and space efficiency

Applications

• Used for photovoltaic installations

• Suitable for applications requiring overload protection

• Ideal for systems with high operational voltage needs

What is the degree of protection for this circuit breaker?

It features an IP20 degree of protection.

Can it protect against both overload and short circuits?

No, it provide protection against short circuits only.
