Schneider Electric TeSys TeSyS GV Miniature Circuit Breaker, 1-Pole
- RS Stock No.:
- 221-0908
- Mfr. Part No.:
- GVAU116
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£32.89
(exc. VAT)
£39.47
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £32.89 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 221-0908
- Mfr. Part No.:
- GVAU116
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Mount Type | DIN Rail | |
| Range | TeSys | |
| Series | TeSyS GV | |
| Terminal Type | Screw Clamp | |
| IP Rating | IP20 | |
| Width | 18mm | |
| Standards/Approvals | UL 60947-4-1, IEC 60947-1, CSA C22.2 No 60947-4-1 | |
| Depth | 66mm | |
| Height | 89mm | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Mount Type DIN Rail | ||
Range TeSys | ||
Series TeSyS GV | ||
Terminal Type Screw Clamp | ||
IP Rating IP20 | ||
Width 18mm | ||
Standards/Approvals UL 60947-4-1, IEC 60947-1, CSA C22.2 No 60947-4-1 | ||
Depth 66mm | ||
Height 89mm | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- CZ

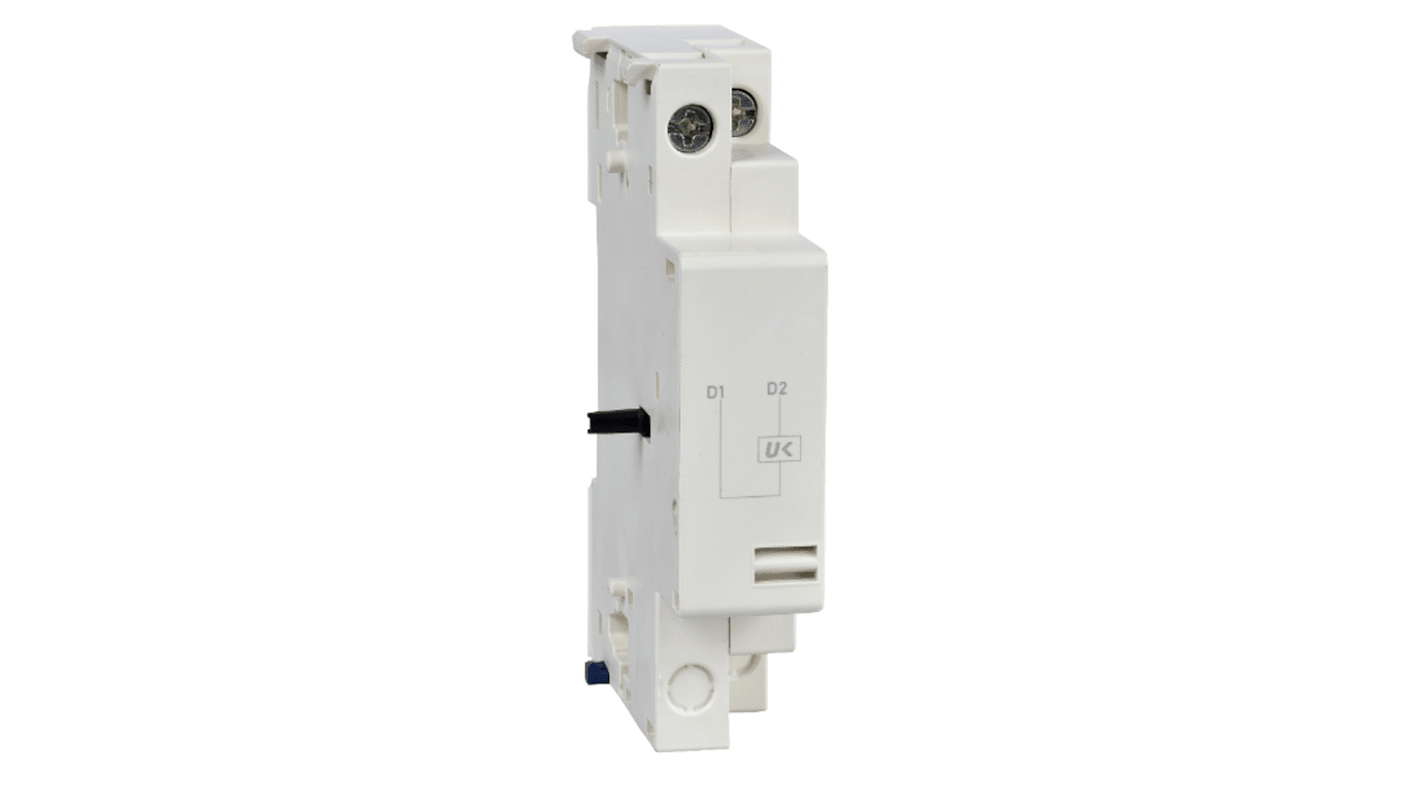

The Schneider Electric TeSys GV electrical trip unit, MN undervoltage release, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be mounted on the right-hand side of the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Mercury free
