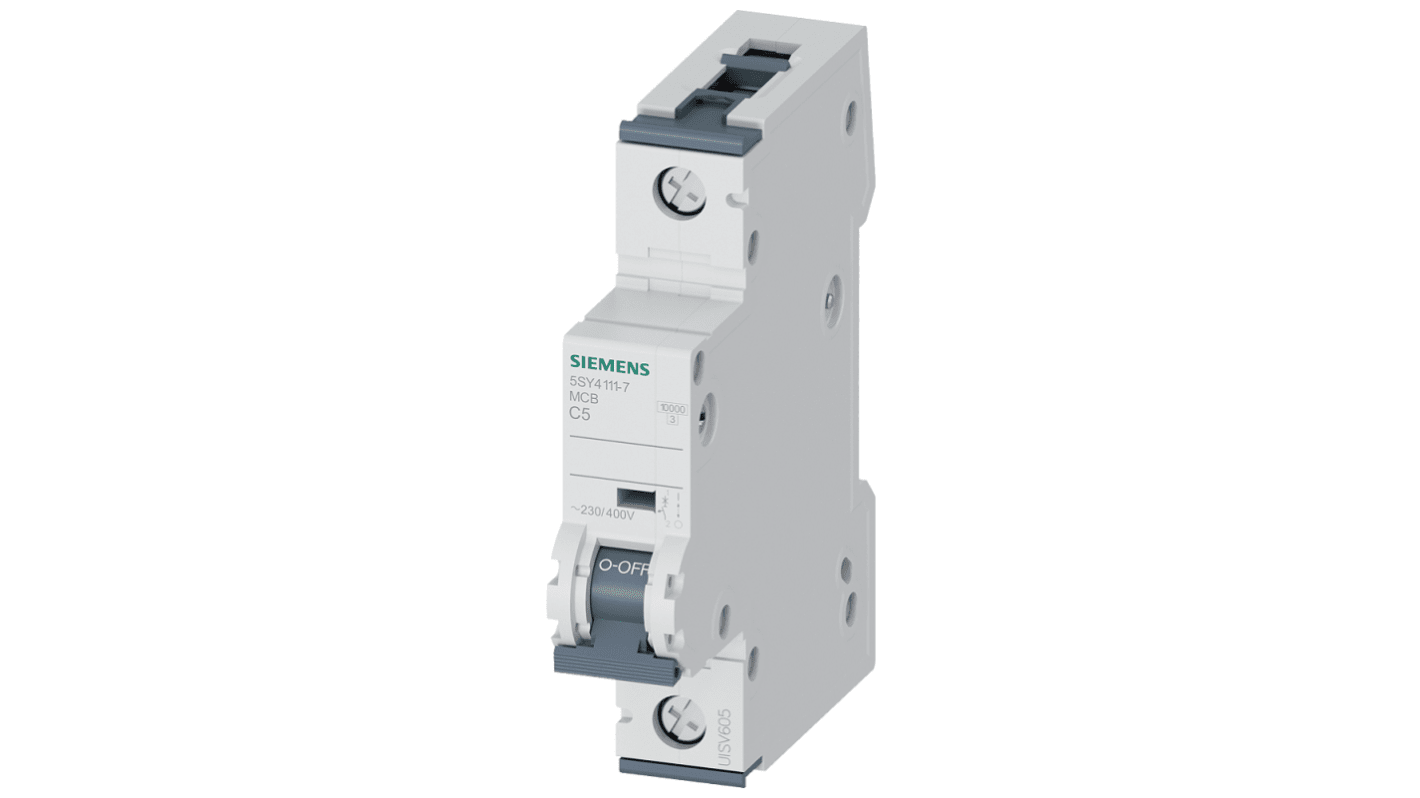

Siemens SENTRON 5SY4 MCB, 1P, 5A Curve C, 400V AC, 72V DC, 5 kA Breaking Capacity
- RS Stock No.:
- 213-1070
- Mfr. Part No.:
- 5SY4111-7
- Brand:
- Siemens
Subtotal (1 unit)*
£21.12
(exc. VAT)
£25.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 105 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £21.12 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 213-1070
- Mfr. Part No.:
- 5SY4111-7
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Number of Poles | 1 | |
Current Rating | 5A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 400V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 5 kA | |
Range | SENTRON | |
Series | 5SY4 | |
Circuit Breaker Type | MCB | |
Length | 90mm | |
Width | 18mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Model Number | 5SY4111-7 | |
Better World Product | Yes | |
Better World Claim | Extended product life | |
Terminal Contact Type | Screw | |
Select all | ||
---|---|---|
Brand Siemens | ||
Number of Poles 1 | ||
Current Rating 5A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 5 kA | ||
Range SENTRON | ||
Series 5SY4 | ||
Circuit Breaker Type MCB | ||
Length 90mm | ||
Width 18mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Model Number 5SY4111-7 | ||
Better World Product Yes | ||
Better World Claim Extended product life | ||
Terminal Contact Type Screw | ||
- Datasheet - 5SY4111-7
- Environmental Product Declaration - Overview
- Siemens EcoTech label
- Environmental Product Declaration
- Instruction Sheet - 5SY4111-7
- Selection Guide - 5SY Series
- Catalogue - Low-Voltage Power Distribution and Electrical Installation Technology
- Brochure - The Complete Portfolio for Low-voltage Power Distribution
- Manual - Protection Device
- COO (Country of Origin):
- DE
Siemens 5SY4 Series MCB, 5A Current Rating, Type C Tripping Characteristics - 5SY4111-7
This miniature circuit breaker is a 1 Pole Circuit Breaker designed to offer electrical protection for residential and commercial applications. With a current rating of 5A, it is ideal for use in various electrical systems. Standing at a height of 90mm, a width of 18mm, and a depth of 76mm, this compact DIN Rail MCB fits seamlessly into standard enclosures, ensuring effective space utilisation while safeguarding circuits.
Features & Benefits
• Type C tripping characteristic ensures suitable protection in specific applications
• 5kA Breaking Capacity provides reliable interruption during fault conditions
• IP20 protection class allows safe operation in dry environments
• Designed for easy installation with screw terminal connections
• Mechanical service life of 10,000 cycles enhances long-term reliability
• Compliant with IEC / EN standards, ensuring high-quality performance
• 5kA Breaking Capacity provides reliable interruption during fault conditions
• IP20 protection class allows safe operation in dry environments
• Designed for easy installation with screw terminal connections
• Mechanical service life of 10,000 cycles enhances long-term reliability
• Compliant with IEC / EN standards, ensuring high-quality performance
Applications
• Used with residential electrical systems for circuit protection
• Ideal for commercial installations requiring dependable fault interruption
• Suitable for use in environments with overvoltage category III
• Effective in automation systems where cable management is crucial
• Ideal for commercial installations requiring dependable fault interruption
• Suitable for use in environments with overvoltage category III
• Effective in automation systems where cable management is crucial
What are the benefits of having a Type C tripping characteristic?
The Type C tripping characteristic is beneficial for circuits with higher inrush currents, allowing for uninterrupted operation of inductive loads like motors while still offering protection against short circuits.
What is the significance of the 5kA breaking capacity?
A breaking capacity of 5kA ensures that the device can safely interrupt fault currents up to this rating, preventing potential damage to downstream equipment and enhancing overall circuit safety.
What type of conductors can be connected to the terminals?
The terminals can accommodate solid and stranded conductors with cross-sections between 0.75 mm² and 35 mm², providing flexibility for different wiring requirements.
