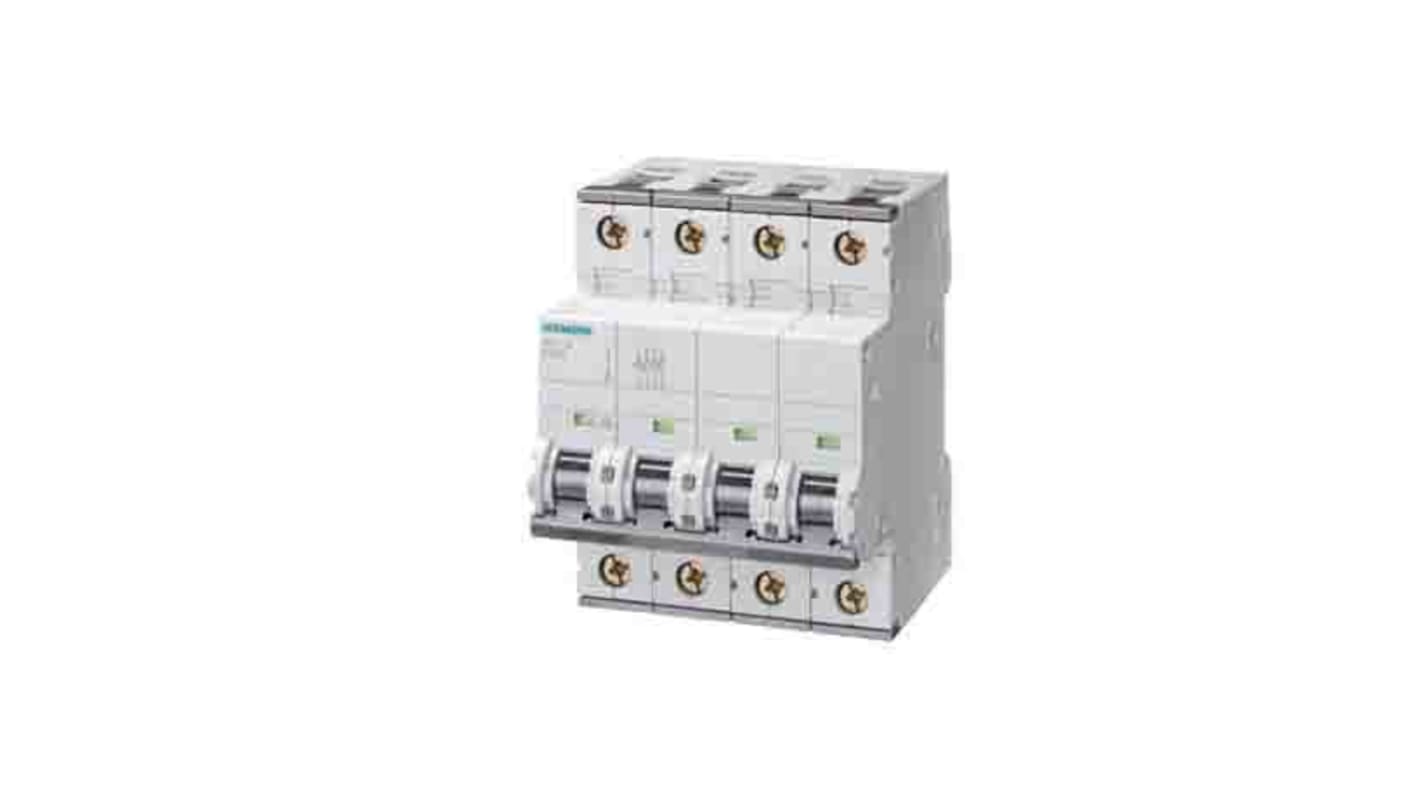

Siemens SENTRON 5SY4 MCB, 3P+N, 1A Curve C, 400V AC, 72V DC, 5 kA Breaking Capacity
- RS Stock No.:
- 213-1073
- Mfr. Part No.:
- 5SY4601-7
- Brand:
- Siemens
Available to back order for despatch 18/06/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£143.96
(exc. VAT)
£172.75
(inc. VAT)
| Units | Per unit |
| 1 + | £143.96 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 213-1073
- Mfr. Part No.:
- 5SY4601-7
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Siemens 5SY4601-7 Miniature Circuit Breakers operate at 72 V DC and 1 A at AC. It has switching capacity of 10 kA according to EN 60898. These are ideal for application in large non-residential buildings and in industries.
Properties for main switches in accordance with EN 60204-1.
Halogen-free.
Number of poles- 4
Halogen-free.
Number of poles- 4
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P+N |
| Current Rating | 1A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Breaking Capacity at Maximum Voltage Rating | 5 kA |
| Range | SENTRON |
| Series | 5SY4 |
| Circuit Breaker Type | MCB |
| Width | 72mm |
| Length | 90mm |
| Mounting Style | DIN Rail Mount |
| Depth | 76mm |
| Model Number | 5SY4601-7 |
| Better World Product | Yes |
| Better World Claim | Designed for disassembly, Extended product life |
| Terminal Contact Type | Screw |
