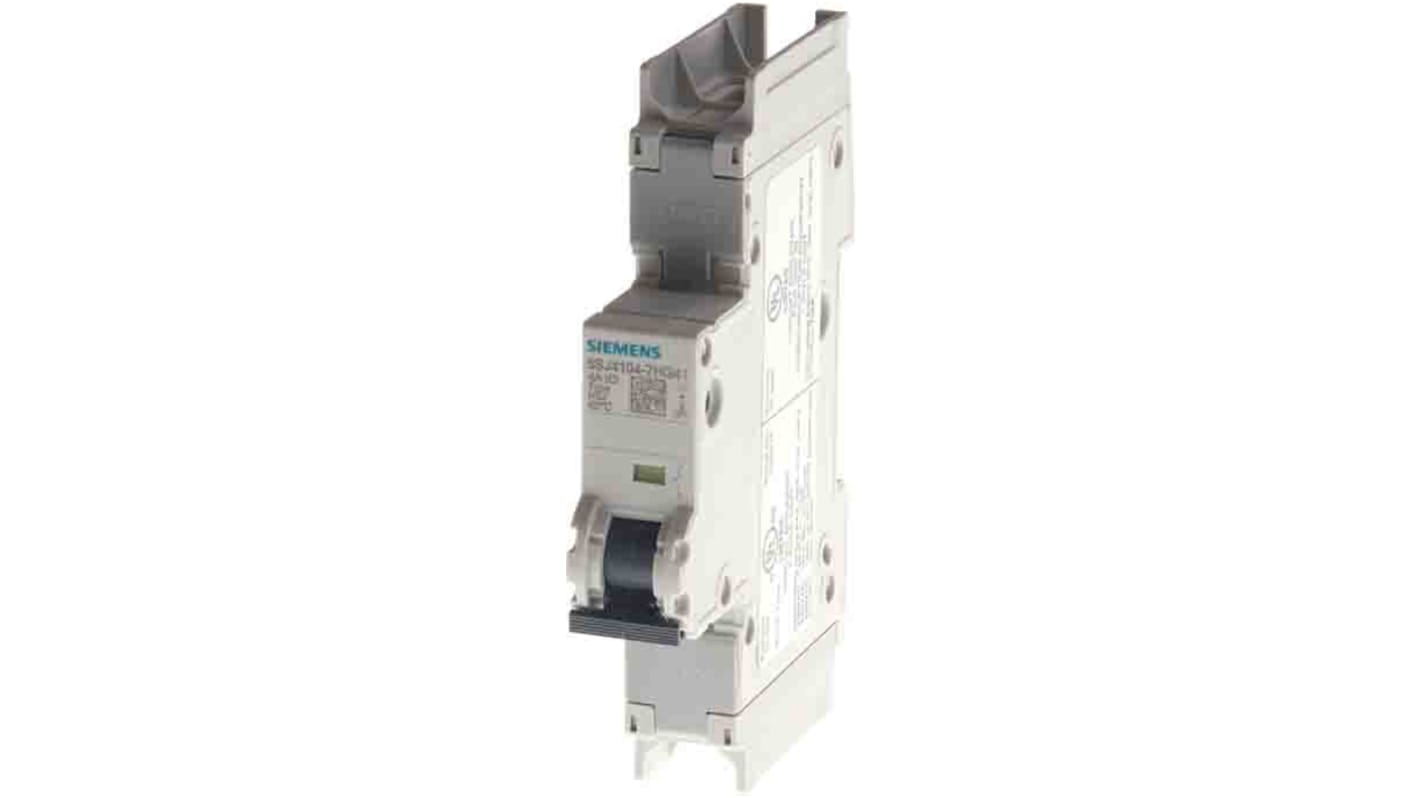

Siemens SENTRON 5SJ4 MCB, 1P, 10A Curve C, 400V AC, 60V DC, 14 kA Breaking Capacity
- RS Stock No.:
- 212-8929
- Mfr. Part No.:
- 5SJ4110-7HG41
- Brand:
- Siemens
Subtotal (1 unit)*
£48.37
(exc. VAT)
£58.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £48.37 |
*price indicative
- RS Stock No.:
- 212-8929
- Mfr. Part No.:
- 5SJ4110-7HG41
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Number of Poles | 1 | |
Current Rating | 10A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 400V | |
Rated DC Voltage | 60V | |
Breaking Capacity at Maximum Voltage Rating | 14 kA | |
Range | SENTRON | |
Series | 5SJ4 | |
Circuit Breaker Type | MCB | |
Length | 110mm | |
Width | 18mm | |
Mounting Style | DIN Rail Mount | |
Depth | 70mm | |
Model Number | 5SJ4110-7HG41 | |
Select all | ||
---|---|---|
Brand Siemens | ||
Number of Poles 1 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 60V | ||
Breaking Capacity at Maximum Voltage Rating 14 kA | ||
Range SENTRON | ||
Series 5SJ4 | ||
Circuit Breaker Type MCB | ||
Length 110mm | ||
Width 18mm | ||
Mounting Style DIN Rail Mount | ||
Depth 70mm | ||
Model Number 5SJ4110-7HG41 | ||
- COO (Country of Origin):
- DE
The Siemens 5SJ4 series single-pole miniature circuit breaker has a current rating of 10 A and 14 kA breaking capacity. The miniature circuit breaker is the fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Protection class IP= IP20 with connected conductors, IP 40 in the handle range
halogen-free, sealable, silicon-free
Vibration resistance= 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
Supply voltage= 400 Vac
halogen-free, sealable, silicon-free
Vibration resistance= 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
Supply voltage= 400 Vac
