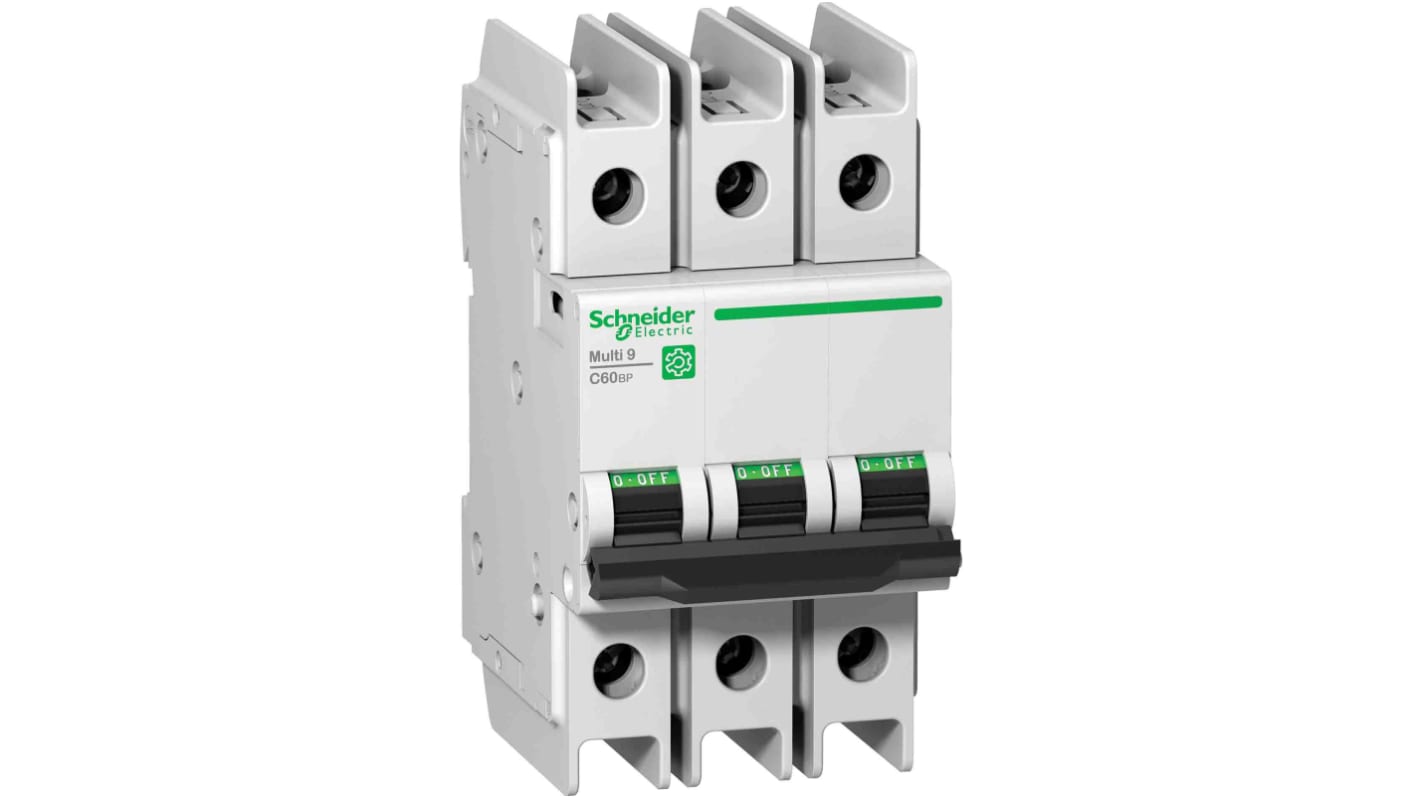

Schneider Electric Multi9 C60BP Miniature Circuit Breaker, 3-Pole, 6 A, Type C, 440 V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 211-2427
- Mfr. Part No.:
- M9F42306
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£236.80
(exc. VAT)
£284.16
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- 3 unit(s) shipping from 20 March 2026
- Plus 9 unit(s) shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £236.80 |
*price indicative
- RS Stock No.:
- 211-2427
- Mfr. Part No.:
- M9F42306
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 6 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440 V ac | |
| Mount Type | Clip-on | |
| Breaking Capacity | 6kA | |
| Range | Multi9 | |
| Series | C60BP | |
| Terminal Type | Tunnel | |
| IP Rating | IP20, IP40 | |
| Height | 103mm | |
| Depth | 72mm | |
| Standards/Approvals | UL 489, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2 | |
| Width | 54 mm | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 6 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440 V ac | ||
Mount Type Clip-on | ||
Breaking Capacity 6kA | ||
Range Multi9 | ||
Series C60BP | ||
Terminal Type Tunnel | ||
IP Rating IP20, IP40 | ||
Height 103mm | ||
Depth 72mm | ||
Standards/Approvals UL 489, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2 | ||
Width 54 mm | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric C60BP Series are multi-standard miniature circuit breakers and branch circuit protection as defined by UL 489. It has function such as tripping and electrical fault indication by the addition of auxiliaries.
Circuit protection against short-circuit currents
Circuit protection against overload currents
