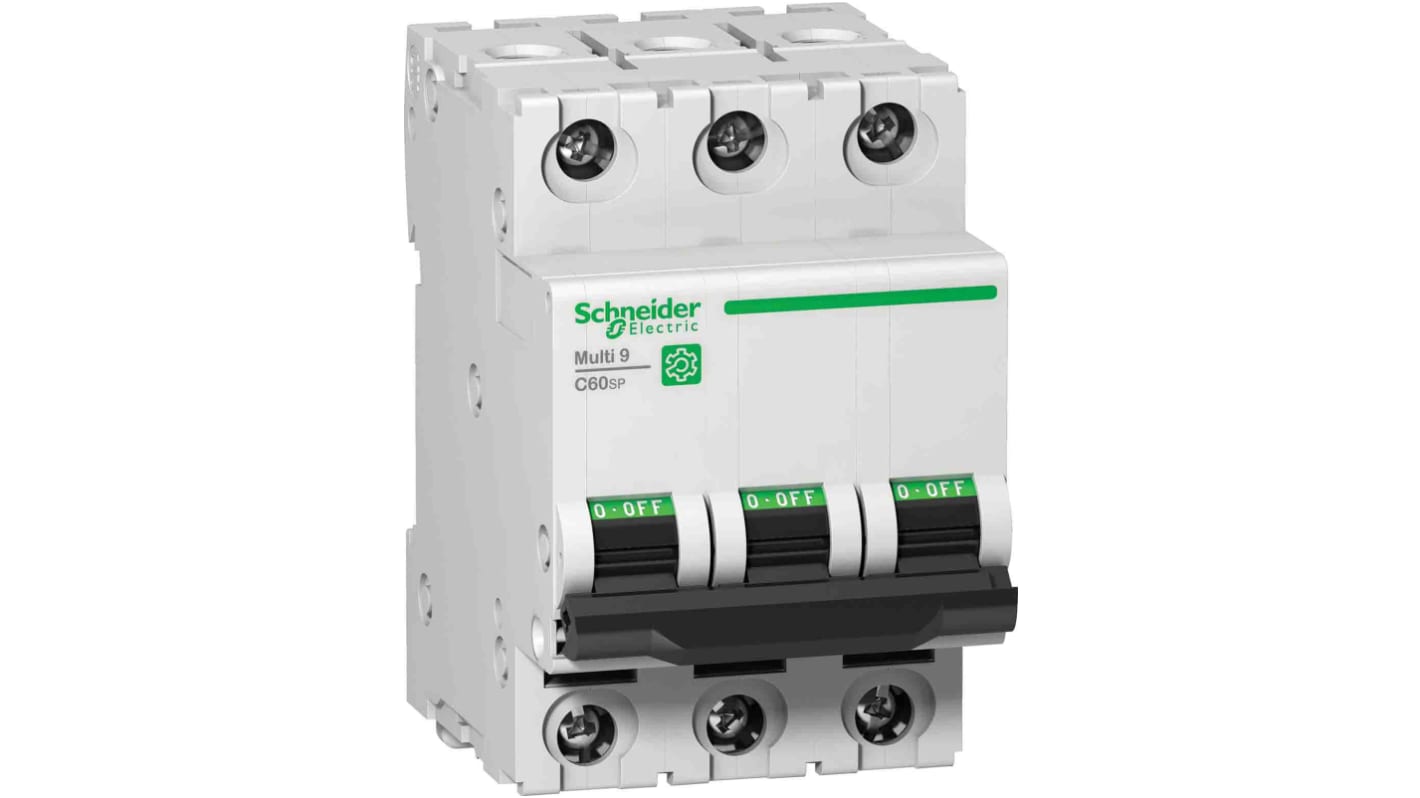

Schneider Electric Multi9 Multi 9 Miniature Circuit Breaker, 3-Pole, 6 A, Type B, 440 V ac AC, 20 kA Breaking Capacity
- RS Stock No.:
- 211-2343
- Mfr. Part No.:
- M9F21306
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£123.75
(exc. VAT)
£148.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £123.75 |
*price indicative
- RS Stock No.:
- 211-2343
- Mfr. Part No.:
- M9F21306
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 6 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 440 V ac | |
| Breaking Capacity | 20kA | |
| Mount Type | DIN Rail | |
| Range | Multi9 | |
| Series | Multi 9 | |
| Terminal Type | Tunnel | |
| IP Rating | IP20, IP40 | |
| Width | 72 mm | |
| Depth | 72mm | |
| Height | 81mm | |
| Standards/Approvals | IEC, UL, CSA, EN, GB | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 6 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 440 V ac | ||
Breaking Capacity 20kA | ||
Mount Type DIN Rail | ||
Range Multi9 | ||
Series Multi 9 | ||
Terminal Type Tunnel | ||
IP Rating IP20, IP40 | ||
Width 72 mm | ||
Depth 72mm | ||
Height 81mm | ||
Standards/Approvals IEC, UL, CSA, EN, GB | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric's C60SP Series are multi-standard miniature circuit breakers and supplementary protection as defined by UL 1077. It has function such as tripping and electrical fault indication by the addition of auxiliaries.
Circuit protection against short-circuit currents
Circuit protection against overload currents
