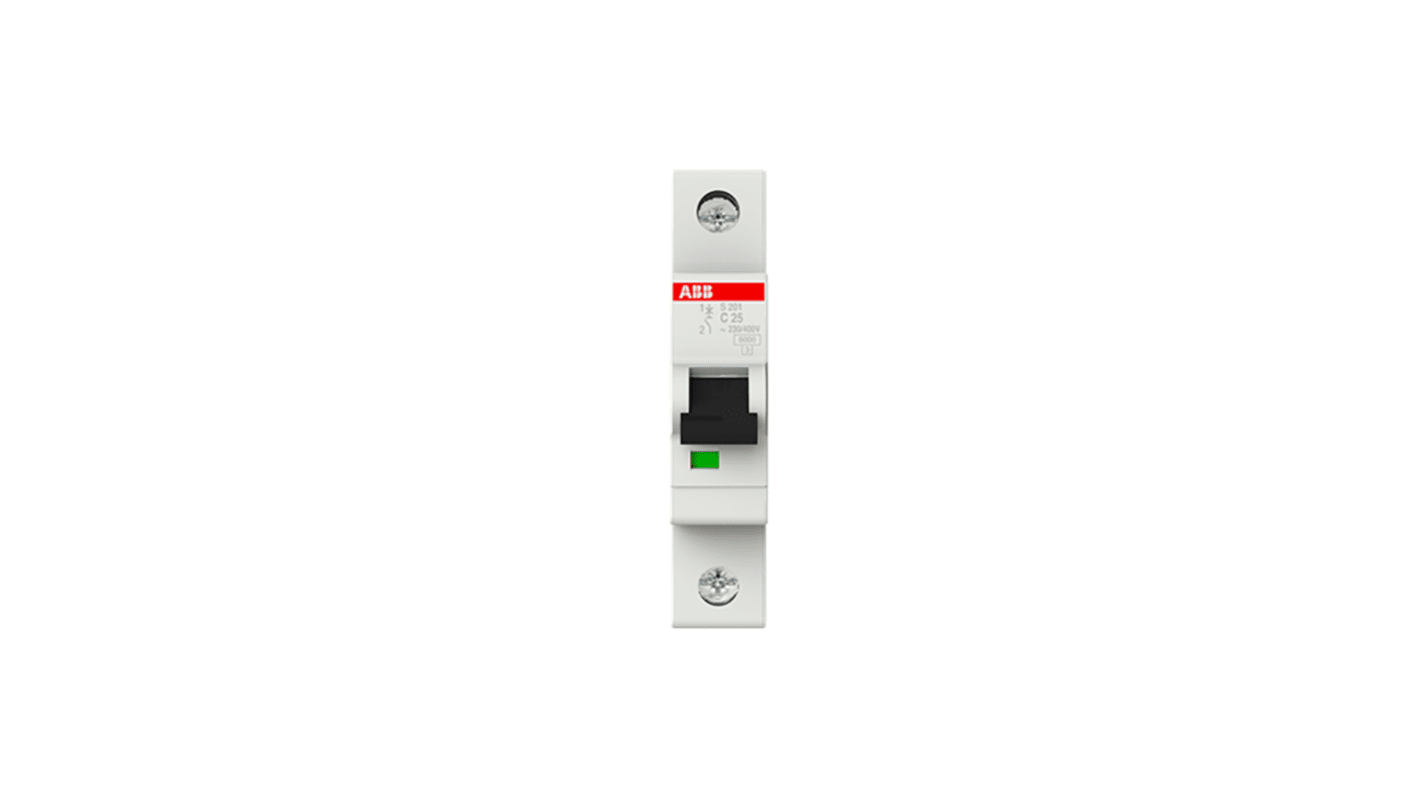

ABB System Pro M Compact S200 MCB, 1P, 25A Curve C, 230V AC, 72V DC, 20 kA Breaking Capacity
- RS Stock No.:
- 191-9459
- Mfr. Part No.:
- 2CDS251001R0254 S201-C25
- Brand:
- ABB
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 191-9459
- Mfr. Part No.:
- 2CDS251001R0254 S201-C25
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 25A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 230 V, 400V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 20 kA | |
Range | System Pro M Compact | |
Series | S200 | |
Circuit Breaker Type | MCB | |
Length | 17.5mm | |
Width | 69mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Model Number | S201-C25 | |
Terminal Contact Type | Screw | |
Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 25A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V, 400V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 20 kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Circuit Breaker Type MCB | ||
Length 17.5mm | ||
Width 69mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Model Number S201-C25 | ||
Terminal Contact Type Screw | ||
Tripping Mechanism Thermal-Magnetic | ||
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 are suitable for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
