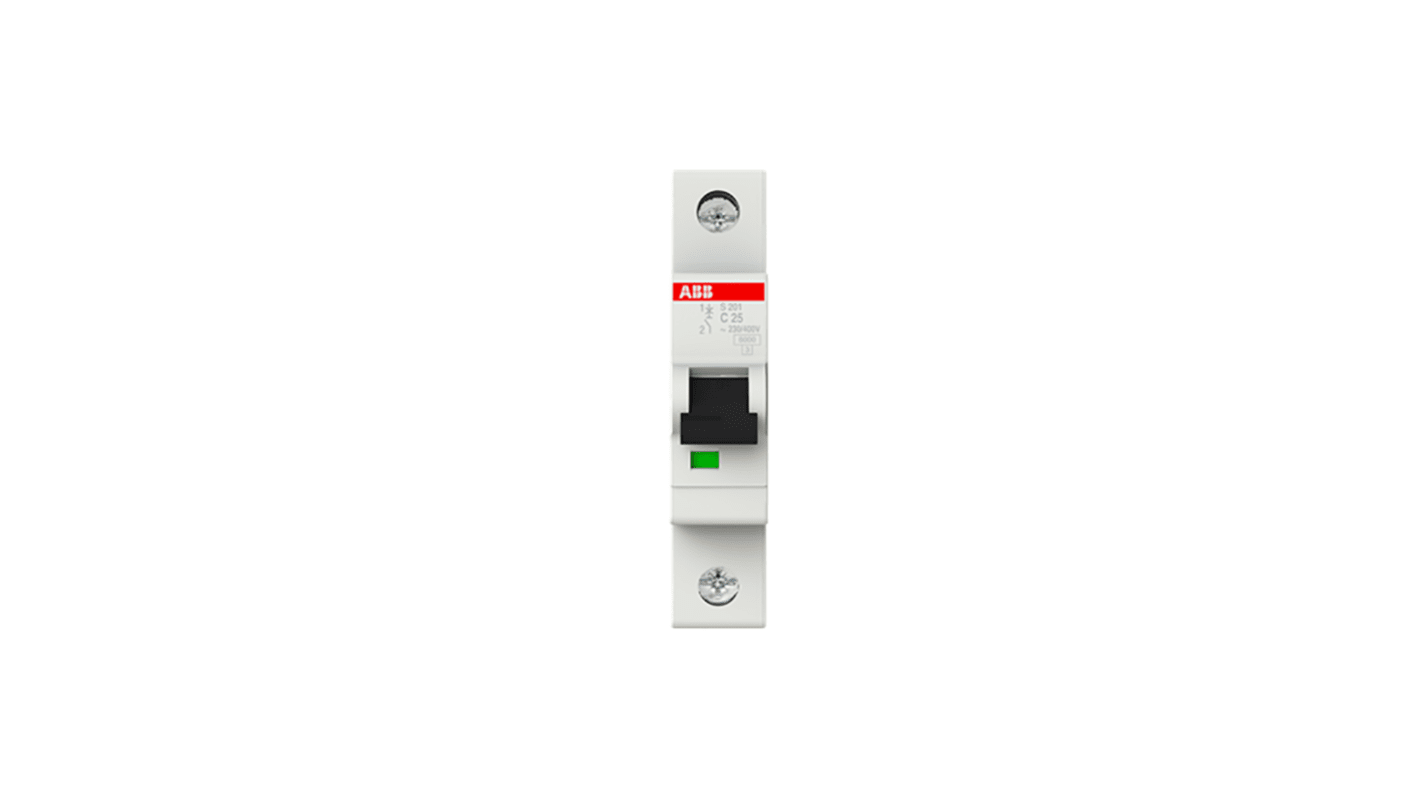

ABB System Pro M Compact S200 MCB, 1P, 25A Curve C, 230V AC, 72V DC, 20 kA Breaking Capacity
- RS Stock No.:
- 189-5703
- Mfr. Part No.:
- 352140
- Brand:
- ABB
Subtotal (1 unit)*
£27.05
(exc. VAT)
£32.46
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £27.05 |
*price indicative
- RS Stock No.:
- 189-5703
- Mfr. Part No.:
- 352140
- Brand:
- ABB
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1P | |
| Current Rating | 25A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V, 400V | |
| Rated DC Voltage | 72V | |
| Breaking Capacity at Maximum Voltage Rating | 20 kA | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Circuit Breaker Type | MCB | |
| Width | 69mm | |
| Length | 17.5mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 88mm | |
| Model Number | S201-C25 | |
| Tripping Mechanism | Thermal-Magnetic | |
| Terminal Contact Type | Screw | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1P | ||
Current Rating 25A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V, 400V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 20 kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Circuit Breaker Type MCB | ||
Width 69mm | ||
Length 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Model Number S201-C25 | ||
Tripping Mechanism Thermal-Magnetic | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- DE
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
