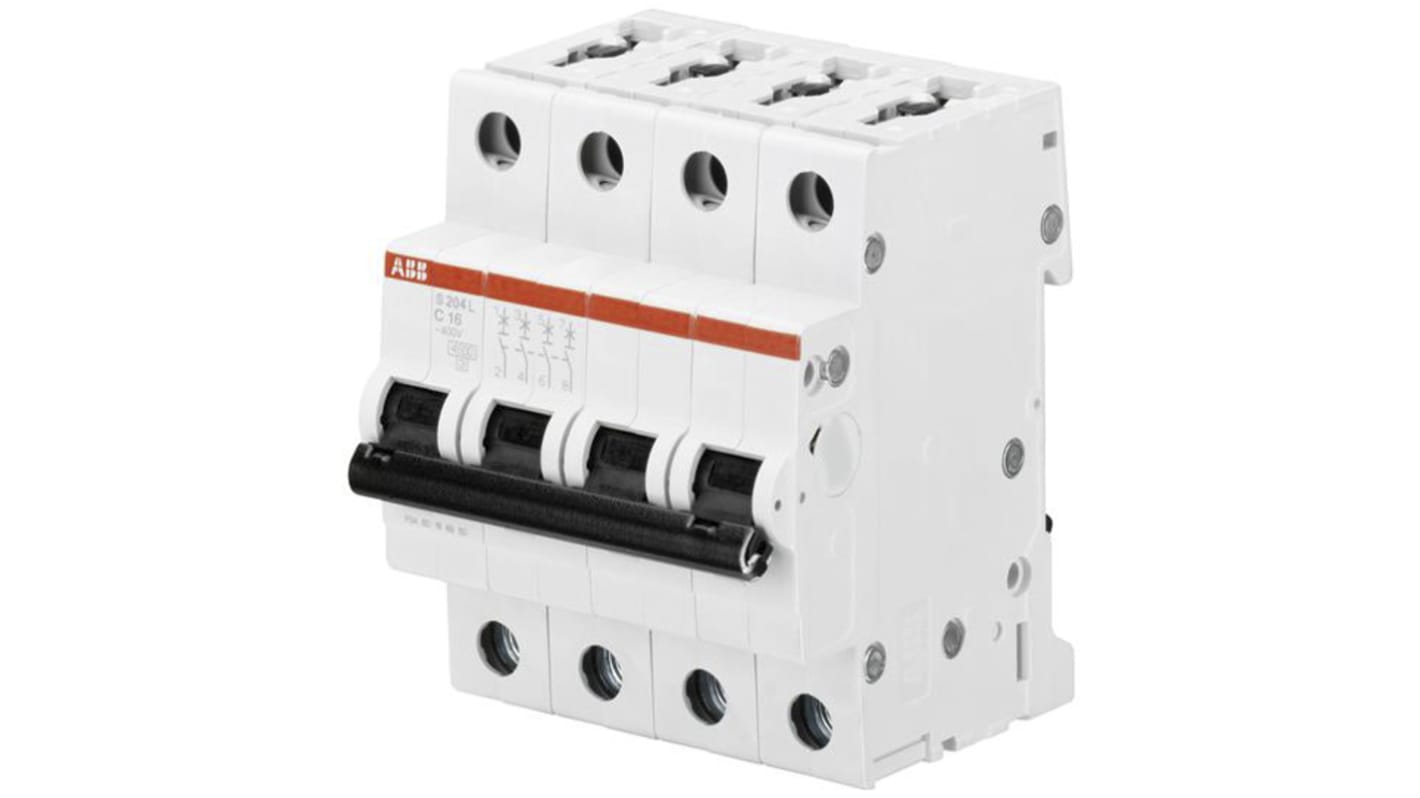

ABB System Pro M Compact System Pro M Compact Miniature Circuit Breaker, 4-Pole, 20A, Type C, 400V ac AC, 4.5 kA

View all MCBs

Subtotal (1 unit)*

£68.28

(exc. VAT)

£81.94

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2 unit(s), ready to ship from another location
Units
Per unit
1 +£68.28

*price indicative

RS Stock No.:
183-3667
Mfr. Part No.:
2CDS244701R0204
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

4

Product Type

Miniature Circuit Breaker

Current Rating

20A

Tripping Characteristics

Type C

Rated AC Voltage

400V ac

Breaking Capacity

4.5kA

Mount Type

DIN Rail

Range

System Pro M Compact

Series

System Pro M Compact

Terminal Type

Screw

IP Rating

IP20, IP40

Standards/Approvals

IEC/EN 60898-1

Width

70mm

Height

85mm

Depth

69mm

Reset Actuator Type

Toggle Switch

Tripping Mechanism

Electromagnetic, Thermomagnetic

COO (Country of Origin):
DE

ABB S200L Series MCB, 20A Current Rating , 400V Rated AC Voltage - 2CDS244701R0204


This MCB is designed for robust electrical protection. With a Compact design of 70mm in width and 69mm in depth, it features a 20A current rating and operates at a rated voltage of 400V. Additionally, it comes with a resilient breaking capacity of 6 kA. Utilising a DIN rail mount style, this circuit breaker ensures optimal safety in diverse applications.

Features & Benefits


• Designed for four poles to enhance electrical safety
• Provides Type C characteristics for optimal tripping behaviour
• Features screw terminals for secure electrical connections
• Compatible with the System Pro M Compact for versatile use

Applications


• Used for circuit protection in commercial installations
• Ideal for residential electrical systems requiring multiple connections
• Utilised in industrial systems needing reliable overload protection
• Suitable for scenarios involving electric motor circuits

How does this MCB perform under varying environmental conditions?


It operates efficiently in ambient temperatures ranging from -25 to +55 °C, making it suitable for a wide range of settings.

How often can it endure electrical cycling?


The device is rated for 20,000 electrical cycles, offering longevity and consistent performance throughout its service life.

What is the significance of the breaking capacity rating?


A 6 kA breaking capacity indicates its Ability to safely interrupt fault currents, protecting both the circuit and connected devices from damage.
